Figure 15. Microsd Card Organization - STMicroelectronics STM32100E-EVAL User Manual

UM1011
The SD Card memory is organized in two subdirectories:
●
STFILES: this folder contains all required demo media files (icons, wave and slides).
User files located in this folder cannot be handled by the demonstration; only default
files are managed. The STFILES directory and its internal files are mandatory for
demonstration startup.
●
USER: this is a user folder. You can add here your 16-bit bitmap images (320x240) and
waves. This folder is used only by the Image Viewer and Wave Player submenus. For
more details on the different files properties, please refer to
Viewer submenu

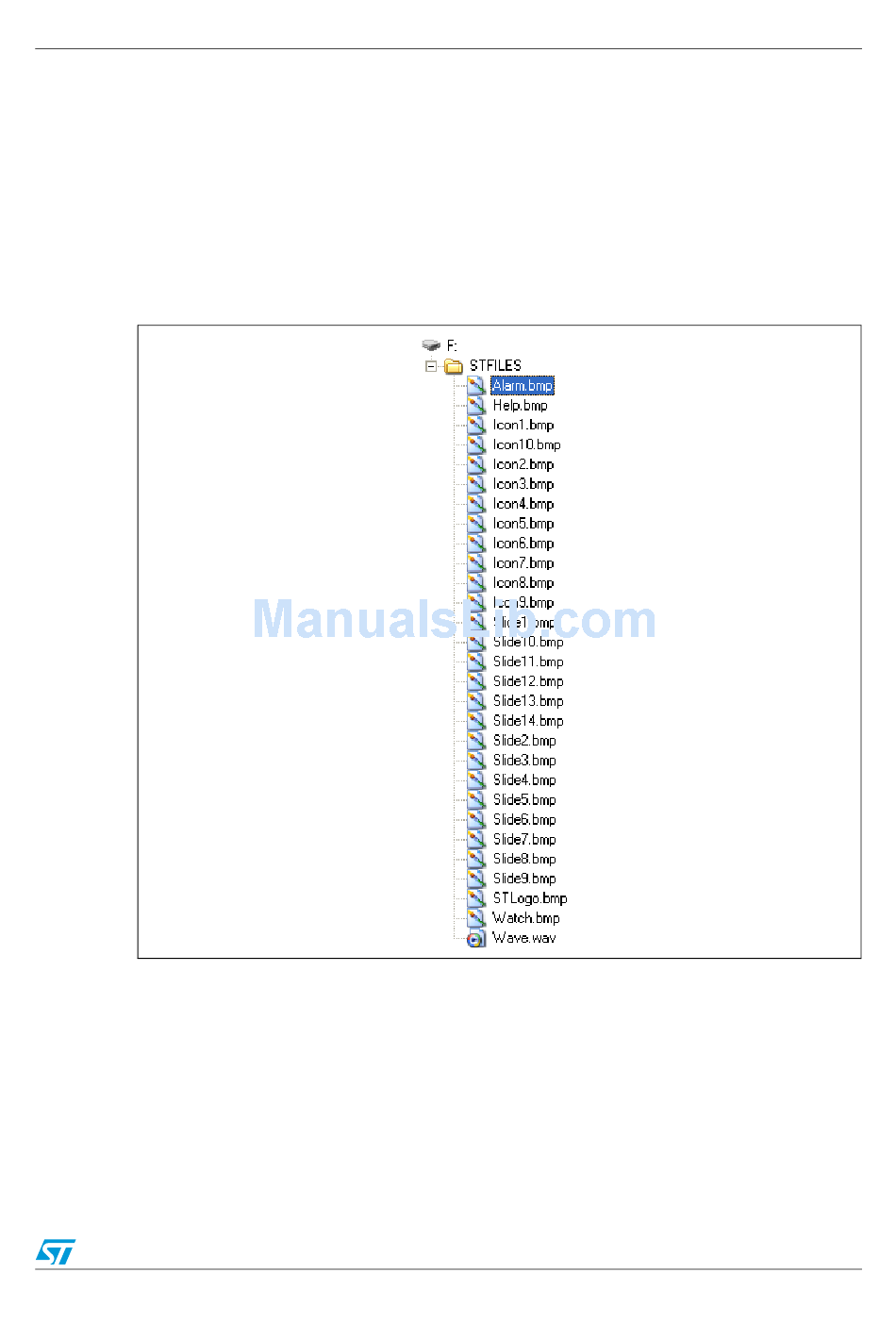

Figure 15. MicroSD Card organization

At the main menu and at any point of these applications (Product Presentation, Image
Viewer and Wave Player), if the SD is removed, the demonstration stops and the message
shown in
message shown in
and Section 2.7.4: Wave Player
Figure 16 is displayed on the LCD screen. For the others applications, the
Figure 16 is displayed when the user exits the current application.
