Installation and
Operation
The topics covered in this section are:
•
•
•
Rear Panel Features
* See first NOTE, below.

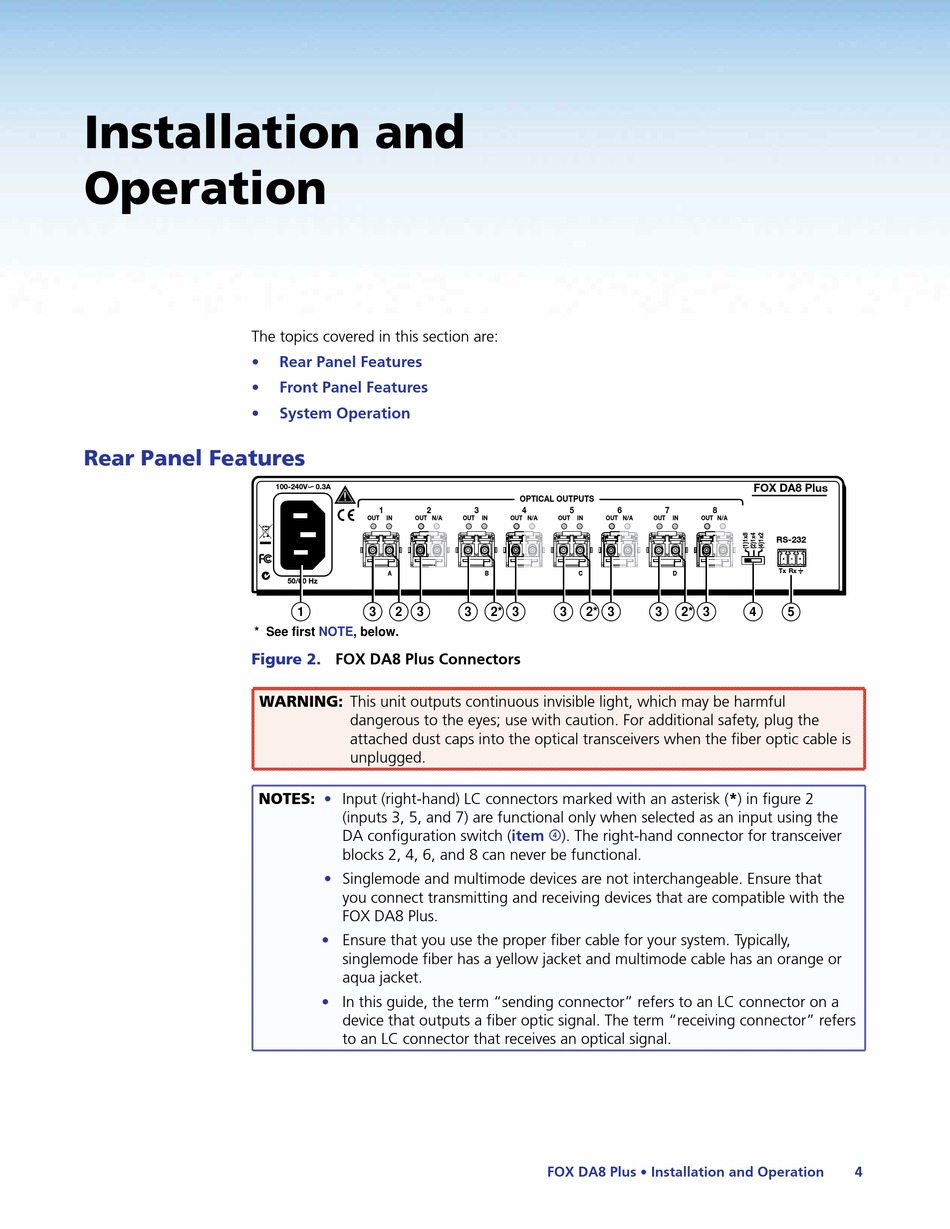

Figure 2.
WARNING: This unit outputs continuous invisible light, which may be harmful
NOTES:
Rear Panel Features
Front Panel Features
System Operation
100-240V
0.3A
1
2
OUT
IN
OUT N/A
A
50/60 Hz
1
3
2
3
FOX DA8 Plus Connectors
dangerous to the eyes; use with caution. For additional safety, plug the
attached dust caps into the optical transceivers when the fiber optic cable is
unplugged.
•
Input (right-hand) LC connectors marked with an asterisk (*) in figure 2
(inputs 3, 5, and 7) are functional only when selected as an input using the
DA configuration switch
blocks 2, 4, 6, and 8 can never be functional.
•
Singlemode and multimode devices are not interchangeable. Ensure that
you connect transmitting and receiving devices that are compatible with the
FOX DA8 Plus.
•
Ensure that you use the proper fiber cable for your system. Typically,
singlemode fiber has a yellow jacket and multimode cable has an orange or
aqua jacket.
•
In this guide, the term "sending connector" refers to an LC connector on a
device that outputs a fiber optic signal. The term "receiving connector" refers
to an LC connector that receives an optical signal.
OPTICAL OUTPUTS
3
4
5
6
OUT
IN
OUT N/A
OUT
IN
OUT N/A
B
C
3
2*
3
3
2*
3
(item
d). The right-hand connector for transceiver
FOX DA8 Plus • Installation and Operation
FOX DA8 Plus
7
8
OUT
IN
OUT N/A
RS-232
Tx Rx
D
3
2*
3
4
5
4
