Summary of Contents for Extron electronics FOX DA8 Plus
Page 1

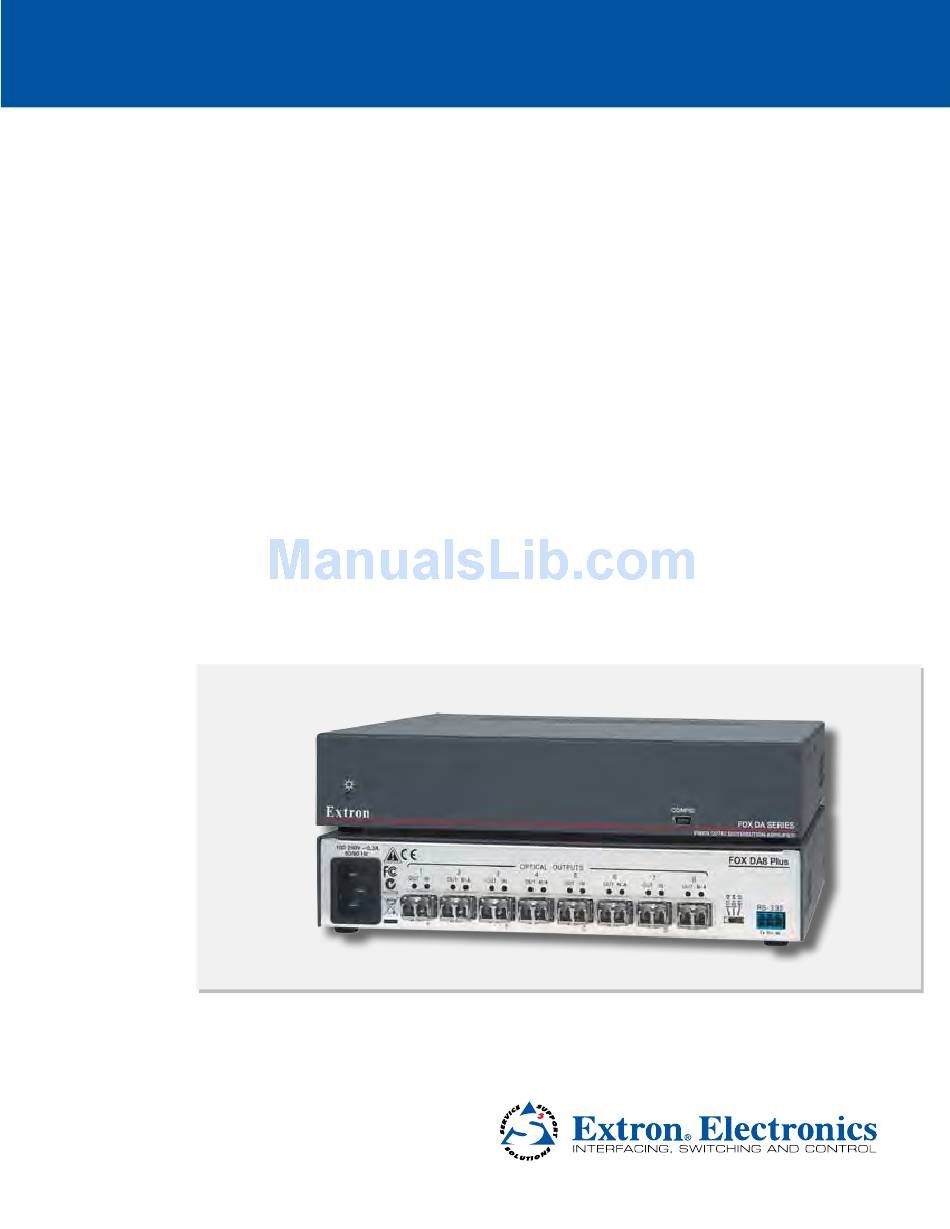

User Guide Distribution Amplifiers FOX DA8 Plus Eight Output Fiber Optic Distribution Amplifier 68-2145-01 Rev. B 07 12...
Page 2
Safety Instructions • English Warning Power sources • This equipment should be operated only from the power source indicated on the product. This This symbol is intended to alert the user of important operating and mainte- equipment is intended to be used with a main power system with a grounded (neutral) conductor. The third nance (servicing) instructions in the literature provided with the equipment.
FCC Class A Notice This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. The Class A limits provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
Introduction ..........Reference Information ......About this Guide ..........1 Part Numbers and Accessories ......19 About the FOX DA8 Plus ........2 FOX DA8 Plus Part Numbers ....... 19 Features ............3 Included Parts ..........19 Optional Accessories ........19 Compatible Equipment ......
(DAs). The FOX DA8 Plus is available in two transmission modes that define the transmission range of the DA: FOX DA8 Plus MM — A 1-input, 8-output multimode DA, with a range of up to 2 km •...
The serial component of the signal is for applications such as projector control and transmitter control of the receiver. The FOX DA8 Plus actively splits the proprietary signal into eight identical optical signals and outputs the signals on fiber optic cables to compatible receivers.
1900x1200 at 60 Hz. Higher resolutions can be transmitted, but with some loss of video quality. Optical input and outputs — The FOX DA8 Plus inputs and outputs the optical signal on LC video connectors. Active and individually isolated outputs — The FOX DA8 Plus uses active signal splitting to maintain equal transmitter power to all outputs, maximizing distance capabilities by ensuring full availability of optical loss budget for each output.
In this guide, the term “sending connector” refers to an LC connector on a device that outputs a fiber optic signal. The term “receiving connector” refers to an LC connector that receives an optical signal. FOX DA8 Plus • Installation and Operation...
Page 11
AC power connector — Plug a standard IEC power cord into this connector to connect the FOX DA8 Plus to a 100 VAC to 240 VAC, 50-60 Hz power source. Transmitter Input connectors and LEDs — OPTICAL NOTE: Input LC connectors (on the right) marked with an...
Page 12
This port is RS-232 only, with the following protocols: • 9600 baud • no parity • 8 data bits • 1 stop bit • no flow control FOX DA8 Plus • Installation and Operation...
USB B port. System Operation After the transmitter, the FOX DA8 Plus, the receivers, and their connected devices are powered up, the system is fully operational. If any problems are encountered, ensure all traditional and fiber cables are routed and connected properly: •...
Outputs 7 and 8 Outputs 7 and 8 Outputs 3 and 4 • • • Rx Rx Rx Rx Rx Rx Rx Rx Group: A Figure 5. DA Configurations Based on Switch Position FOX DA8 Plus • Installation and Operation...
FOX Extenders Program Remote Control Ports The FOX DA8 Plus has two ports that can be connected to a host device such as a computer running the Extron DataViewer utility or the HyperTerminal utility, an RS-232 capable PDA, or a control system. These ports make remote control of the DA possible. The ports are: The rear panel RS-232 port —...
(CR/LF = ] ), which signals the end of the response character string. A string is one or more characters. Start-up Message The FOX DA8 Plus issues the following copyright message when it first powers on. Vx.xx the firmware version number, is the part number.
V01X08 shows the number of available Information request inputs (1) and outputs (8) for this product. A00X00 has no meaning for this product. Show firmware version 1.23 Example: The factory-installed controller firmware version is 1.23 (sample value only). FOX DA8 Plus • Remote Control...
Show DA configuration switch position FOX Extenders Control Program The Extron FOX Extenders Control Program, which communicates with the FOX DA8 Plus via the rear panel RS-232 port or the front panel Configuration port of the unit, provides an easy way to control the DA mute function and set reclocker rates for the inputs.
“Simple Instruction Set Control” section. NOTE: You may need to repeat these steps if you subsequently connect the DA to a different USB port on the same computer. FOX DA8 Plus • Remote Control...
— The Com port to which your DA is connected RS-232 tab • — USB tab Extron USB Device_0 Click . The FOX Extenders Control Program window appears (see figure 10, Connect below. Figure 10. FOX Extenders Program Window FOX DA8 Plus • Remote Control...
The name, version, release date, and size shown are sample values only. Figure 11. Location of Firmware Upgrade Files Select the appropriate firmware file (FOX DA8 Plus) and click Download Enter the requested personal information and then click to copy the firmware Download to your computer.
Page 22
Extron website and starts the Extron Installation Program to extract the firmware file. NOTE: The name, version and file size shown are sample values only. Folder where firmware is installed Figure 12. Downloading Firmware Upgrade Files FOX DA8 Plus • Remote Control...
Page 23
Update Firmware button ( ). The Extron Firmware Loader appears (see figure 13, below). Figure 13. Extron Firmware Loader Window and File Menu Select the FOX DA8 Plus and click > . The Choose Firmware File screen File Open appears (see figure 14, below).
Page 24
Once the status bars have progressed from 100% , and Status is listed as Completed , the firmware loader utility resets the DA. Figure 15. Firmware Loader Screen Click Exit to close the Firmware Loader. FOX DA8 Plus • Remote Control...
Reference Information This section identifies the part numbers for the FOX DA8 Plus and suggested accessories, and provides mounting instructions. Topics that are covered include: Part Numbers and Accessories • • Mounting the Unit Part Numbers and Accessories FOX DA8 Plus Part Numbers...
Compatible Equipment The FOX DA8 Plus is compatible with the following Extron fiber optic devices: NOTE: Ensure that you match the transmission mode, singlemode or multimode, among all connected devices. Fiber Optic RGB Video Models Part Number FOX 500 (RGB) Tx/Rx (set and individual units )
MBD 129 — Through desk mounting kit (part number 70-077-02) • Mount the FOX DA8 Plus in accordance with the instructions provided with the mounting kit. Rack Mounting UL Guidelines The following Underwriters Laboratories (UL) guidelines pertain to the installation of the FOX DA8 Plus into a rack.
Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.
