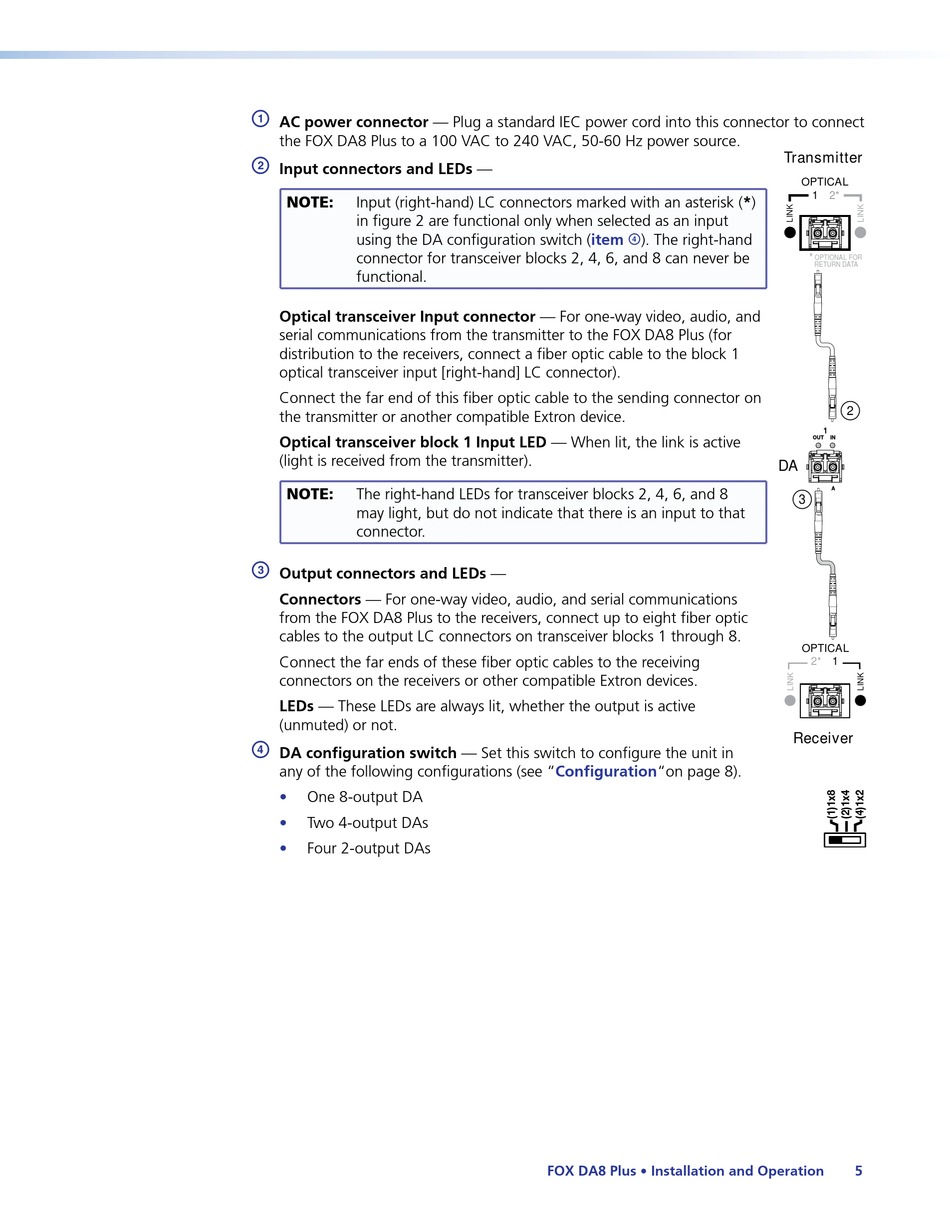

AC power connector — Plug a standard IEC power cord into this connector to connect
the FOX DA8 Plus to a 100 VAC to 240 VAC, 50-60 Hz power source.
b
Input connectors and LEDs —
NOTE:
Input (right-hand) LC connectors marked with an asterisk (*)
in figure 2 are functional only when selected as an input
using the DA configuration switch
connector for transceiver blocks 2, 4, 6, and 8 can never be
functional.
Optical transceiver Input connector — For one-way video, audio, and
serial communications from the transmitter to the FOX DA8 Plus (for
distribution to the receivers, connect a fiber optic cable to the block 1
optical transceiver input [right-hand] LC connector).
Connect the far end of this fiber optic cable to the sending connector on
the transmitter or another compatible Extron device.
Optical transceiver block 1 Input LED — When lit, the link is active
(light is received from the transmitter).
NOTE: The right-hand LEDs for transceiver blocks 2, 4, 6, and 8
may light, but do not indicate that there is an input to that
connector.
c
Output connectors and LEDs —
Connectors — For one-way video, audio, and serial communications
from the FOX DA8 Plus to the receivers, connect up to eight fiber optic
cables to the output LC connectors on transceiver blocks 1 through 8.
Connect the far ends of these fiber optic cables to the receiving
connectors on the receivers or other compatible Extron devices.
LEDs — These LEDs are always lit, whether the output is active
(unmuted) or not.
d
DA configuration switch — Set this switch to configure the unit in
any of the following configurations (see "Configuration"on page 8).
• One 8-output DA
• Two 4-output DAs
• Four 2-output DAs
(item d). The right-hand
FOX DA8 Plus • Installation and Operation
Transmitter
OPTICAL
1 2*
*
OPTIONAL FOR
RETURN DATA
2
1
OUT IN
DA
A
3
OPTICAL
2* 1
Receiver
5
