Summary of Contents for Extron electronics FOX DA8
Page 1
User Guide Distribution Amplifier FOX DA8 Eight Output Fiber Optic Distribution Amplifier 68-1461-01 Rev. B 05 11...
Page 2
Safety Instructions • English Warning Power sources • This equipment should be operated only from the power source indicated on the product. This This symbol is intended to alert the user of important operating and mainte- equipment is intended to be used with a main power system with a grounded (neutral) conductor. The third nance (servicing) instructions in the literature provided with the equipment.
Contents Introduction Specifications ............1 ............14 About this Guide ..........1 About the FOX DA8 ..........2 Reference Information ........16 Features .............. 3 Part Numbers ............ 16 FOX DA8 Part Numbers ......... 16 Installation and Operation ........4 Included Parts ..........
(DAs). The DA8 is available in two transmission modes, which define the transmission range of the DA: FOX DA8 MM — A 1-input, 8-output multimode DA, with a range of up to 2000 m (6561 feet) on the input and each output FOX DA8 SM —...

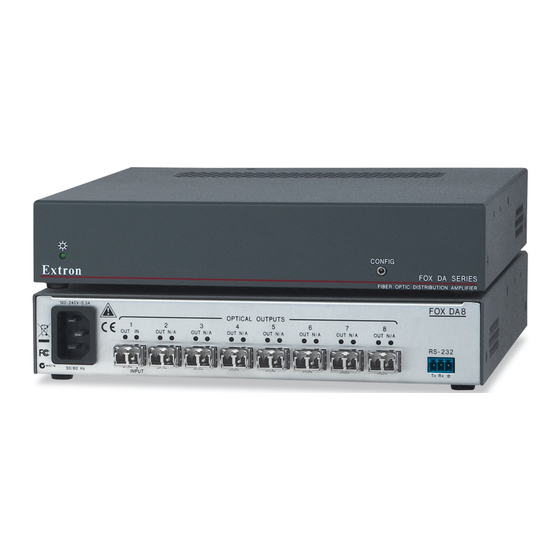

The Extron FOX DA8 product family (see performance fiber optic distribution amplifiers. The FOX DA8 accepts a proprietary input optical signal from a compatible Extron fiber optic transmitter (Tx). The optical signal can include video, audio, and one-way (transmitter-to- receiver [Rx]) RS-232 communications.
1600x1200 at 60 Hz. Higher resolutions can be transmitted, but with some loss of video quality. Optical input and outputs — The FOX DA8 inputs and outputs the optical signal on LC video connectors. Active and individually isolated outputs — The FOX DA8 uses active signal splitting to maintain equal transmitter power to all outputs, maximizing distance capabilities by ensuring full availability of optical loss budget for each output.
LC connector that receives an optical signal. AC power connector — Plug a standard IEC power cord into this connector to connect the FOX DA8 to a 100 VAC to 240 VAC, 50 or 60 Hz power source. Extron FOX DA8 • Installation and Operation...
Page 11
Optical transceiver block 1 Input connector — For one-way video, audio, and serial communications from the transmitter to the FOX DA8 (for distribution to the receivers, connect a fiber optic cable to the block 1 optical transceiver input (right-hand) LC connector.
NOTE: The maximum distance from the FOX DA8 to the controlling device can vary up to 200 feet (61 m). Factors such as cable gauge, baud rates, environment, and output levels (from the unit and the controlling device) all affect transmission distance.
System Operation After the transmitter, the FOX DA8, the receivers, and their connected devices are powered up, the system is fully operational. If any problems are encountered, ensure all traditional and fiber cables are routed and connected properly: Ensure that the video source and the displays are properly connected to the transmitter, the FOX DA8, and the receivers, and that all equipment has power applied.
FOX Extender Program Serial Ports The FOX DA8 has two serial ports that can be connected to a host device such as a computer running the HyperTerminal utility, an RS-232 capable PDA, or a control system. These ports make serial control of the DA8 possible. The serial ports are:...
0 = none, 1 = multimode, 2 = singlemode. FOX Extender Program The Extron FOX Extender program, which communicates with the FOX DA8 via the rear panel RS-232 port or front panel Config port of the unit, provides an easy way to operate the DA8.
Connect a Windows ® -based computer to either of the DA8 serial ports (see “Installation and Operation”). Click Start > Programs > Extron Electronics > FOX Extender WCP > FOX Extender WCP window appears (see figure Communication Setup Figure 9.
(*.exe) files to self-extract the firmware files. Connect a Windows-based computer to the front panel Configuration port of the unit to be updated (see “Installation and Operation”). “Starting the Program”). Start the FOX Extender program (see Extron FOX DA8 • Remote Control...
Page 19
This process could take several minutes. Please wait.. ” and then displays the status of the upload. When the Firmware Loader reports, “ ”, click the Transfer complete! Exit button. Cycle the power for the FOX DA. Extron FOX DA8 • Remote Control...
Serial control pin configurations ..Captive screw connector: 1 = TX, 2 = RX, 3 = GND Mini stereo jack: tip = TX, ring = RX, sleeve = GND Program control ......Extron control/configuration program for Windows ® Extron Simple Instruction Set (SIS ™ Extron FOX DA8 • Specifications...
Page 21
EMI/EMC......CE, C-tick, FCC Class A, FDA8 Class 1, ICES, VCCI, MTBF ..........30,000 hours Warranty ........3 years parts and labor NOTES: All nominal levels are at ±10%. Specifications are subject to change without notice. Extron FOX DA8 • Specifications...
Compatible Equipment The FOX DA8 is compatible with the Extron fiber optic receivers and matrix switchers shown in the following tables: Fiber Optic RGB Video Models Part Number FOX 500 (RGB) Tx/Rx SM (set) 60-746-02 FOX 500 (RGB) Tx SM (individual unit)
The 1U high, half-rack width unit can be placed on a tabletop, mounted on a rack shelf, or mounted under or through a desk or other furniture. To rack mount the FOX DA8, see the instructions provided with the rack mounting kit (see...
Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.
