3.2 Temperature Control—Single Source Cooling (No Extra Cooling Coil)
3.2.1

Temperature Proportional Band

The control uses the temperature proportional band to determine which operation to perform (cool-
ing/heating) and how much capacity to provide. The Temperature Proportional Band is a user-defined
range that is divided into two equal parts for cooling and heating. The Temperature Setpoint is
between these two equal parts.
An optional Temperature Deadband range can be defined, which is equally divided on either side of
the setpoint and separates the two halves of the proportional band. Figure 12 illustrates how the
temperature proportional band is evenly divided on either side of the temperature setpoint, with and
without a deadband.

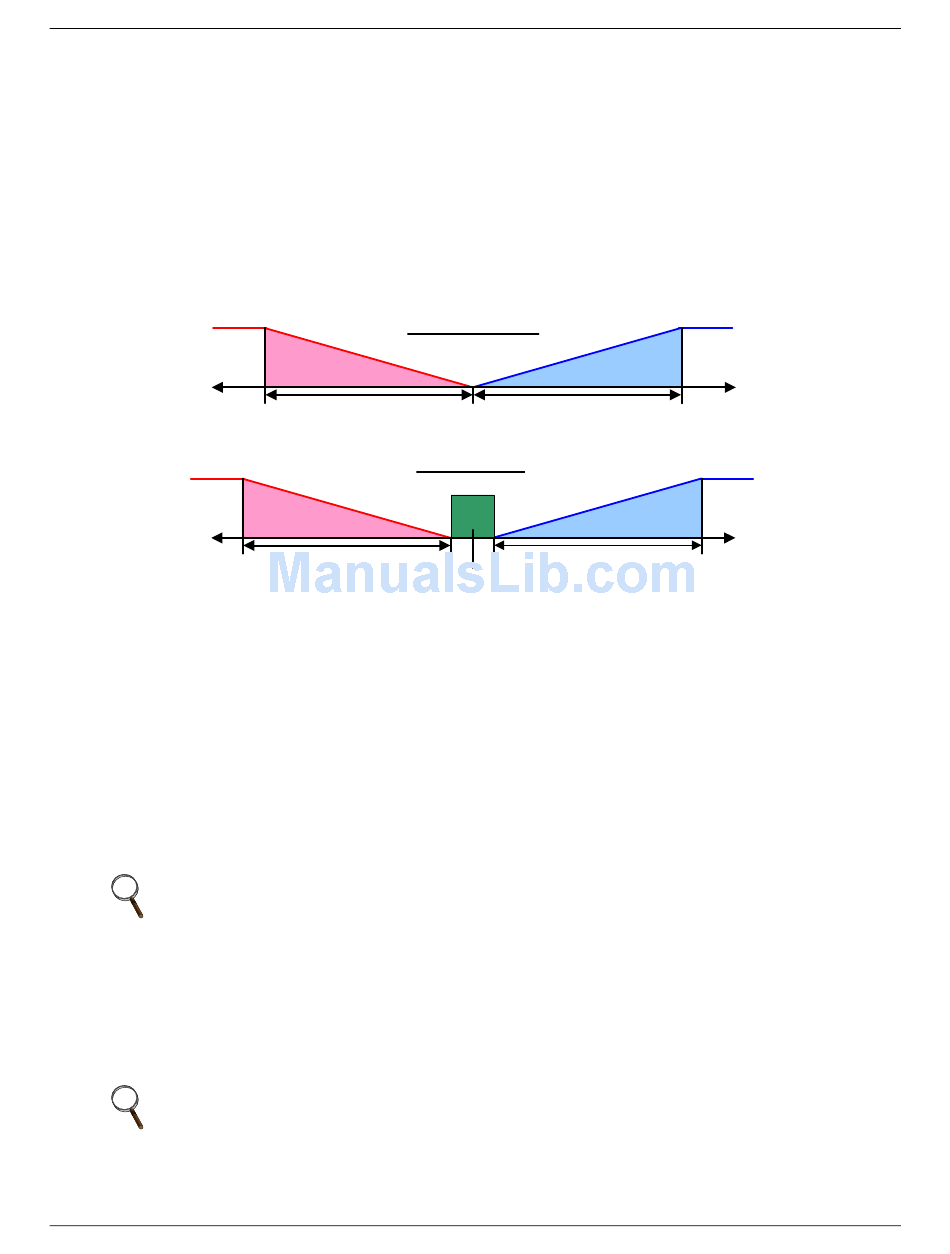

Figure 12 Temperature proportional band

- Temp
- Temp
- 100%
Heating
The control works the same for both supplyor return air control. When air temperature deviates from
the setpoint, the control will bring on cooling or heating. If the actual air temperature increases, the
control calls for 0% (none) to 100% (full) cooling capacity based on how much the temperature exceeds
the setpoint. If the return air temperature decreases, the control calls for 0% to -100% (none to full)
heating capacity based on how far the temperature is below the setpoint.
When the return air temperature reaches the end of the proportional band, either 100% or -100%, full
cooling or full heating capacity is provided. No operation is performed when a 0% call is calculated or
the temperature is within the deadband. The control varies the call for cooling and heating in 1%
increments as the air temperature moves through the proportional band halves.
The deadband range is used to widen the setpoint. When the air temperature falls within the dead-
band, the control operates the same as if the temperature equaled the setpoint exactly. This setting
helps maximize component life by preventing excessive component cycling.
NOTE
The temperature deadband prevents small temperature changes from activating compressors
and valves.
The Temperature Proportional Band and Temperature Deadband parameters are in the Service
menu under the Setpoints submenu. The Temperature Setpoint parameter is in both the User Menu
and Service Menu under Setpoints.
There is a parameter AutoSet Enable (Service Menu, Setpoints), which automatically sets the propor-
tional bands for temperature and humidity, and both the integration time factors according to the
type of unit (chilled water, single or dual compressor).
NOTE
Before the proportional or integral setpoints can be changed, the Auto Set Enable must be
changed to NO.
Without Deadband
Heating
½ Proportional Band
- 100 %
Heating
Heating
½ Proportional Band
½ Proportional Band
0%
Setpoint
With Deadband
Dead-
band
½ Proportional Band
0% 0%
Setpoint
18
Cooling
+ Temp
+ 100%
Cooling
Cooling
+ Temp
+ 100%
Cooling
Operation
