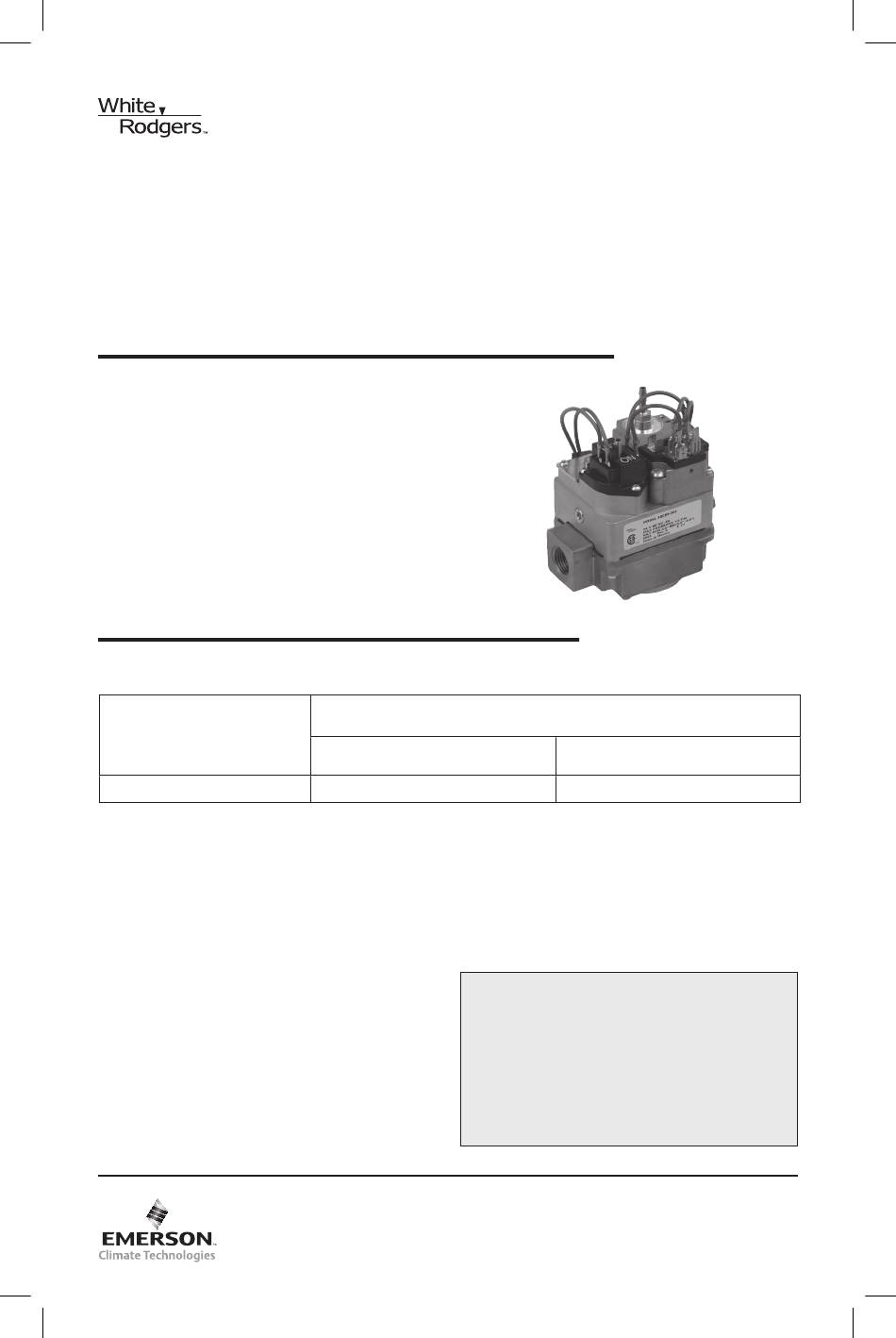

Emerson White Rodgers 36C94-303 Installation Instructions Manual

FAILURE TO READ AND FOLLOW ALL INSTRUCTIONS CARE-
FULLY BEFORE INSTALLING OR OPERATING THIS CONTROL
COULD CAUSE PERSONAL INJURY AND/OR PROPERTY
DAMAGE.
36C94-303 is a direct replacement for 36C94-302,
36E93-301, 36E93-302, 36E93-303 and 36E93-304.
The 36C94-303 combination gas valve is designed
for intermittent ignition system applications. The
valve is equipped with a redundant solenoid valve
that controls gas flow to the pilot and main burners, a
main valve that controls gas flow to the main burner,
a pressure regulator to maintain a constant outlet
pressure, integral gas pressure switch and a two
position on/off switch for electrical shutoff.
Pipe Size
Available (inches)
1/2" x 3/4" NPT
Type of Gas: Natural gas
LP gas (use conversion kit)
Pressure Regulator Adjustment Range:
Nat. Gas – 2.5 to 5.0" W.C.
L.P. Gas – 7.0 to 12" W.C.
Ambient Temperature:
–40 to +175°F (–40 to 79°C)
Delay-Opening Combination Gas Valve
INSTALLATION INSTRUCTIONS
PIPE SIZE/CAPACITIES
Capacity (BTU/hr) at 1" W.C.
pressure drop across valve
AGA Std. Nat. Gas
(1,000 btu/ cu. ft.)
230,000
Pressure Rating: 14" W.C. (1/2 PSI) max.
Voltage: 24 VAC
Frequency: 60 Hz
Current: 0.6 A
Description ................................................ 1

Specifications ............................................. 1

Precautions ................................................ 3
Installation .................................................. 4
Lighting Instructions ................................... 7
French Language ....................................... 9
Spanish Language ........................................17
www.white-rodgers.com
www.emersonclimate.com
36C94-303
DESCRIPTION
SPECIFICATIONS
LP. Gas
(2,500 btu/cu. ft.)
370,000
CONTENTS
PART NO. 37-7086C
Replaces 37-7086B
1305
