3-3 PLL CIRCUITS

3-3-1 GENERAL
The PLL circuits generate a reference frequency (32.000
MHz); 1st LO frequencies (64.485–94.455 MHz); 2nd LO
frequency (64 MHz), 3rd LO frequency (433.000 kHz).
The 1st LO PLL adopts a mixer-less dual loop PLL system.
The BFO uses a DDS and a 2nd LO as a fixed frequency
double that the crystal oscillator.
3-3-2 1ST LO PLL (PLL UNIT)
The 1st LO PLL contains a main and reference loop as a
dual loop system.
The reference loop generates an approximate 10.5 MHz fre-
quency using a DDS circuit, and the main loop generates a
64.485 to 94.455 MHz frequency using the reference loop
frequency.
(1) REFERENCE LOOP PLL
The oscillated signal at the reference VCO (Q5301, D5301)
is amplified at the amplifiers (Q5302, Q5351) and is then
applied to the DDS IC (IC5101, pin 46). The signal is then
divided and detected on phase with the DDS generated fre-
quency.
The detected signal output from the DDS IC (pin 56) is con-
verted into DC voltage (lock voltage) at the loop filter
(R5136, R5146, C5112) and then fed back to the reference
VCO circuit (Q5301, D5301).
(2) MAIN LOOP PLL
The oscillated signal at one of the main loop VCOs (Q5521,
D5521, L5523) is amplified at the buffer amplifiers (Q5601,
Q5604) and is then applied to the PLL IC (IC5401, pin 6).
The signal is then divided and detected on phase with the
reference loop output frequency.

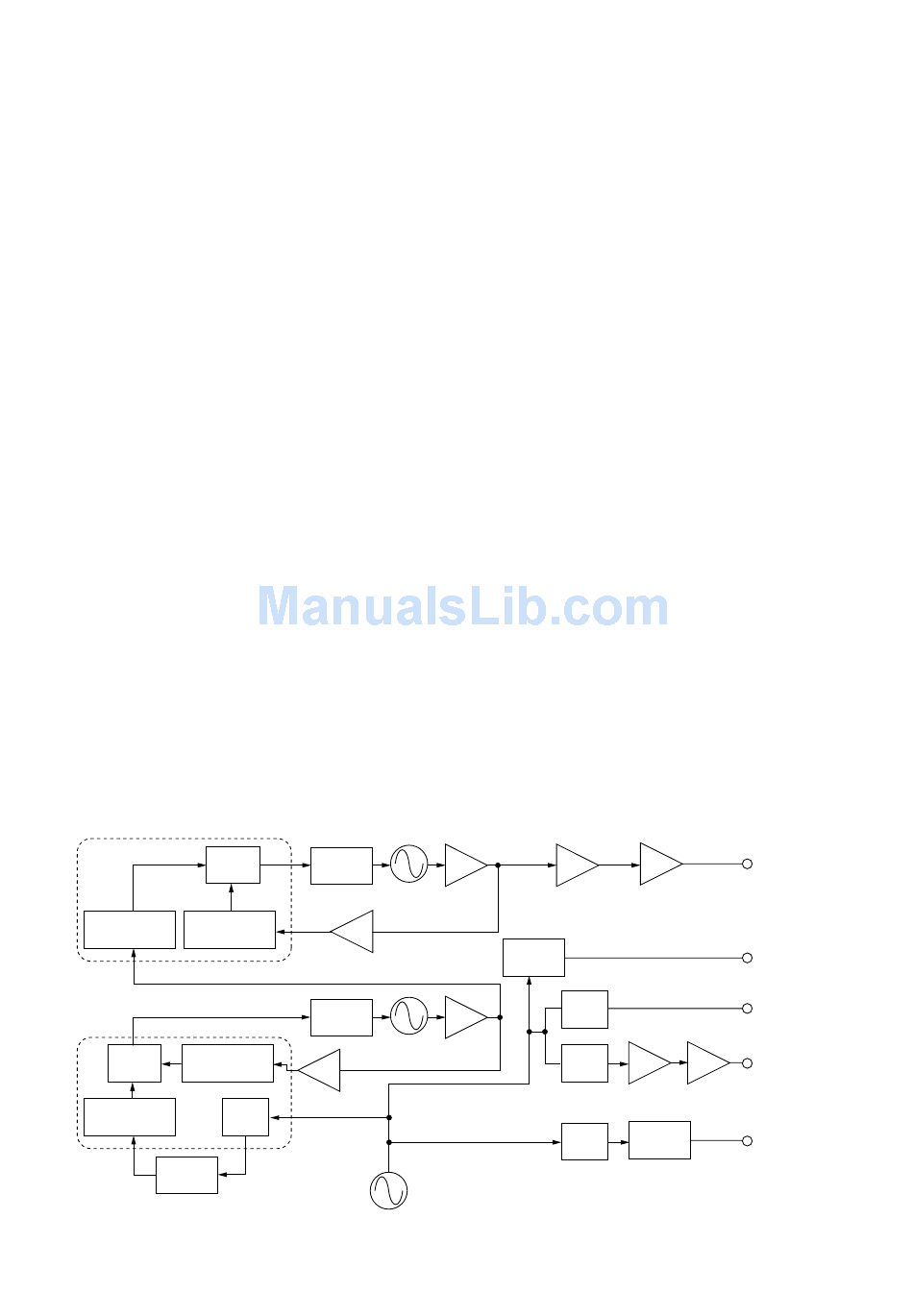

• PLL CIRCUIT
PLL IC (IC5401)
Phase
detector
Programmable Programmable
divider divider
DDS IC
(IC5101)
Programmable
Phase
divider
detector
Programmable
divider
D/A
convertor
MAIN loop VCO
Loop filter
Q5521,
D5521,
L5523
LO
Loop filter
Reference loop VCO
Q5301, D5301
AMP.
Q5351
DDS
Reference OSC.
X5251 (32 MHz)
The detected signal output from the PLL IC (pin 2) is con-
verted into a DC voltage (lock voltage) at the loop filter and
then fed back to one of the VCO circuits (Q5521, D5521,
L5523).
The oscillated signal from the buffer amplifier (Q5601) is
also applied to the MAIN unit as a 1st LO signal after being
amplified at LO (Q5602) and buffer (Q5603) amplifiers or
passed through the bandpass filter (L5602–L5604,
C5610–C5616).
3-3-3 2ND LO AND REFERENCE OSCILLATOR
CIRCUITS (PLL UNIT)
The reference oscillator (X5251, CR604) generates a 32.0
MHz frequency for the 2 DDS circuits as a system clock and
for the LO output. The oscillated signal is doubled at the
doubler circuit (Q5202) and the 64.0 MHz frequency is
picked up at the double tuned filter (L5203, L5204). The 64.0
MHz signal is applied to the RF circuit as a 2nd LO signal.
3-3-3 3RD LO CIRCUIT (PLL UNIT)
The DDS IC (IC5701) generates a 10-bit digital signal using
the 32 MHz system clock. The digital signal is converted into
an analog wave signal at the D/A converter (R5701–R5720).
The converted analog wave is passed through the bandpass
filter (L5781–L5783, C5781–C5785) and then applied to the
MAIN unit as the 3rd LO signal (433.000 kHz) via the atten-
uator (R5781–R5783).
Q5601 Q5602
Buff LO
Q5202
Doubler
Q5801
Q5302
DDS
Buff
DDS
Q5901
DDS
IC5701
3 - 6
Q5603
1st LO
Buff
(64—94 MHz)
2nd LO
(64 MHz)
DSC 2nd LO
(10.7103 MHz)
DSC 1st LO
Buff LO
(12.8875—
Q5882 Q5881
27.5045 MHz)
D/A 3rd LO
convertor (443 kHz)
