Icom IC-M802 Service Manual page 21
Mf/hf marine transceiver
Hide thumbs
Also See for IC-M802:
- Service manual (141 pages) ,
- Instruction manual (80 pages) ,
- Installing (22 pages)
Table of Contents
Advertisement

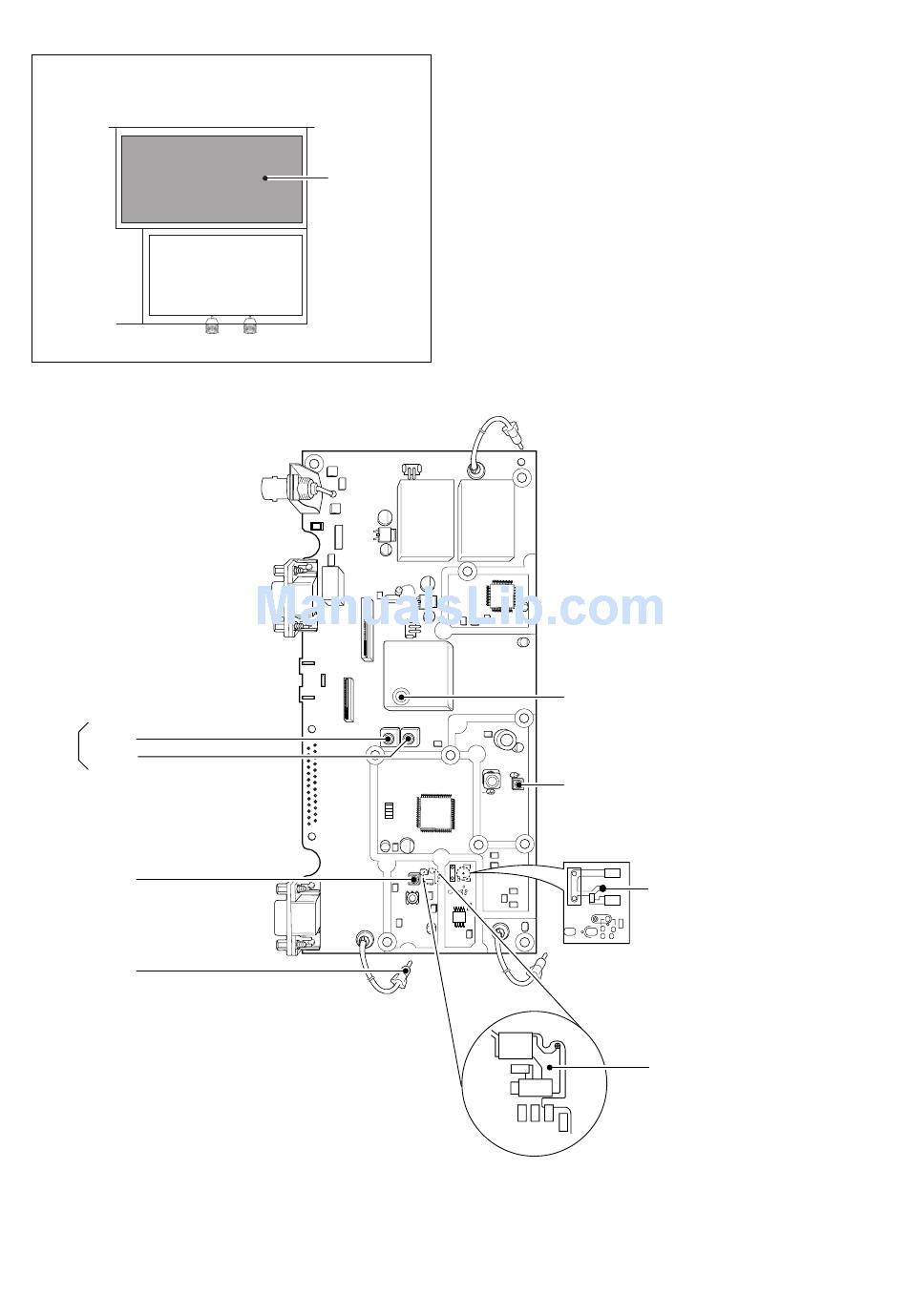

• IC-M802 BOTTOM VIEW
• PLL UNIT TOP VIEW
L5204
L5203
LPL lock voltage adjustment
C5305
LPL lock voltage adjustment
P5201
Reference frequency check point
PLL unit
4 - 4
X5251
Reference frequency adjustment
C5521
HPL lock voltage adjustment
CP5401
HPL lock voltage check point
CP5301
LPL lock voltage check point
