Filter Board - Icom IC-M802 Service Manual

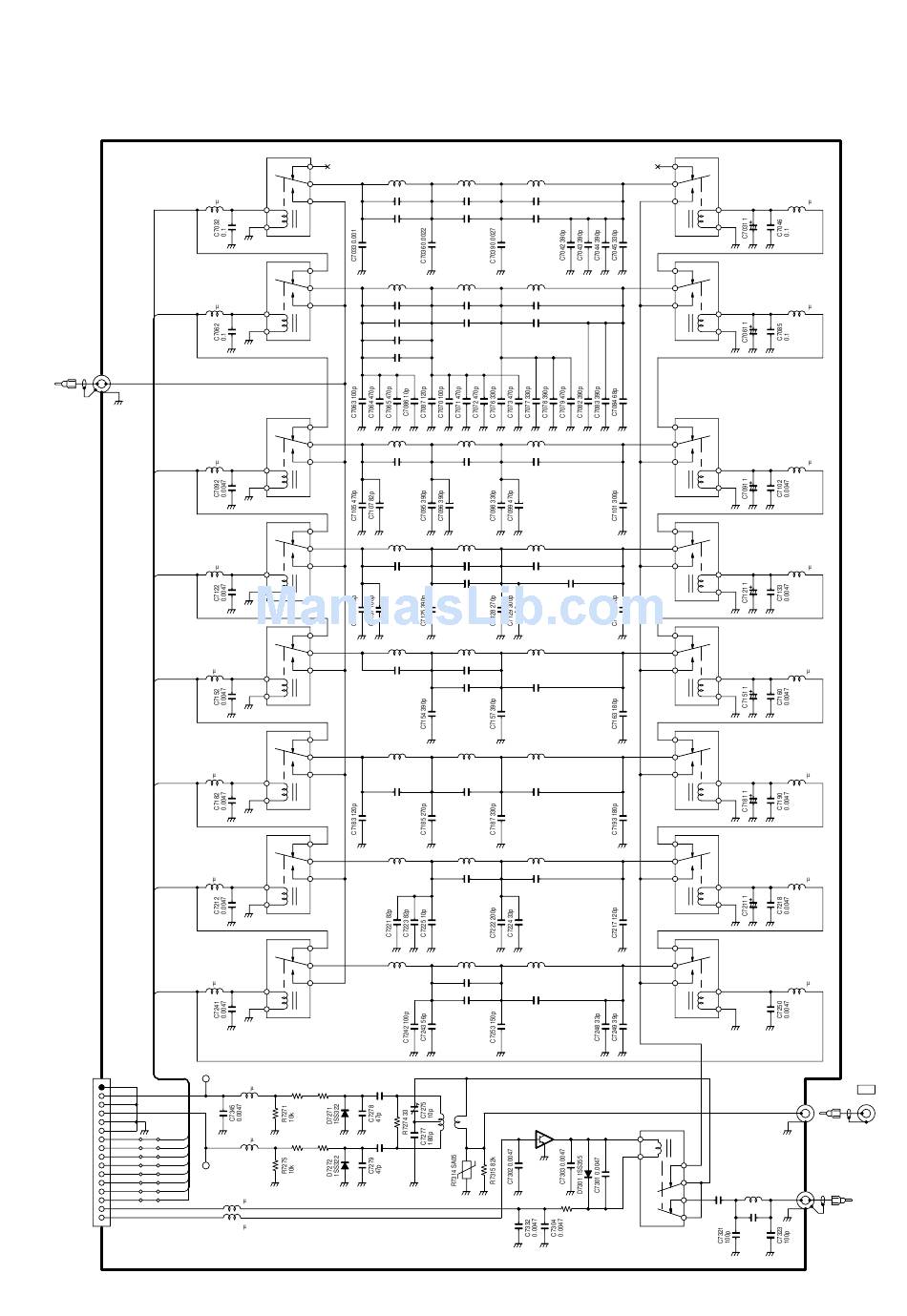

11-2-8 FILTER BOARD

L1M
L2M
J7001
P7001
to PA
FLIN
unit
J6401
L4M
L6M
L8M
L12M
L16M
L22M
CP7332
J7331
GND
FOR
GND
REF
GND
GND
L1M W7340
W7339
to MAIN L2M
unit J1301 W7338
L4M
W7337
L6M
W7336
L8M
CP7331
L12M W7335
L16M W7334
L22M W7333
S13V
TRXS
FILTER BOARD
RL7031
AJS1315
L7035
100
RL7061
AJS1315
L7065
100
RL7091
AJS1315
L7095
100
RL7121
AJS1315
L7125
100
RL7151
AJS1315
L7155
33
RL7181
AJS1315
L7185
33
RL7211
AJS1315
L7215
10
RL7241
AJS1315
L7244
10
L7271 R7272 R7273 C7272
100 2.7k 4.7k 0.0022
L7273 R7276 R7277 C7274
100 2.7k 4.7k 0.0022
L7332 100
L7331 100
L7036 LR-236 L7037 LR-226 L7038 LR-227
C7034 470p C7037 300p C7041 10p
C7035 470p C7038 270p C7049 180p
L7066 LR-263 L7067 LR-235 L7068 LR-236
C7066 330p C7074 270p C7080 120p
C7067 270p C7075 330p C7081 120p
C7068 270p
C7069 270p
L7096 LR-238 L7097 LR-235 L7098 LR-235
C7094 330p C7106 150p C7100 100p
L7126 LR-237 L7127 LR-263 L7128 LR-263
C7124 120p C7126 10p C7130 56p
C7127 120p
L7156 LR-241 L7157 LR-237 L7158 LR-237
C7153 82p C7155 120p
C7156 10p C7158 82p
L7182 LR-243 L7183 LR-242 L7184 LR-242
C7184 120p C7186 56p C7188 22p
L7216 LR-242 L7217 LR-242 L7218 LR-242
C7214 47p C7216 27p
L7248 LR-262 L7245 LR-262 L7246 LR-262
C7244 22p
C7254 22p C7247 22p
L7272
LR-391
Q7301
DTC114EU
11 - 9
C7131 5p
RL7301
AGP2013
2
1
4
3
6
R7301 10
C7325
5
0.68
RL7032
AJS1315
1.6-1.9999 MHz
L7031 100
RL7062
AJS1315
2-2.9999 MHz
L7061 100
RL7092
AJS1315
3-4.9999 MHz
L7091 100
RL7122
AJS1315
5-6.9999 MHz
L7121 100
RL7152
AJS1315
7-9.9999 MHz
L7151 33
RL7182
AJS1315
10-13.9999 MHz
L7181 33
RL7212
AJS1315
14-19.9999 MHz
L7211 10
RL7242
AJS1315
20-29.9999 MHz
L7241 10
ANT
J7311
J4501
ANT
L7321
J7321
P7321 to
LR-170
MRX
MAIN
unit
J51
C7322
18p
