Icom IC-M802 Service Manual page 23

Mf/hf marine transceiver
Hide thumbs Also See for IC-M802:
Table of Contents

Advertisement

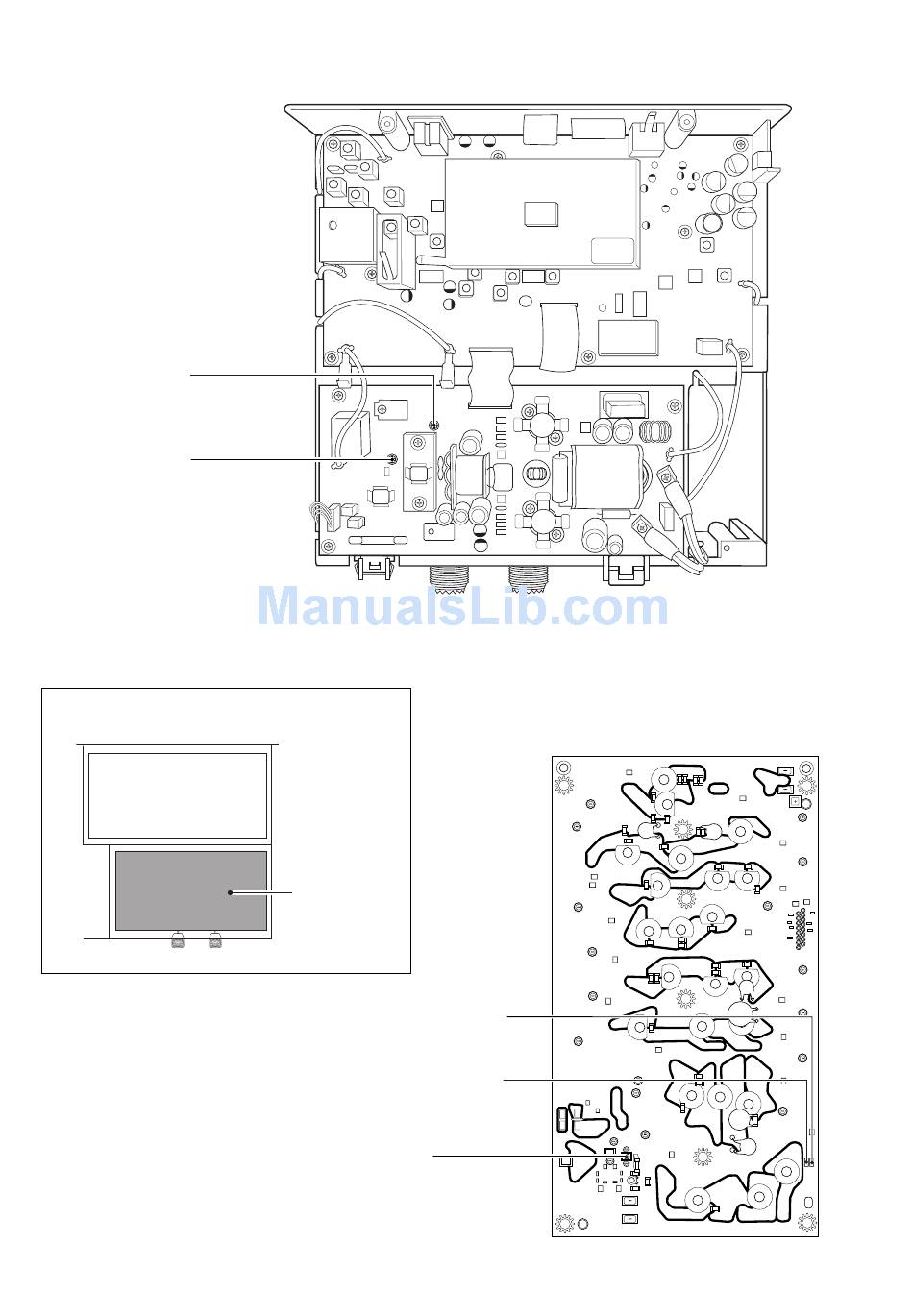

• IC-M802 TOP VIEW
R6412
Idling current adjustment
(For final transistors)
R6304
Idling current adjustment
(For drive FETs)
• FILTER UNIT BOTTOM VIEW
• IC-M802 BOTTOM VIEW
FILTER unit
CP7331 (REF line)
SWR detector check point
CP7332 (FOR line)
Connect to ground
C7275
SWR detector adjustment
4 - 6
