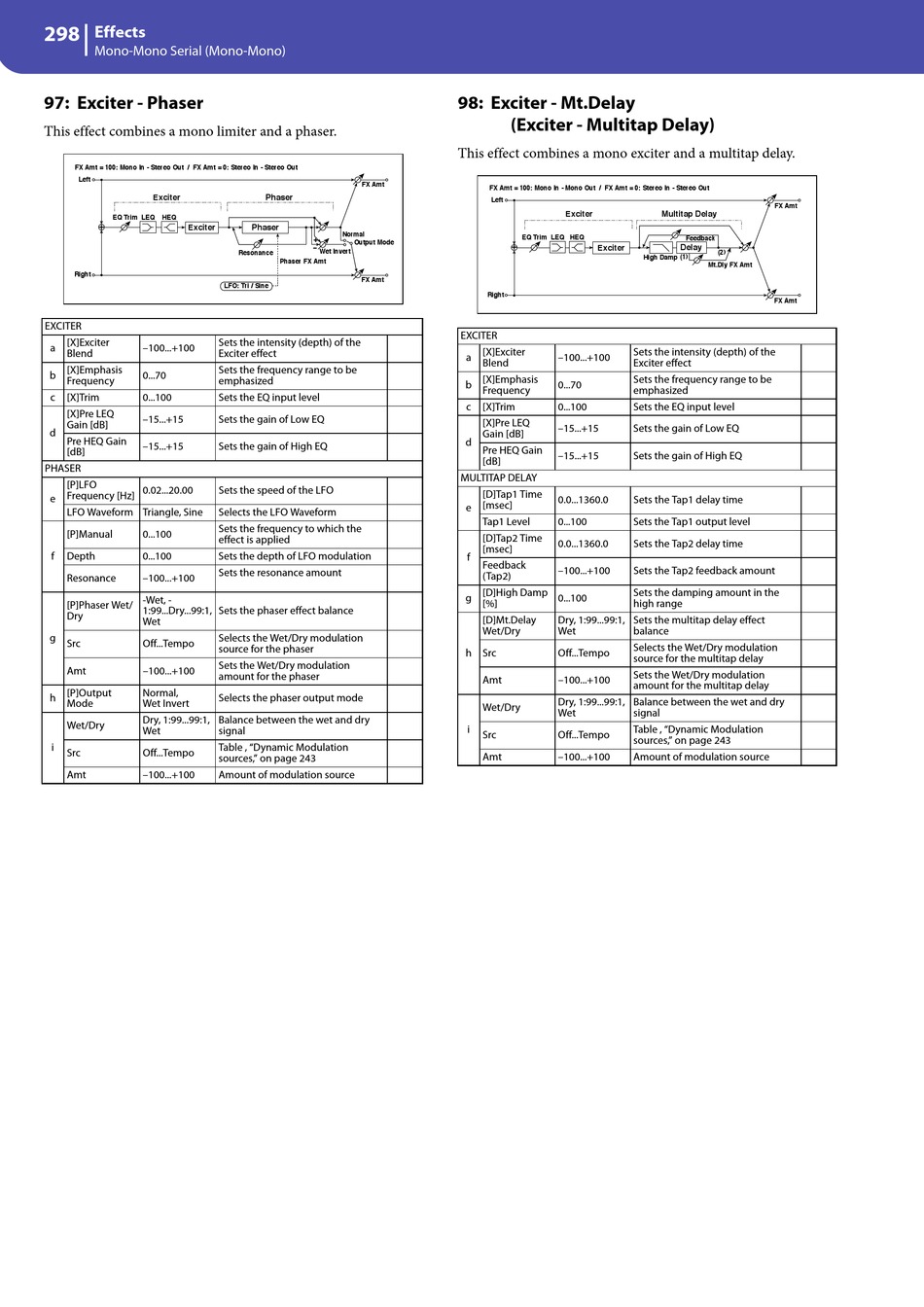

Korg PA600 Reference Manual page 302

Effects
298
Mono-Mono Serial (Mono-Mono)
97: Exciter - Phaser
This effect combines a mono limiter and a phaser.
FX Amt = 100: Mono In - Stereo Out / FX Amt = 0: Stereo In - Stereo Out
Left
Exciter
EQ Trim HEQ
LEQ
+
Exciter
Right
EXCITER
[X]Exciter Sets the intensity (depth) of the
a –100...+100
Blend Exciter effect
[X]Emphasis Sets the frequency range to be
b 0...70
Frequency emphasized
c [X]Trim 0...100 Sets the EQ input level
[X]Pre LEQ
–15...+15 Sets the gain of Low EQ
Gain [dB]
d
Pre HEQ Gain
–15...+15 Sets the gain of High EQ
[dB]
PHASER
[P]LFO
Frequency [Hz] 0.02...20.00 Sets the speed of the LFO
e
LFO Waveform Triangle, Sine Selects the LFO Waveform
Sets the frequency to which the
[P]Manual 0...100
effect is applied
f Depth 0...100 Sets the depth of LFO modulation
Sets the resonance amount
Resonance –100...+100
-Wet, -
[P]Phaser Wet/
1:99...Dry...99:1, Sets the phaser effect balance
Dry
Wet
g Selects the Wet/Dry modulation
Src Off...Tempo
source for the phaser
Sets the Wet/Dry modulation
Amt –100...+100
amount for the phaser
[P]Output Normal,
h Selects the phaser output mode
Mode Wet Invert
Dry, 1:99...99:1, Balance between the wet and dry
Wet/Dry
Wet signal
i Table , "Dynamic Modulation
Src Off...Tempo
sources, " on page 243
Amt –100...+100 Amount of modulation source
FX Amt
Phaser
Phaser
Normal
+
Output Mode
–
Wet Invert
Resonance
Phaser FX Amt
FX Amt
LFO: Tri / Sine
98: Exciter - Mt.Delay
(Exciter - Multitap Delay)
This effect combines a mono exciter and a multitap delay.
FX Amt = 100: Mono In - Mono Out / FX Amt = 0: Stereo In - Stereo Out
Left
Exciter
EQ Trim LEQ HEQ
+
Exciter
Right
EXCITER
[X]Exciter
a –100...+100
Blend
[X]Emphasis
b 0...70
Frequency
c [X]Trim 0...100
[X]Pre LEQ
–15...+15
Gain [dB]
d
Pre HEQ Gain
–15...+15
[dB]
MULTITAP DELAY
[D]Tap1 Time
0.0...1360.0
[msec]
e
Tap1 Level 0...100
[D]Tap2 Time
0.0...1360.0
[msec]
f
Feedback
–100...+100
(Tap2)
[D]High Damp
g 0...100
[%]
[D]Mt.Delay Dry, 1:99...99:1,
Wet/Dry Wet
h Src Off...Tempo
Amt –100...+100
Dry, 1:99...99:1,
Wet/Dry
Wet
i
Src Off...Tempo
Amt –100...+100
FX Amt
Multitap Delay
Feedback
Delay
(2)
(1)
High Damp
Mt.Dly FX Amt
FX Amt
Sets the intensity (depth) of the
Exciter effect
Sets the frequency range to be
emphasized
Sets the EQ input level
Sets the gain of Low EQ
Sets the gain of High EQ
Sets the Tap1 delay time
Sets the Tap1 output level
Sets the Tap2 delay time
Sets the Tap2 feedback amount
Sets the damping amount in the
high range
Sets the multitap delay effect
balance
Selects the Wet/Dry modulation
source for the multitap delay
Sets the Wet/Dry modulation
amount for the multitap delay
Balance between the wet and dry
signal
Table , "Dynamic Modulation
sources, " on page 243
Amount of modulation source
