Korg PA600 Reference Manual page 166

Media mode
162
Load
Select the bank file you are looking for, and touch Open to
6.
open it. A list of items appears.
7. Select the item you are looking for, and touch Load to con-
firm the load. A dialog box appears, asking you to select
one of the available locations in memory.

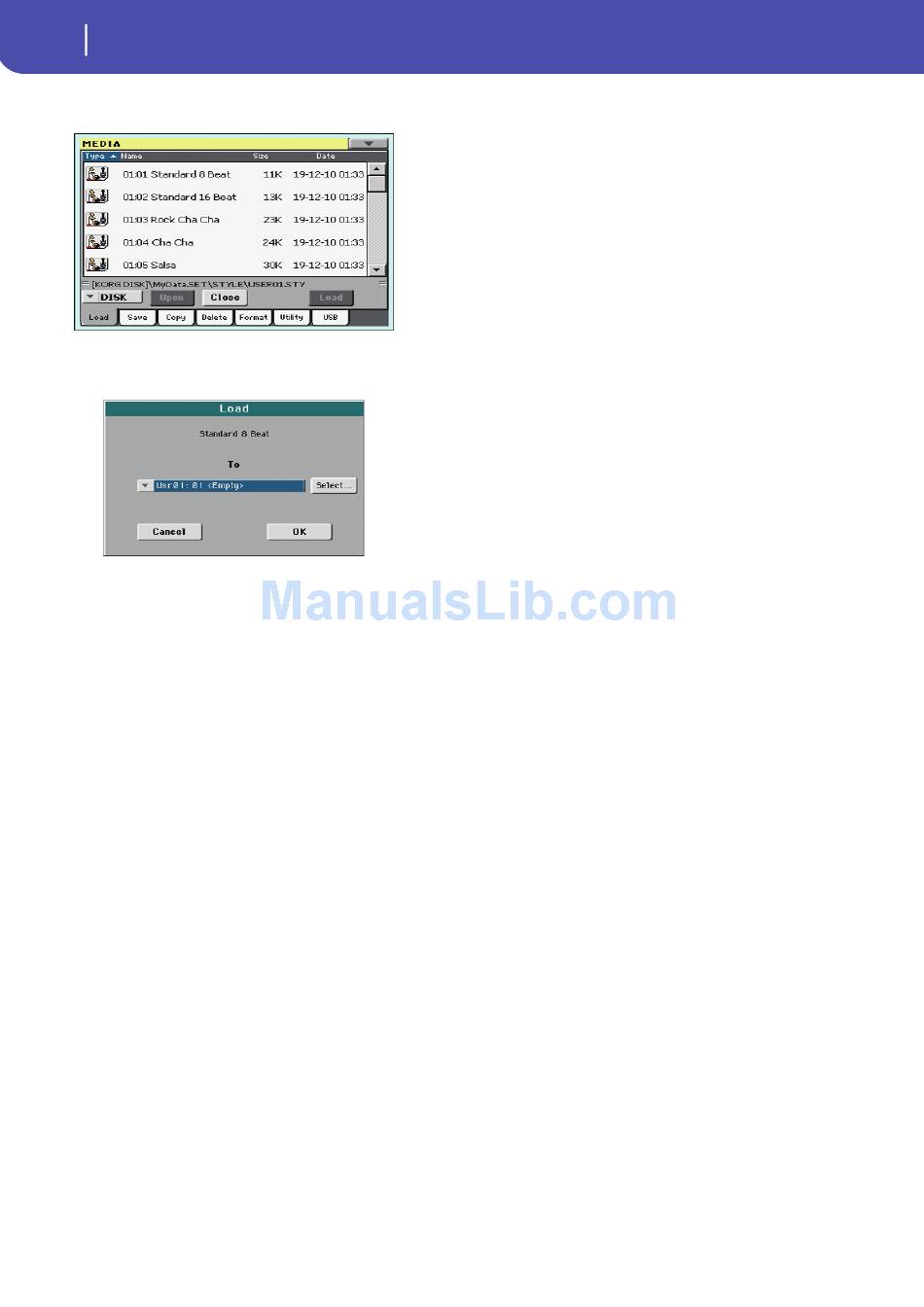

In the dialog box above, the Style you select from disk will
be loaded into location 01 of the bank Usr01 in memory.
Any existing Style at the same location will be deleted and
overwritten.
Empty locations are named "- - - ".
8. Select the target location, and touch OK to load the source
file.
Warning: After confirming, the item you are overwriting in
memory will be deleted.
Note: You can save space for loading new data by deleting all
unused PCM Samples from memory. When Sounds or Drum
Kits based on external PCM Samples are deleted, you no lon-
ger need the now unassigned PCM Samples. Choose the
"Delete Non-assigned User PCM Samples" command in the
Sound > User PCM [Samples] page to delete all the unas-
signed Samples (see page 133).
Note: If you are loading a Sound or Drum Kit making use of
external PCM Samples, the Samples are automatically
loaded (unless they are already in memory).
Loading Pa3X data
You can load Pa3X data exactly as if they were Pa600 data, apart
for the Global (GLB) and Voice Processor Presets (VOC) files.
Sounds and Effects can be a bit different. Due to the different
order in memory, Styles must be reassigned to SongBook entries
by using the SongBook Editor software (freely available on
www.korg.com).
Loading Pa2X/Pa800 data
You can load Pa2X/Pa800 data exactly as if they were Pa600 data,
apart for the Global (GLB) and Voice Processor Presets (VOC)
files. Due to the different order in memory, Styles must be reas-
signed to SongBook entries by using the SongBook Editor soft-
ware (freely available on www.korg.com).
It is not possible to load Pa600 data into a Pa2X/Pa800.
Loading Pa1X data
You can load Pa1X data exactly as if they were Pa600 data, apart
for the Global (GLB) and Voice Processor Presets (VOC) files.
Due to the different order in memory, Styles must be reassigned
to SongBook entries by using the SongBook Editor software
(freely available on www.korg.com).
It is not possible to load Pa600 data into a Pa1X.
Loading Pa80/60/50 data
You can load Pa80/60/50 data exactly as if they were Pa600 data,
apart for the Global (GLB) and Voice Processor Presets (VOC)
files. The only difference is that the "SOUND" folder of Pa600 is
called "PROGRAM" in the Pa80/60/50. Therefore, to load
Sounds from Pa80/60/50 disks, you must accomplish one of the
following operations:
• Either rename the "PROGRAM" folder "SOUND" (by
using a personal computer) before loading a ".SET" folder;
or
• First load the ".SET" folder, then separately load the ".PCG"
file from the "PROGRAM" folder.
Loading i-Series data
Pa600 is compatible with the Styles of the older i-Series instru-
ments. You can load them as if they were ordinary Pa600 data.
1. Copy the old i-Series data into an USB device, or transfer
them to the internal storage memory of the Pa600.
2. Press MEDIA to go to the Media mode. Select the Load
page if needed.
While in the Load page, select the device containing the i-
3.
Series data from the Device pop-up menu.
If you are reading an i30 file, select the ".SET" folder and
4.
touch the Open button in the display.
5. Select the ".STY" folder.
At this point, you can load the whole ".STY" folder, or open
6.
it and select a single Style.
• To load the whole folder, touch the Load button in the
display. If it contains more than 40 Styles, they will be
loaded into the USER banks sequentially, otherwise you
will be prompted to select one of the USER Style banks or
the FAVORITE Style banks in memory. Once the target
bank is selected, touch Load to load the bank. The "Are you
sure?" message will appear. Touch OK to confirm, or Can-
cel to abort.
• To load a single Style, touch Open in the display to open
the ".STY" folder. Since a conversion will be started at this
point, please wait some seconds for the operation to be
completed.
Select the Style to load, then touch Load. You will be
prompted to select a target location in memory. Once the
target location is selected, touch Load to load the Style. The
