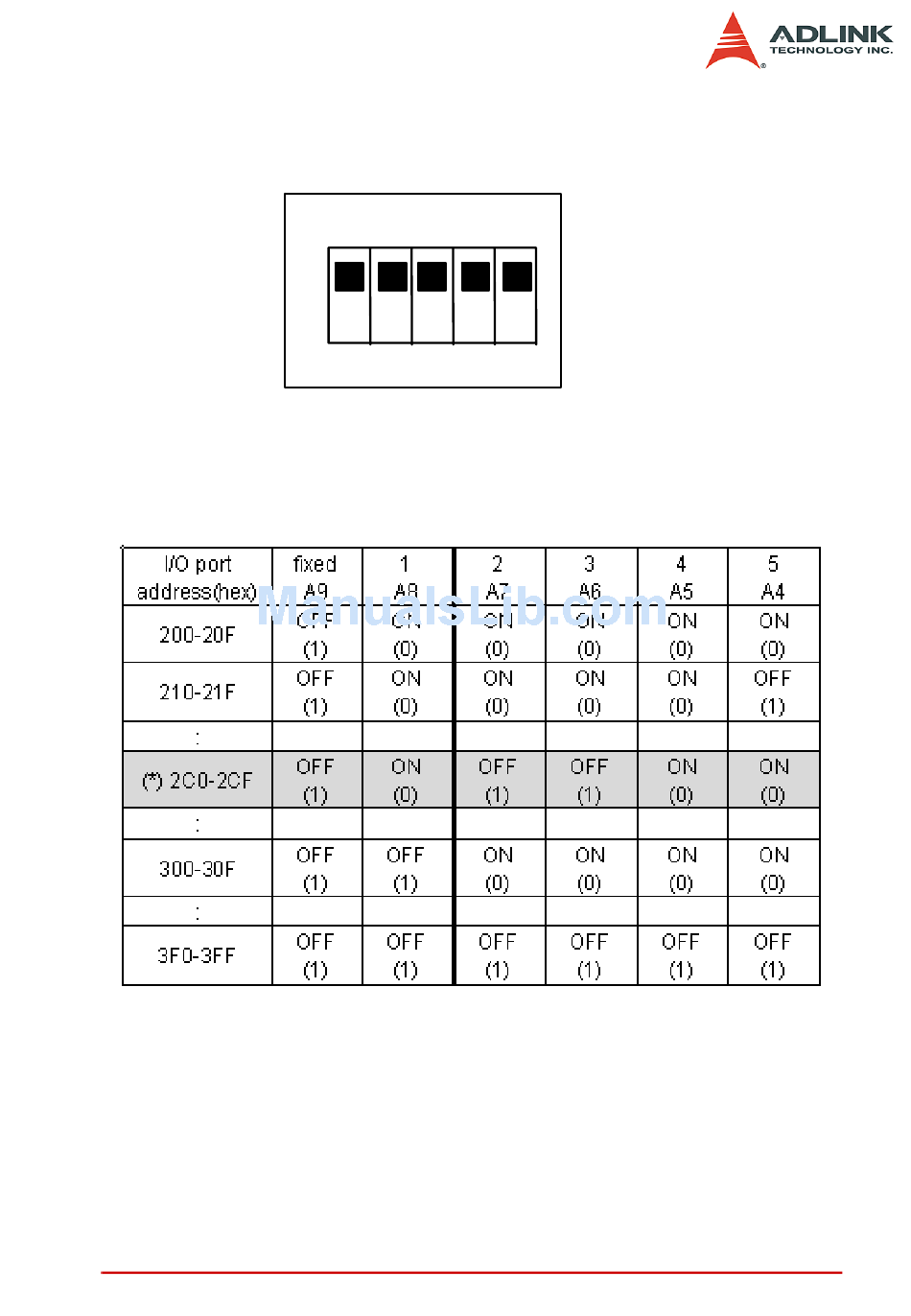

Figure 2-1: Default Base Address Configuration
(*): default setting ON
X: don't care
Note:
A4,..., A9 correspond to PC-104(ISA) bus address lines.
Installation
SW1 : Base Address = 0x200
ON
1
2
3
A ( 8 7 6 5 4 )
OFF
4
5
: 0
: 1
13
