ADLINK Technology NuCOM PCI-7841 User Manual page 16

Dual-port isolated can interface card

Table of Contents

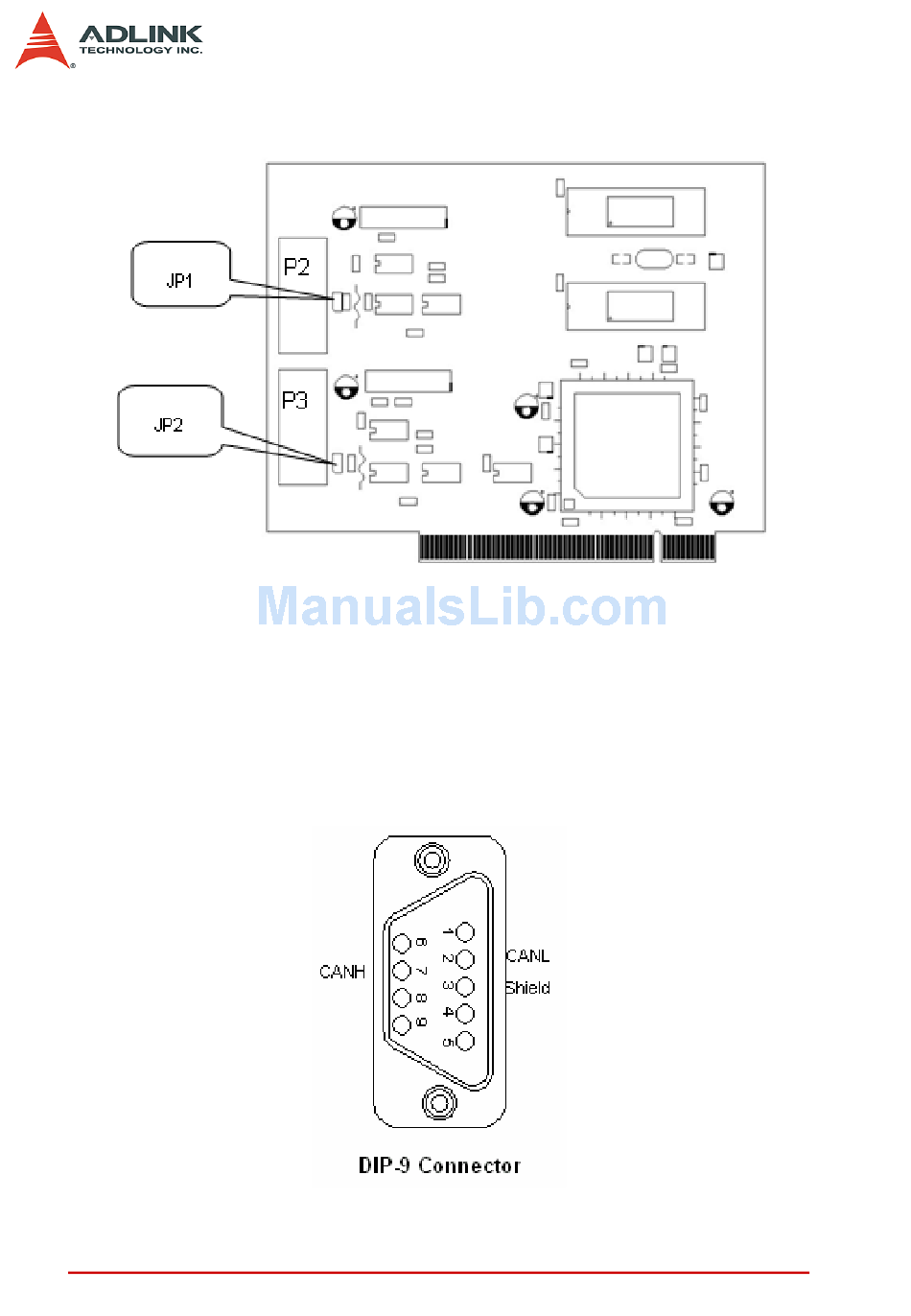

PCI-7841 Layout:

Terminator Configuration

A 120 Ohm terminal resistor is installed for each port, while JP1

enables the terminal resistor for port0 and JP2 enables the termi-

nal resistor for port 1

Connector Pin Definition

P3 and P4 are CAN connectors; pin definition is as follows:

Installation
