ADLINK Technology PCIe-7442 User Manual

64ch isolated di/64ch isolated do pcie card
Hide thumbs

Advertisement

Quick Links

Download this manual
64CH Isolated DI/64CH Isolated DO PCIe Card
Manual Rev.:
Revision Date:
Part No:
Advance Technologies; Automate the World.
This datasheet has been downloaded from
PCIe-7442
User's Manual
2.00
Dec. 30, 2016
50-11264-1000
http://www.digchip.com
at this
page

Advertisement

loading
Need help?

Need help?

Do you have a question about the PCIe-7442 and is the answer not in the manual?

Questions and answers

Related Manuals for ADLINK Technology PCIe-7442

Summary of Contents for ADLINK Technology PCIe-7442

  • Page 1 PCIe-7442 64CH Isolated DI/64CH Isolated DO PCIe Card User’s Manual 2.00 Manual Rev.: Dec. 30, 2016 Revision Date: 50-11264-1000 Part No: Advance Technologies; Automate the World. This datasheet has been downloaded from http://www.digchip.com at this page...
  • Page 2 Revision History Revision Release Date Description of Change(s) 2.00 Dec. 30, 2016 Initial release...
  • Page 3 PCIe-7442 Preface Copyright ©2016 ADLINK Technology, Inc. This document contains proprietary information protected by copy- right. All rights are reserved. No part of this manual may be repro- duced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer.
  • Page 4 Conventions Take note of the following conventions used throughout this manual to make sure that users perform certain tasks and instructions properly. Additional information, aids, and tips that help users perform tasks. NOTE: NOTE: Information to prevent minor physical injury, component dam- age, data loss, and/or program corruption when trying to com- plete a task.
  • Page 5 PCIe-7442 Table of Contents Revision History..............ii Preface ..................iii List of Figures ............... vii List of Tables................ix 1 Introduction ................ 1 Features................1 Applications ................. 2 Specifications............... 2 Software Support ..............3 PCIS-DASK ..............3 PCB Layout................4 Connectors ................
  • Page 6 COS Interrupt Control Registers ........21 COS Setup/Latch Registers..........23 TTL I/O Setup, Status, DO, and DI Registers ....24 Isolated Digital Output and Read Back Registers....25 Power-up DO Setup/Read Register........26 Watchdog Timer Load, Safety DO Setup/Read Back Registers................
  • Page 7 PCIe-7442 List of Figures Figure 1-1: PCIe-7442 Board Layout ..........4 Figure 1-2: CN1/CN2 Connector............5 Figure 1-3: CN1A Connector ID ............6 Figure 1-4: CN1B Connector ID ............7 Figure 1-5: CN2A Connector ID ............9 Figure 1-6: CN2B Connector ID ............10 Figure 1-7: I/O Connector ..............
  • Page 8 This page intentionally left blank. viii List of Figures...
  • Page 9 PCIe-7442 List of Tables Table 1-1: PCIe-7442 Board Layout Legend ........4 Table 1-2: CN1 Connector Pin Assignment ........8 Table 1-3: CN2 Connector Pin Assignment ........11 Table 1-4: JP3 I/O Connector Pin Assignment ....... 12 Table 1-5: JP4 I/O Connector Pin Assignment ....... 12 Table 2-1: Board ID Setting Conditions ..........
  • Page 10 This page intentionally left blank. List of Tables...

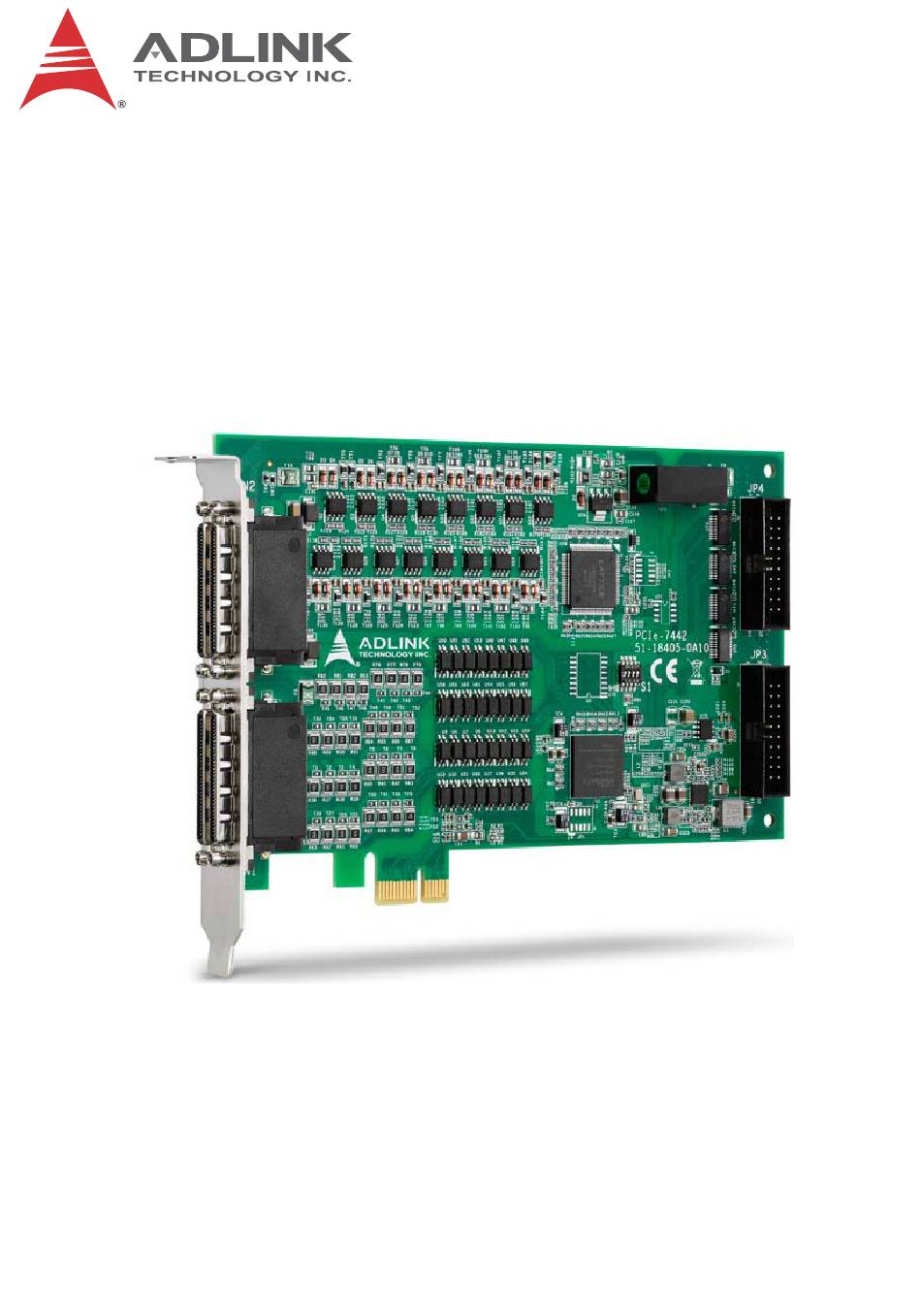

  • Page 11 PCIe-7442 Introduction ADLINK'S PCIe-7442 is a basic digital I/O card for PCIe bus com- puters in industrial applications. All digital input channels are identical non-polar and opto-isolated, suitable for collecting digital input in noisy environments. COS (Change of state) interrupt is supported, whereby when any digital input changes state, an interrupt is generated to allow manage- ment of the event.
  • Page 12 1.2 Applications Industrial ON/OFF control  External high power relay driving, signal switching  Laboratory automation  Industrial automation  Switch contact status detection and limit switch monitoring  & control systems 1.3 Specifications Digital Input Input channels Photocoupler PC3H4 10 mA rated Input current 50 mA max.
  • Page 13 PCIe-7442 Operating temperature 0 to 60°C Storage temperature -20 to 80 °C Humidity 5 to 95% non-condensing 1x PCI Express +12V@170mA (typical) 300mA (Max.) +3.3V@ 1mA (typical) 1.5mA (Max.) Power consumption (when all relays are activated simultaneously) 1.4 Software Support ADLINK provides comprehensive software solutions for all system building requirements.
  • Page 14 Figure 1-1: PCIe-7442 Board Layout 16CH (TTL15 to 31) TTL I/O connector 16CH (TTL 0 to 15) TTL I/O connector Board ID DIP switch 64CH isolated digital output connector 64CH isolated digital input connector Table 1-1: PCIe-7442 Board Layout Legend Introduction...
  • Page 15 PCIe-7442 1.6 Connectors The PCIe-7442 is equipped with a 68-pin Dual port VHDCI con- nector, via CN1A, CN1B, CN2A, and CN2B. CN2B CN2A CN1B CN1A Figure 1-2: CN1/CN2 Connector IDI_0 IDI_8 IDI_1 IDI_9 IDI_2 IDI_10 IDI_3 IDI_11 Introduction...
  • Page 16 IDI_4 IDI_12 IDI_5 IDI_13 IDI_6 IDI_14 IDI_7 IDI_15 COM1 COM2 COM1 COM2 COM1 COM2 COM1 COM2 COM1 COM2 COM1 COM2 COM1 COM2 COM1 COM2 IDI_16 IDI_24 IDI_17 IDI_25 IDI_18 IDI_26 IDI_19 IDI_27 IDI_20 IDI_28 IDI_21 IDI_29 IDI_22 IDI_30 IDI_23 IDI_31 COM3 COM4 COM3...
  • Page 17 PCIe-7442 COM8 COM7 COM8 COM7 COM8 COM7 COM8 COM7 COM8 COM7 COM8 COM7 COM8 COM7 IDI_63 IDI_55 IDI_62 IDI_54 IDI_61 IDI_53 IDI_60 IDI_52 IDI_59 IDI_51 IDI_58 IDI_50 IDI_57 IDI_49 IDI_56 IDI_48 COM6 COM5 COM6 COM5 COM6 COM5 COM6 COM5 COM6...
  • Page 18 Definition IDI_n Isolated digital input channel n COM1 Common VDD junction for input channels 0-7 COM2 Common VDD junction for input channels 8-15 COM3 Common VDD junction for input channels 16-23 COM4 Common VDD junction for input channels 24-31 COM5 Common VDD junction for input channels 32-39 COM6 Common VDD junction for input channels 40-47 COM7 Common VDD junction for input channels 48-55 COM8 Common VDD junction for input channels 56-63...
  • Page 19 PCIe-7442 IDO_17 IDO_25 IDO_18 IDO_26 IDO_19 IDO_27 IDO_20 IDO_28 IDO_21 IDO_29 IDO_22 IDO_30 IDO_23 IDO_31 VDD3 VDD4 IGND IGND IGND IGND IGND IGND IGND IGND IGND IGND IGND IGND IGND IGND Figure 1-5: CN2A Connector ID IGND IGND IGND IGND...
  • Page 20 IDO_57 IDO_49 IDO_56 IDO_48 IGND IGND IGND IGND IGND IGND IGND IGND IGND IGND IGND IGND IGND IGND VDD6 VDD5 IDO_47 IDO_39 IDO_46 IDO_38 IDO_45 IDO_37 IDO_44 IDO_36 IDO_43 IDO_35 IDO_42 IDO_34 IDO_41 IDO_33 IDO_40 IDO_32 Figure 1-6: CN2B Connector ID Definition IDO_n Isolated digital output channel n...
  • Page 21 PCIe-7442 Definition Onboard unregulated 5V power supply output No connection Table 1-3: CN2 Connector Pin Assignment DI/O Connections Figure 1-7: I/O Connector TTL I/O channel n TTLIO_n System ground for PCIe-7442 card SGND Function Function TTLIO_0 TTLIO_8 TTLIO_1 TTLIO_9 Introduction...
  • Page 22 The isolated digital input, with open collector transistor structure, supports voltage range of 0 to 28V with input resistance 4.7K. Connection between external signals and the PCIe-7442 is as shown. Since the input common junction can be common ground Introduction...
  • Page 23 PCIe-7442 with the existing environment, digital input can be current source or current sink. Current Flow DICOM (GND) Current Flow DICOM (+VDD) Figure 1-8: Isolated Input Connection 1.8.2 Isolated Digital Output Channels In the common ground connection of isolated digital output, as shown, when isolated digital output goes ON, sink current passes through the transistors until output is OFF.
  • Page 24 COS Detection Architecture The COS interrupt system generates an interrupt request signal which is serviced request with ISR. The PCIe-7442 has bank 0 from DI0 to DI31 and bank 1 from DI32 to 63, cascaded together toward the same IRQ line via CPLD. Notification can be config-...
  • Page 25 COS function for each is disabled as default. 1.10 Programmable Power Up DO Status The PCIe-7442 provides programmable configuration of all 64CH DO initial status when powering up. As well, the system can be configured to hold DO status and avoid power-up initial configura- tion after a hot system reset.
