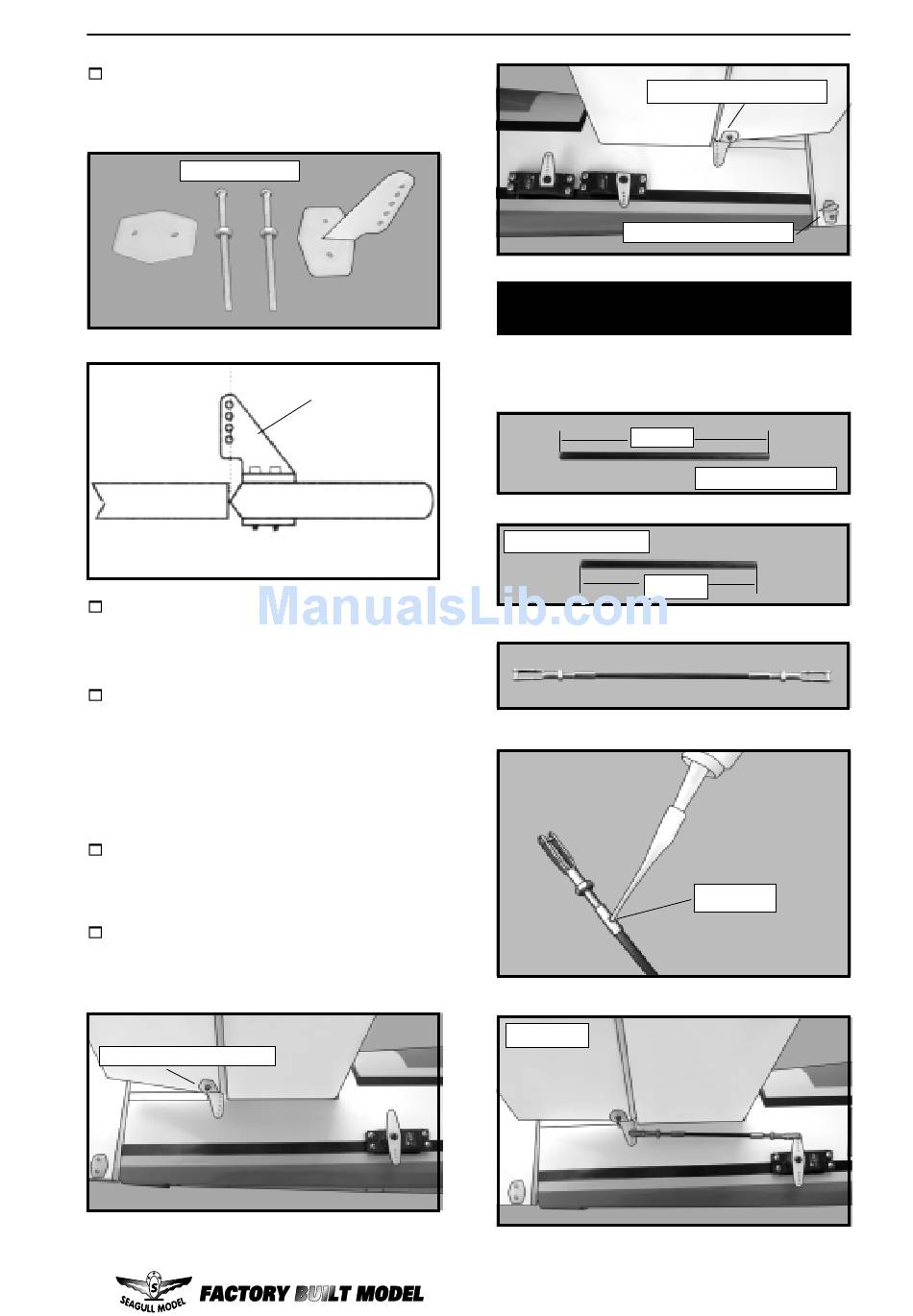

Seagull Models 540 Assembly Manual page 19

EDGE 540.
2) Position the elevator horn on the both
side of elevator. The clevis attach- ment holes
should be positioned over the hinge line.
2mm x 20 mm.
Mounting Screws.
3) Using a 1.5mm drill bit and the control
horns as a guide, drill the mounting holes
through the elevator halves.
Mount the control horns by inserting the
4)
bolts through the control horn bases and
elevator halves, then into the mounting
backplates. Do not overtighten the nuts or the
backplates may crush the wood.
5) Position the rudder control horn on the
left side of the airplane. Mount the control horn
parallel with the horizontal stabilizer.
6) Install the rudder control horn using the
same method as with the elevator control
horns.
Elevator control horn.
Control Horn.
Mounting Plate.
Instruction Manual.
Elevator control horn.
Rudder control horn.
ELEVATOR-RUDDER PUSHROD
INSTALLATION.
Elevator - rudder pushrods assembly follow
pictures below.
11.8cm.
Elevator pushrod.
10.8cm.
Left side.
Rudder pushrod.
C/A glue.
19
