Front

Printer parts

Printer parts
Front ........................................................................................................................................................................................... 690
Back ............................................................................................................................................................................................ 692
Top Cover (Inside) ................................................................................................................................................................. 693
Carriage ..................................................................................................................................................................................... 694
Ink Tank Cover (Inside) ....................................................................................................................................................... 695
Stand .......................................................................................................................................................................................... 696
Parts of the Output Stacker ............................................................................................................................................. 570
Media Take-up Unit (Optional) ......................................................................................................................................... 697
Control Panel ........................................................................................................................................................................... 654

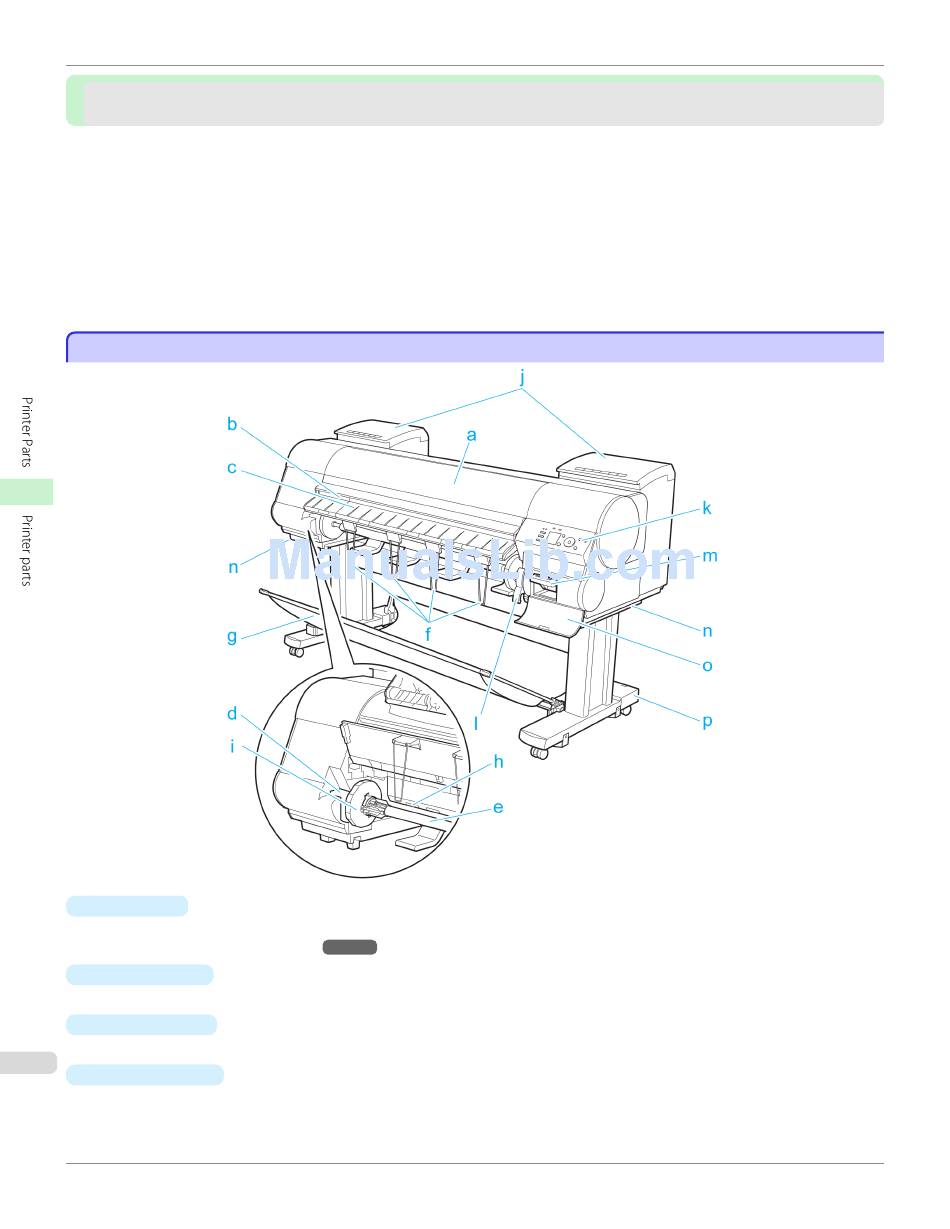

Front

Front
a Top Cover
Open this cover to install the Printhead, load paper, and remove any jammed paper from inside the printer as nee-
ded. (See "Top Cover (Inside).")
b Cutter Groove
Paper is cut (using the cutter or manually with scissors) over this groove.
c Ejection Guide
Guides printed documents as they are ejected. Raise the guide when loading a roll.
690
d Roll Holder Slot
Slide the Roll Holder into this slot.
→
P.693
