Selection Area - Native Instruments AUDIO KONTROL 1 Operation Manual

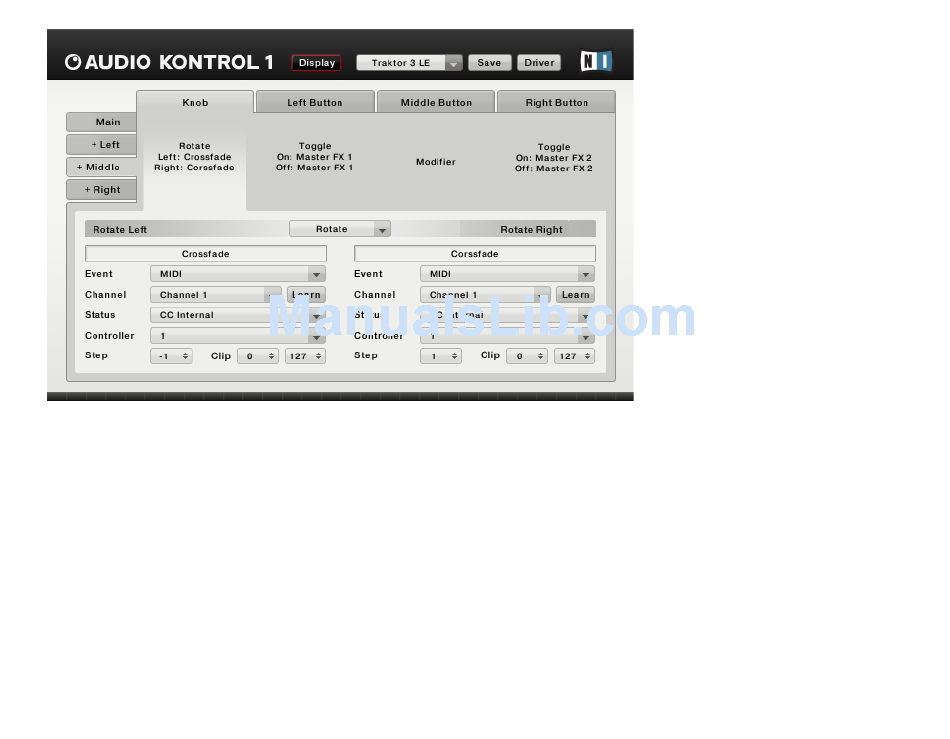

The Assign View of the Mapping Application, with its Selection Area above and Definition Area below.

Selection Area

The Selection Area consists of four Controller Areas, laid out horizontally, and four
vertical Layer Tabs.
The Controller Areas represent the four Controllers (Controller Knob and Left, Middle
and Right Buttons). Each of them displays the Hardware Event Mode of that Controller
(e.g., Toggle, Rotate) as well as both Event Labels (e.g. On: Activate Reverb; Off:
Deactivate Reverb). They can be selected via the mouse. When a Controller Area is
selected, the corresponding element's settings are displayed in the lower Definition
Area.
AUDIO KONTROL 1 – 90
