Native Instruments AUDIO KONTROL 1 Operation Manual page 64

►
With the Right Button pressed, it moves the Sound Variation Morph vertically,
giving you access to the lower row of Sound Variations.

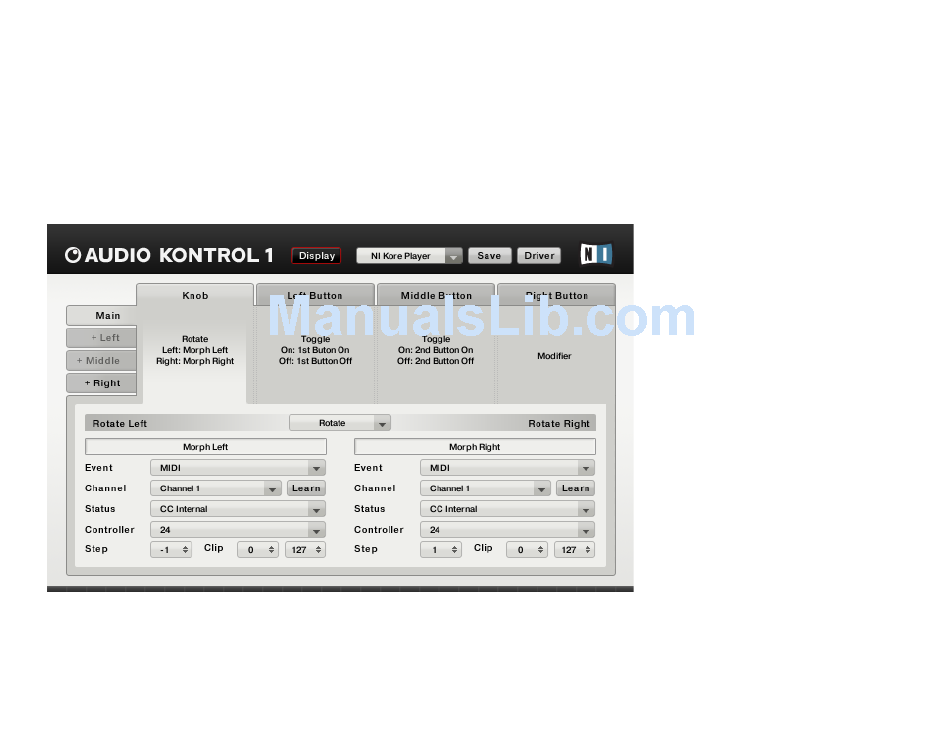

Analyzing the Assign View
In order to understand how this works (and maybe how to modify this...), select the
Assign View in the Mapping Application by clicking the Assign Button in the window's
top Application Control Bar (if the Button is not visible, don't worry, you already are
in the Assign View).
In the upper Selection Area, you can see all the Controller assignments. By clicking on
one of the four Layer tabs on the left, you can select the assignments for that Layer.
By then clicking on one of the four Controller Areas (or on one of the four upper tabs),
you can select the particular assignment for the corresponding Controller.
AUDIO KONTROL 1 – 64
