Extended - Native Instruments AUDIO KONTROL 1 Operation Manual

►

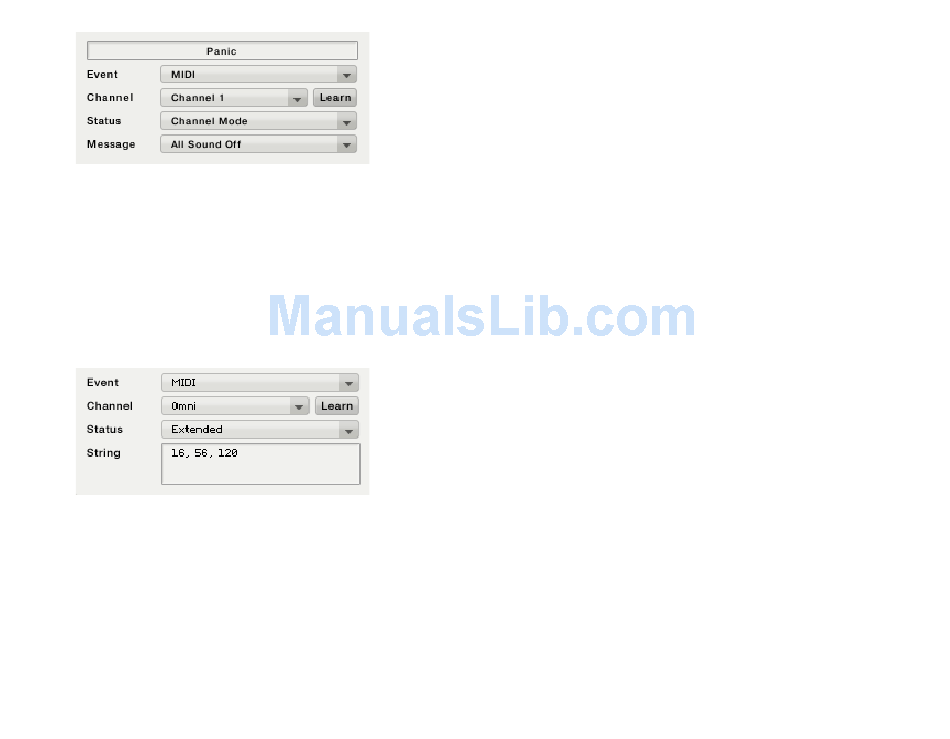

Extended: Sends a generic MIDI string. It contains a Text Field for entering the MIDI
string. The string is entered byte-wise. The bytes are separated by blanks
and/or commas. The byte's value can be entered in decimal or hexadecimal
notation. The hexadecimal notation is indicated by an "h" succeeding the byte
value without blank or comma. The Channel menu has no effect when sending
extended MIDI messages. This can be used to generically encode all MIDI
messages, particularly SysEx commands. Combined with the MIDI Learn feature,
it can even be used to record small MIDI phrases that can then be played-back
directly from the hardware.
Clicking on the Learn switch activates the MIDI Learn mode. The Mapping Application
then listens to messages on the driver's MIDI stream, allowing you to enter the MIDI
message from any MIDI controller or master keyboard. It does not affect the Channel
and Status selection - instead the messages are filtered by these settings. This keeps
the Learn mode selective regarding specific modes like CC Fixed/Internal etc. If
Extended is selected with the Status menu, all messages are learnt without filtering,
the only exception being MIDI real-time messages. In Extended mode subsequent
messages can also be learnt; in all other cases, a new message overwrites the previ-
ous setting.To switch the MIDI Learn mode off, click on the Learn switch again.
AUDIO KONTROL 1 – 98
