the Event Label field allows you to define a name for this assignment
►
the Software Event Type menu selects whether a key command or a MIDI command
is sent
►
the Channel menu sends the MIDI command on channel 1
►
the Status menu selects which type of MIDI command to be sent, here a
Continuous Controller number (CC) in an incremental way (Internal)
►
the Controller Number menu specifies the CC number to be sent (here 23)
►
the last row controls the increment and range of the message being sent
You will find a detailed description of all possible assignment parameters in the
Reference section later in this manual.
For the moment, the Controller Knob is assigned to CC 23, as shown by the
Controller Number menu, corresponding to the Delay Dry/Wet parameter. The Chorus
Speed parameter is controlled by CC 22 (see table in the Appendix). So the only
thing we have to do is to click on this Controller Number menu and select "22" instead
of "23" in the dropdown list. Don't forget to do this in the left and right parts of
the Definition Area, to avoid any unpleasant surprises.
In both left and right parts, we need to modify the Event Label field as well, so it
reflects the new actions.

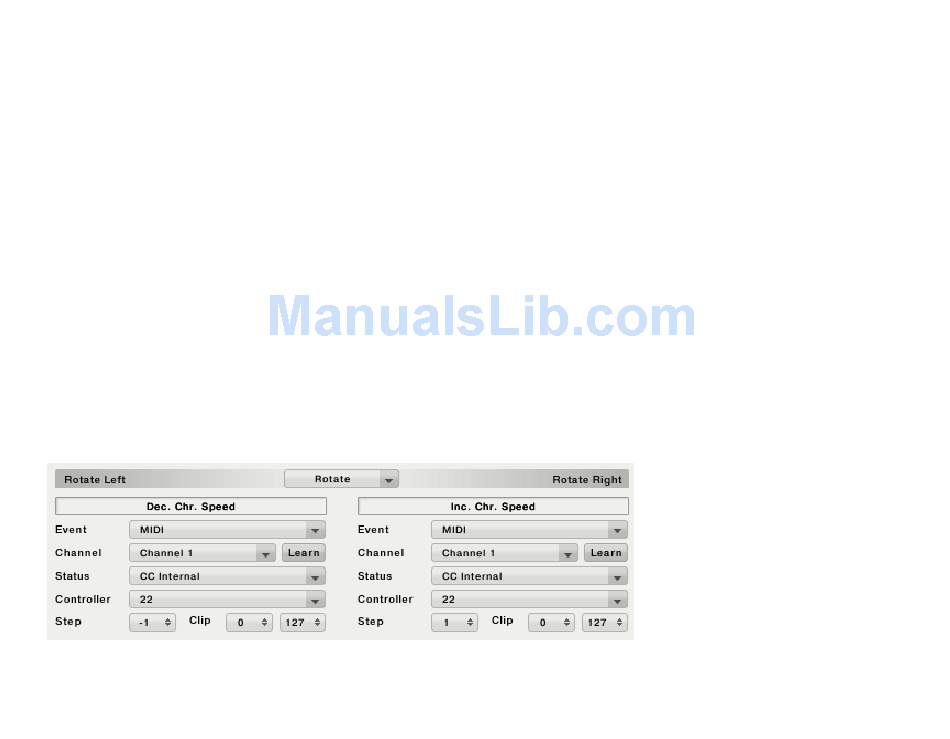

The Definition Area should now look like this.
