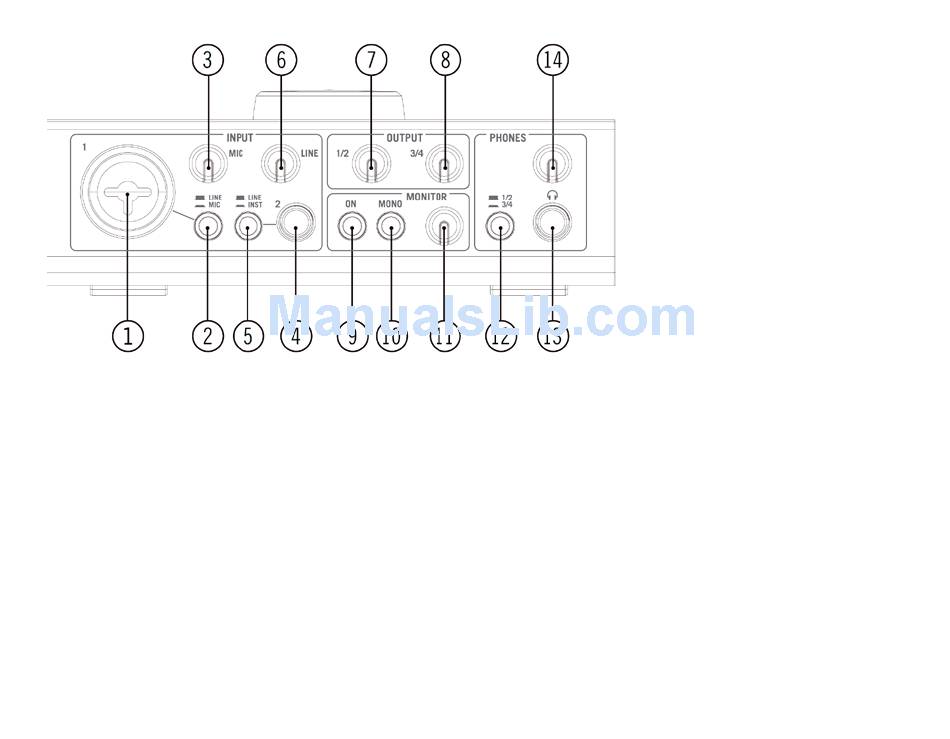

The AUDIO KONTROL 1 Front Panel.
1: Combo Input Jack (Input 1)
This analog audio input accommodates either XLR or phone plugs. The XLR plug
(mono balanced) allows you to connect a microphone, routing the signal through the
mic preamp. The phone plug (¼" jack, TRS mono balanced) allows you to connect
a variety of other line level audio devices (mixer, MIDI sound module etc.).
Please note that, depending on which plug you use (XLR or phone jack); you have
to select the appropriate signal level on the Mic/Line Switch (2).
When using a condenser microphone, don't forget to activate the Phantom Power
Switch (18).
