The Display View - Native Instruments AUDIO KONTROL 1 Operation Manual

AUDIO KONTROL 1 Logo and NATIVE INSTRUMENTS Logo
Clicking on the AUDIO KONTROL 1 Logo or on the NATIVE INSTRUMENTS Logo opens the
About dialog. This dialog contains valuable information about the software such as
the version number.

7.4.3. The Display View

The Display View allows you to see what the current assignations are for the four
Controllers on your AUDIO KONTROL 1 top panel.
If the Display View is not active, click on the Display Button in the Application Control
Bar (if there is no Display Button in the Bar, it means that you are already in the
Display View...)

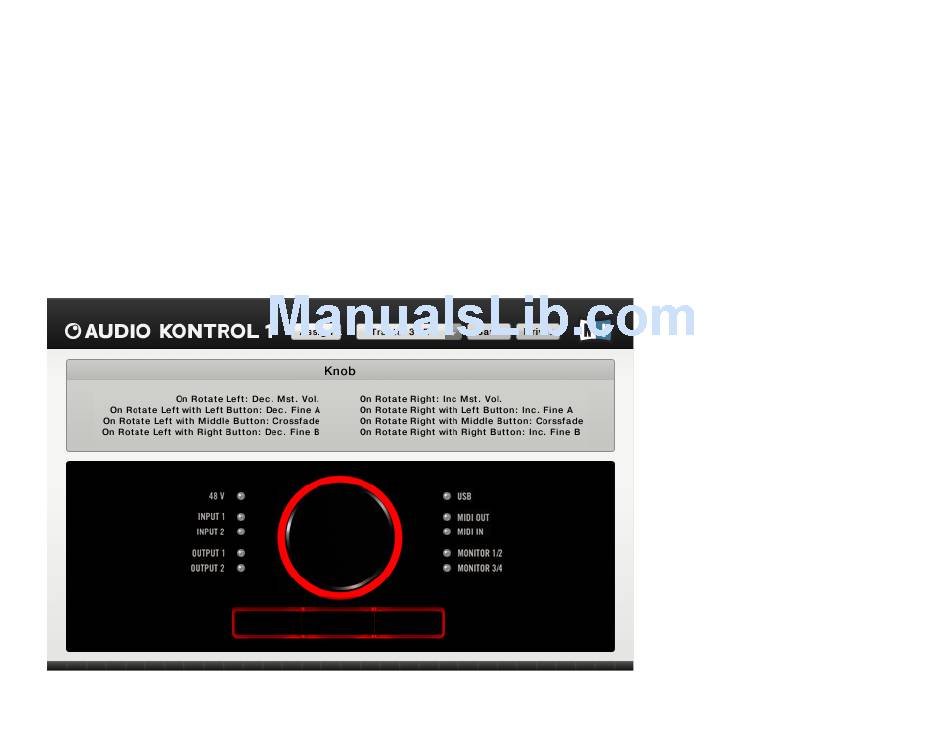

The Display View of the Mapping Application, with its Information Area above and its Hardware Area
below.
AUDIO KONTROL 1 – 88
