Native Instruments AUDIO KONTROL 1 Operation Manual page 44

If you hover the mouse cursor over a Knob or Button, the Information Area displays the current assign-
ments of the respective control.
Bring the Mapping Application to the front in your operating system. In the top
Application Control Bar, the first Button is labeled either „Assign" or "Display".
If you see "Display", click on it to switch to the Display View. If you see "Assign",
then leave it, as you are already where we need to be: in the Display View.

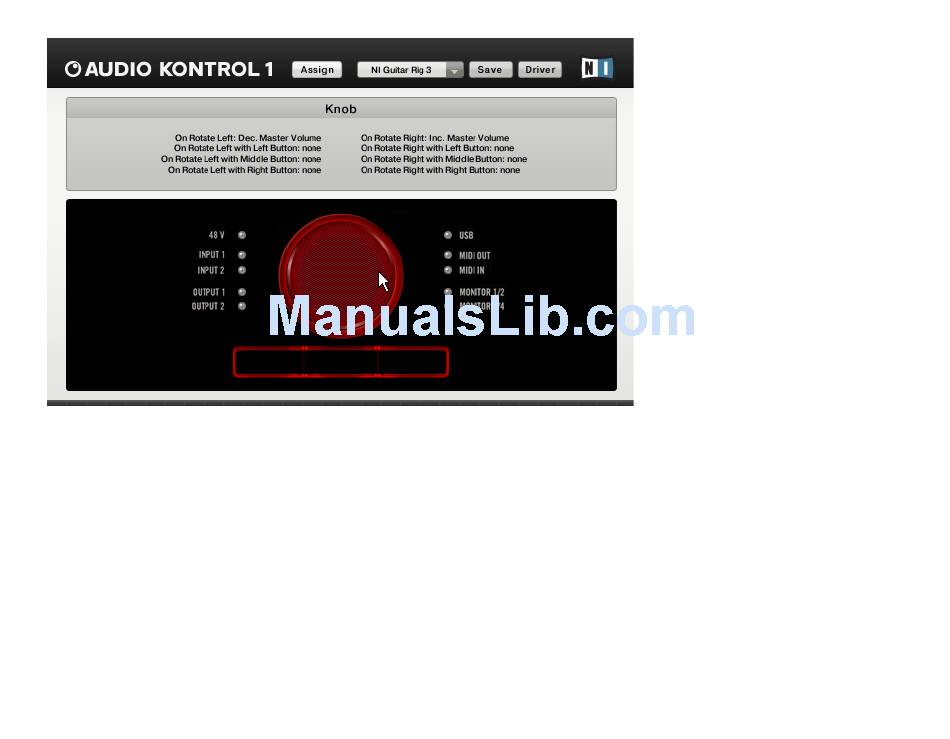

On the right, click on the Page Select menu and select, the entry "NI Guitar Rig
3". The Mapping Application automatically loads that Page and you will see all its
assignments in the rest of the window.
AUDIO KONTROL 1 – 44
