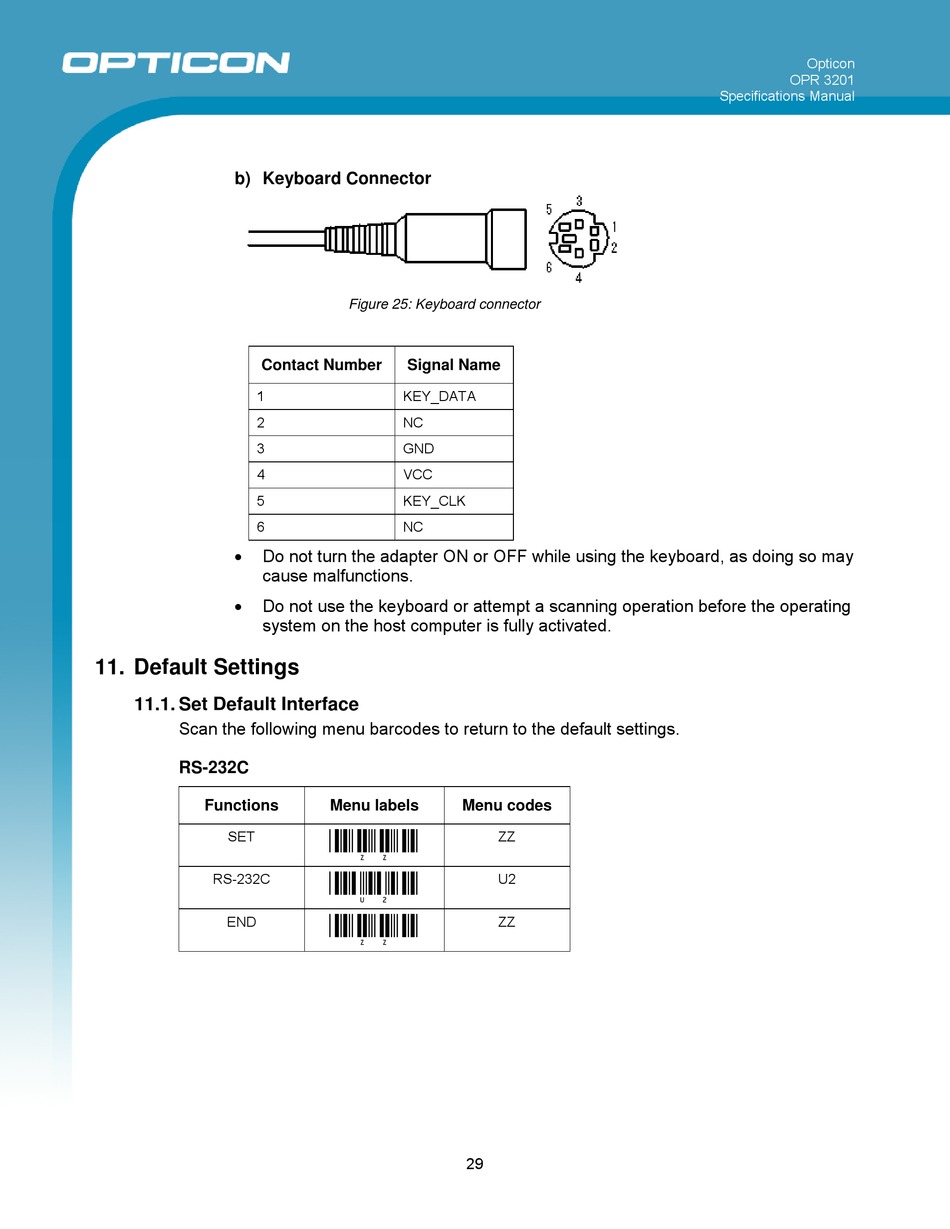

b) Keyboard Connector
Contact Number
1
2
3
4
5
6
•
Do not turn the adapter ON or OFF while using the keyboard, as doing so may
cause malfunctions.
•
Do not use the keyboard or attempt a scanning operation before the operating
system on the host computer is fully activated.

11. Default Settings

11.1. Set Default Interface

Scan the following menu barcodes to return to the default settings.
RS-232C
Functions
SET
RS-232C
END

Figure 25: Keyboard connector

Signal Name
KEY_DATA
NC
GND
VCC
KEY_CLK
NC
Menu labels Menu codes
_ZZ_ ZZ
_U2_ U2
_ZZ_ ZZ
29
Opticon
OPR 3201
Specifications Manual
