9.2. USB-HID and USB-VCP Interface Specifications

Settings

9.2.1.
Reading the menu barcodes in section 11.1 can set the USB interface default.
The interface is full-speed USB, 12 Mbps (HID/VCP) and low-power bus-powered.
For USB-VCP support, a driver must be installed on the host.

Interface Circuit

9.2.2.
Do not use the keyboard while the scanner is transmitting the data to the host.
Doing so may cause data transactions to fail.

9.3. Wedge Interface Specification

Settings
9.3.1.
Reading the menu barcodes in section 11.1 can set the Wedge interface default.

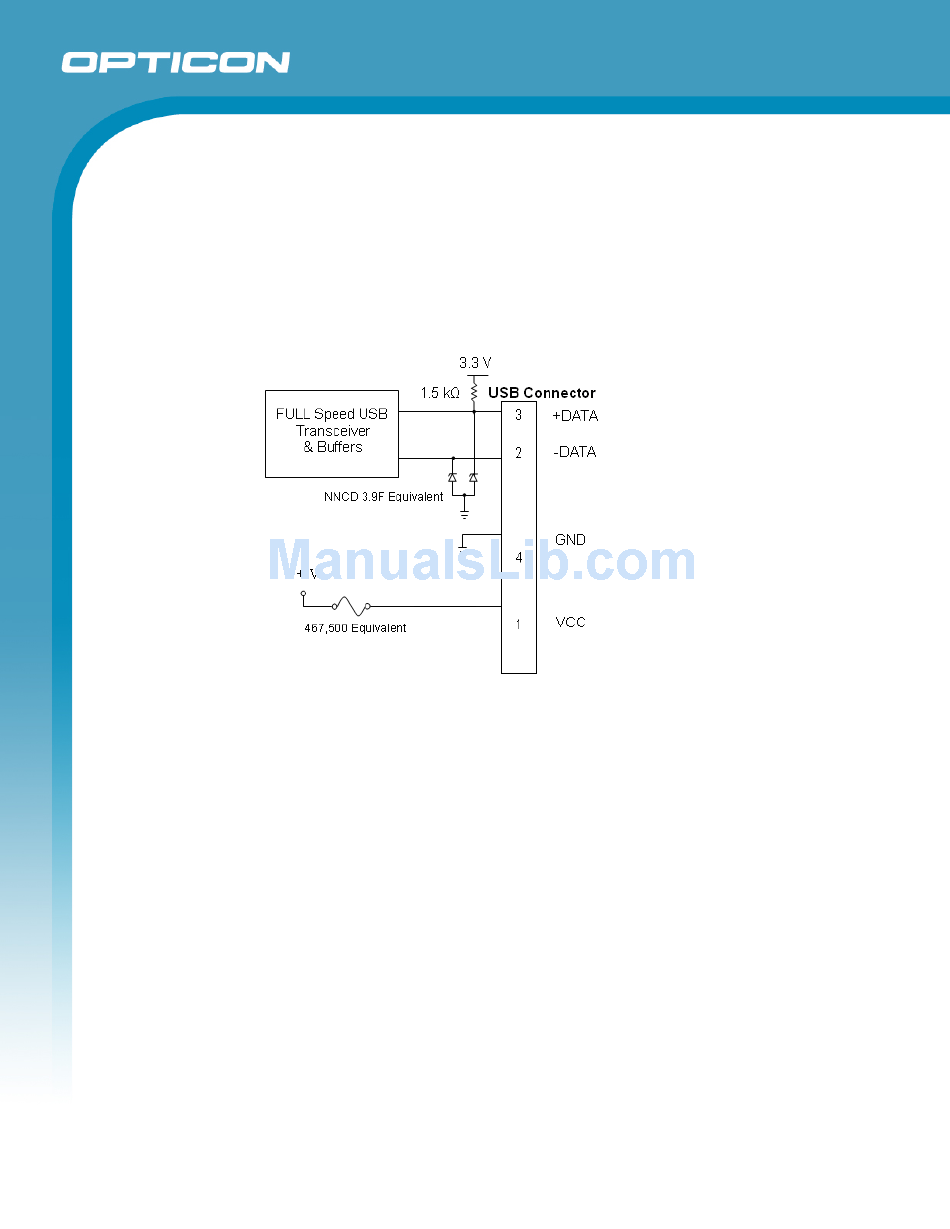

Figure 19: Interface circuit
