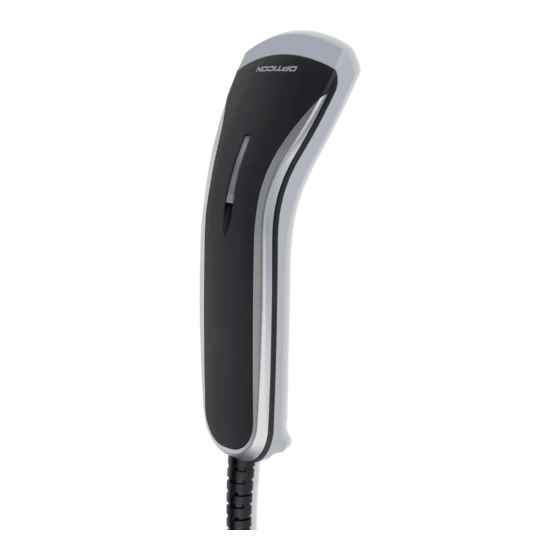

- Page 1 OPR 2001 Laser Barcode Scanner Specifications Manual...
-
Page 2: Warranty
Opticon assumes no liability for any direct, indirect, consequential or incidental damages arising out of use or inability to use both the hardware and software, even if Opticon has been informed about the possibility of such damages. -
Page 3: Table Of Contents
8. Interface Specifications ... 18 8.1. RS-232C Interface ... 18 8.1.1. Settings and Communication ... 18 8.1.2. Signal Level... 18 8.1.3. Pin Assignment ... 19 8.1.4. Interface Circuit... 19 8.1.5. Character Format... 20 8.1.6. Communication Format... 20 Opticon OPR 2001 Specifications Manual... - Page 4 13.4. Static Electricity ...36 13.5. Dust and Drip Proof ... 36 13.6. Cable Strength ... 36 13.6.1. Cable Pulling Test... 36 13.6.2. Cable Tail Bending Test... 36 14. Reliability ... 37 15. Auto Trigger (Option)... 37 Opticon OPR 2001 Specifications Manual...
- Page 5 Figure 18: USB "A" connector ...25 Figure 19: Interface circuit ... 26 Figure 20: DOS/V host connector... 27 Figure 21: DOS/V keyboard connector... 27 Figure 22: RS-232C cable ... 28 Figure 23: USB cable ... 28 Opticon OPR 2001 Specifications Manual...
- Page 6 Opticon OPR 2001 Specifications Manual Figure 24: Wedge cable... 29 Figure 25: Serial number diagram ... 34 Figure 26: Drop test... 35 Figure 27: Cable tail bending test ... 36 Figure 28: Auto trigger operation ... 37 Figure 29: Trigger options... 38...
-
Page 7: Abstract
This manual provides specifications for the OPR 2001 laser barcode scanner. 2. Overview The OPR 2001 is a handheld laser barcode scanner. The use of a short-wavelength red laser beam enhances visibility when scanning lines. The OPR 2001 can be configured to scan both positive and negative barcodes. Scanned data is transferred via an RS-232C, USB, or Wedge interface. -
Page 8: Physical Features
60 grams max. (excluding cable weight) 4. Environmental Specifications 4.1. Operating Temperature and Humidity Temperature: -5° to +50° C Humidity: 20 to 85% RH 4.2. Storage Temperature and Humidity Temperature: -20° to +60° C Humidity: 10 to 90% RH Opticon OPR 2001 Specifications Manual... -
Page 9: Ambient Light Immunity
Direct light or specular reflection light from a source should be prevented from entering the acceptance area. 3,000 lx 3,000 lx 50,000 lx 0.25 mm 9-digit Code-39 10 mm 1:2.5 70 mm α = 0° β = 15° γ = 0° Ｒ = ∞ 5.0 V Opticon OPR 2001 Specifications Manual... -
Page 10: Electrical Specifications
Power supply voltage is measured at a connector terminal area. • The current value depends on the interface type and host computer to which the device is connected. Symbol PEAK Symbol PEAK Opticon OPR 2001 Specifications Manual Unit Notes No buzzer Unit Notes No buzzer... -
Page 11: Optical Specifications
Measurement is done from the center of the laser scan line. Specification Red laser diode 650 ±10 (25° C) 1.0 or less Bi-directional scanning 100 ±20 Scan angle: 54 ±5 Read angle: 44 (Min) Figure 2: Laser scanning tilt and curvature Opticon OPR 2001 Specifications Manual Unit scans/s ° °... -
Page 12: Technical Specifications
Background of label = black 6.0 V (RS-232C) / 5.0 V (USB, Wedge) Approve the performance when decoding is successful in all ten tests. (Decoding is deemed successful when completed in 0.5 seconds or less.) Opticon OPR 2001 Specifications Manual... -
Page 13: Scan Area And Resolution
10 mm 7 mm 5 mm 1:2.5 α = 0°, β = 15°, γ = 0° R = ∞ Opticon OPR 2001 Specifications Manual Depth of Field (mm) 40 to 500 20 to 350 20 to 200 20 to 100... -
Page 14: Pitch, Skew, And Tilt
Opticon OPR 2001 Specifications Manual 7.3. Pitch, Skew, and Tilt Pitch Angle 7.3.1. Scanning performance is guaranteed when α = ±35° Figure 4: Pitch... -
Page 15: Skew Angle And Dead Zone
Opticon OPR 2001 Specifications Manual Skew Angle and Dead Zone 7.3.2. Scanning performance is guaranteed when skew angle: β ≤ ±50° (Excluding dead zone) Dead zone: β = ±8° (There are some areas in which decoding fails due to specular reflection) -
Page 16: Tilt Angle
Figure 6: Tilt angle Conditions Barcode Sample: OPTOELECTRONICS Test Sample Distance: 70 mm from the front edge of the scanner Label: Pitch, Skew Angle, Dead Zone PCS = 0.9, Resolution = 0.25 mm, Symbology = 9-digit Code-39, Quiet Zone = 10 mm, N/W Ratio = 1:2.5 Tilt Angle PCS = 0.9, Resolution = 0.26 mm, Symbology = 13-digit JAN, Quiet Zone = 10 mm... -
Page 17: Curvature
Barcode Sample: OPTOELECTRONICS Test Sample PCS = 0.9, Resolution = 0.26 mm, Quiet Zone = 10 mm Distance: Angle: Figure 7: Curvature 70 mm from the front edge of the scanner Skew Angle β = +15° Opticon OPR 2001 Specifications Manual... -
Page 18: Interface Specifications
8 bits No parity No handshake Indefinitely RS-232C Level (V) Mark/OFF Space/ON -5 to -15 +5 to +15 -3 to -15 +3 to +15 -5 to -15 +5 to +15 -3 to -15 +3 to +15 Opticon OPR 2001 Specifications Manual... -
Page 19: Pin Assignment
Connected to pin 6 with jumper cable. Connected to pin 4 with jumper cable. Open (not connected) SHELL Shield Connector: D-sub, 9-pin, Female Power supply: DC jack, EIAJ voltage Class 2 Interface Circuit 8.1.4. Figure 8: Interface circuit Notes Opticon OPR 2001 Specifications Manual... -
Page 20: Character Format
Select handshaking options using the menu or command listed below. Handshaking No handshake BUSY/READY MODEM ACK/NAK ACK/NAK NO RESPONSE a) No Handshaking The scanner attempts the communication regardless of the state of the host computer. Figure 11: No handshaking Menu/Command Opticon OPR 2001 Specifications Manual... -
Page 21: Figure 12: Busy/Ready Communication
When it is ON, the scanner transmits data. When it is OFF, the scanner waits for it to turn ON within a set time. The scanner will abort transmission with an error indication (buzzer) when the CTS line is not ON within a specified period. -
Page 22: Figure 14: Signal Timing
When the CTS signal is turned ON while transmitting a character, the character will be transmitted. Note: When using loopback (wire connection) for RTS, CTS line of the scanner in this setting, No handshake is not enabled. -
Page 23: Figure 16: Ack/Nak
ACK/NAK After data has been transmitted, the scanner expects to receive one of the following responses from the host: • ACK response—Action: The scanner completes transmission with the good-read buzzer and returns to the initial state. • NAK response—Action: The scanner sends the data again and waits for the response from the host. -
Page 24: Figure 17: Ack/Nak-No Response
ACK/NAK NO RESPONSE When no response from the host is received within the setting time, the scanner assumes an ACK response, and returns to the initial state without the error buzzer. The other actions are the same as ACK/NAK. -
Page 25: Usb Interface Specifications
USB-HID Reading menu barcodes [ZZ] + [SU] + [ZZ] can set the USB-HID interface default. The OPR 2001 USB model uses a full-speed USB interface. b) USB-VCP Reading menu barcodes [ZZ] + [C01] + [ZZ] can set the USB-VCP interface default. -
Page 26: Interface Circuit
Interface Circuit 8.2.3. Do not use the keyboard while the scanner is transmitting the data to the host. Doing so may cause failure in data transactions. 8.3. DOS/V Wedge Interface Specification Settings 8.3.1. a) Desktop PC (When using external keyboard) Reading menu barcodes [ZZ] + [UB] + [KM] + [ZZ] can set the DOS/V Wedge interface default. -
Page 27: Connectors
Contact Number b) DOS/V Keyboard Connector Figure 21: DOS/V keyboard connector Contact Number Do not use the keyboard while the scanner is transmitting the data to the host. Doing so may cause failure in data transactions. Signal Name CPU_DATA CPU_CLK... -
Page 28: Cable And Connector
4 insulated wires, 1 conductive wire Weight: Straight Φ4.8±0.5 mm 1500 +50, -0 mm Approximately 40 g Figure 22: RS-232C cable Straight Φ4.8 ±0.5 mm 1500 +50, -0 mm Approximately 40 g Figure 23: USB cable Opticon OPR 2001 Specifications Manual... -
Page 29: Wedge Cable
6 insulated wires, 1 conductive wire Weight: Approximately 50 g 9.4. Connector Specification (Scanner Side) CN1 (12-pin) Pin No RS-232C －DATA ＋DATA FG (shield) FG (shield) Y cable Figure 24: Wedge cable Wedge KEY_CLK KEY_DATA CPU_CLK CPU_DATA FG (shield) Opticon OPR 2001 Specifications Manual... -
Page 30: Default Settings
Wedge Default (with external keyboard) Functions AT wedge default With keyboard Menu labels Menu codes _ZZ_ _U2_ _ZZ_ Menu labels Menu codes _ZZ_ _SU_ _ZZ_ Menu labels Menu codes _ZZ_ _ZZ_ Menu labels Menu codes _ZZ_ _UB_ _KM_ _ZZ_ Opticon OPR 2001 Specifications Manual... -
Page 31: Default Settings 1: Readable Codes
2of5 Code-11 Code-39 Code-39 Trioptic Code-93 Code-128 EAN-128 IATA Menu codes Transmit Transmit Calculate Code Length — — Opticon OPR 2001 Specifications Manual Others Prefix Suffix — — — — — — — — — — Not transmit — ST/SP Not transmit —... - Page 32 “— “ means “not supported.” • In the “Prefix” column, “—“ means “there is no prefix setting.” Transmit Calculate Code — — — — Opticon OPR 2001 Specifications Manual Others Prefix Suffix — — — — — — Not transmit —...
-
Page 33: Default Settings 2: Read Options, Trigger, Buzzer
● Codabar (NW7) with all lengths ● Code-11 with length <= 5 Enabled Disable trigger repeat Disable auto trigger Margin check normal 50 ms 3 kHz (single tone) Loud (Maximum) Buzzer before transmission Enable startup buzzer 200 ms Opticon OPR 2001 Specifications Manual... -
Page 34: Serial Number
Size of the package (after assembly: 245 (W) x 110 (D) x 40 (H) mm 12.2. Collective Packaging Specification Put 50 individually packaged OPR 2001 scanners in a collective packaging box. Dimensions: 650 mm (W) x 550 mm (D) x 250 mm (H) Note: The “RO”... -
Page 35: Durability
Drop Test (without packaging) 13.2.1. No malfunction occurred after the following drop test. Drop Test: Drop the scanner from a height of 150 cm onto a concrete floor three times on each of 5 sides. Drop Test (with individual packaging) 13.2.2. -
Page 36: Vibration Strength
13.6. Cable Strength Cable Pulling Test 13.6.1. No malfunction occurred after the following pulling test. Pulling test: Fix the scanner and pull the cable with the force of 2.5 kg (24.5N) for 1 second. Repeat 20 times. Cable Tail Bending Test 13.6.2. -
Page 37: Reliability
15. Auto Trigger (Option) The product has an optional auto trigger setting, which starts barcode reading automatically by using sensor detection. The scanner starts barcode reading after detecting reflection from the surface when the auto trigger is used. Auto trigger distance: 50 ±10 mm from the edge of the scanner. -
Page 38: Auto Trigger Settings
Enable auto trigger only when the scanner is inserted into the stand. Functions Enable auto trigger Enable auto trigger stand detection (If the scanner is removed from the stand, auto trigger is disabled and the scanner should be triggered manually.) Menu labels Menu codes... -
Page 39: Always
A magnetic switch and a magnet are used for stand detection operation. Therefore, auto trigger may be activated when there is a magnetic substance nearby. Menu labels Menu codes _ZZ_ _+I_ _*5_ _ZZ_ Menu labels Menu codes _ZZ_ _+F_ _*4_ _ZZ_ Opticon OPR 2001 Specifications Manual... -
Page 40: Regulatory Compliance
(2) this device must accept any interference received, including interference that may cause undesired operation. 16.4. Compliance to RoHS RoHS: The restriction of the use of certain hazardous substances in electrical and electronic equipment, 2002/95 EC Opticon OPR 2001 Specifications Manual... -
Page 41: Safety
Do not plug/unplug the connectors before disconnecting the power. • Do not disassemble this product. • Do not use the scanner near a radio or a TV receiver. It may cause reception problems. • The scanner may be damaged by voltage drops. -
Page 42: Mechanical Drawing
Opticon OPR 2001 Specifications Manual 18. Mechanical Drawing Dimensions: 151.0 mm x 56.0 mm x 30.5 mm (except protruding parts) Figure 30: Mechanical drawing...
