Ac Input; Dc Output; Optical Specifications; Laser Scan Specifications - Opticon OPR 3201 Specification Manual

AC Input

6.3.1.
Dimensions: 47.5 (W) × 28.0 (D) × 75.0 (H) mm (except protruding portion)

DC Output

6.3.2.

7. Optical Specifications

7.1. Laser Scan Specifications

Parameter
Light-emitting element
Emission wavelength
Light output
Scanning method
Scanning speed
Scan angle
Notes:
Refer to chapter 16, "Trigger and Read Options," to read about the scan modes.

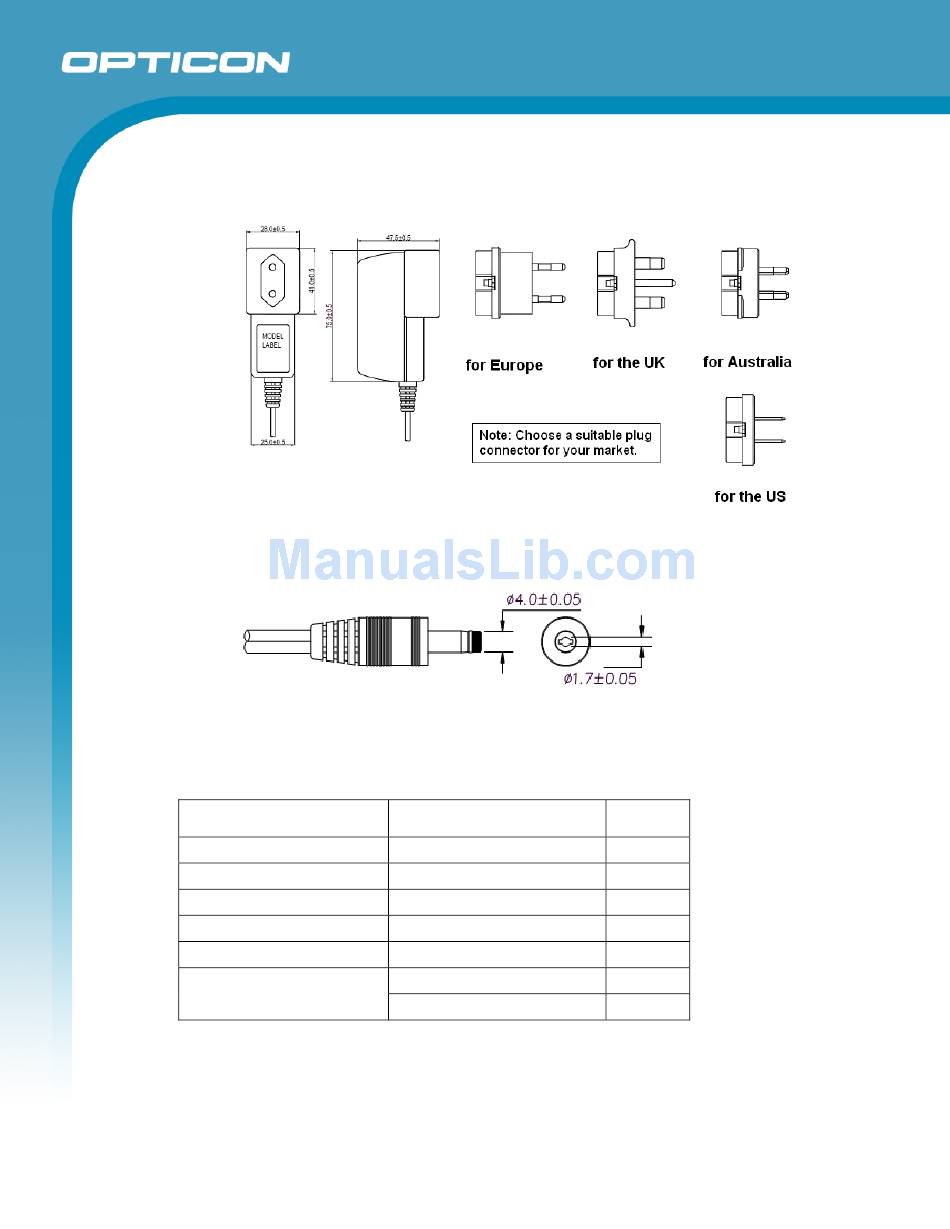

Figure 3: AC adapter 1

Figure 4: AC adapter 2

Specification
Red laser diode
650 ±10 (25° C)
1.0 or less
Bi-directional scanning
100 ±20
Scan angle: 54 ±5
Read angle: 44 (Min)
12
OPR 3201
Specifications Manual
Unit
—
nm
mW
—
scans/s
°
°
Opticon
