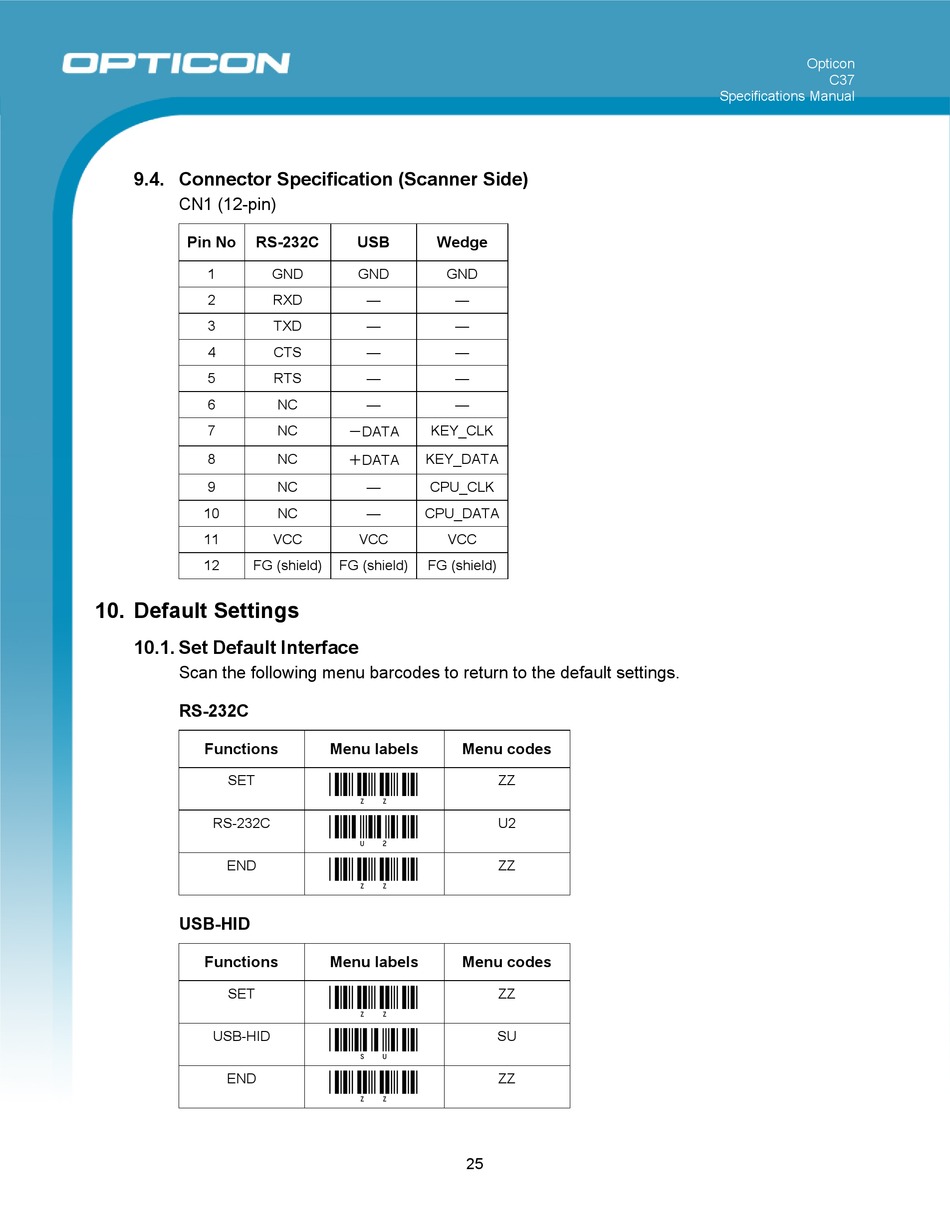

9.4. Connector Specification (Scanner Side)

CN1 (12-pin)
Pin No RS-232C
1 GND
2 RXD
3 TXD
4 CTS
5 RTS
6
7
8
9
10
11 VCC
12 FG (shield)

10. Default Settings

10.1. Set Default Interface

Scan the following menu barcodes to return to the default settings.
RS-232C
Functions
SET
RS-232C
END
USB-HID
Functions
SET
USB-HID
END
USB Wedge
GND GND
— —
— —
— —
— —
NC — —
NC KEY_CLK
－DATA
NC KEY_DATA
＋DATA
NC — CPU_CLK
NC — CPU_DATA
VCC VCC
FG (shield) FG (shield)
Menu labels
_ZZ_
_U2_
_ZZ_
Menu labels
_ZZ_
_SU_
_ZZ_
Menu codes
ZZ
U2
ZZ
Menu codes
ZZ
SU
ZZ
25
