- Page 1 OPR 3001 Rugged Handheld Laser Scanner Specifications Manual...
-
Page 2: Serial Number
In such cases, standard repair charges will apply. If a product is returned under warranty and no defect is found, standard repair charges will apply. Opticon Inc. assumes no liability for any direct, indirect, consequential or incidental damages arising out of use or inability to use both the hardware and software, even if Opticon has been informed about the possibility of such damages. -
Page 3: Table Of Contents
8.1. RS-232C Interface Specification... 16 8.1.1. Settings and Communication ... 16 8.1.2. Signal Level... 16 8.1.3. Interface Circuit... 17 8.1.4. Character Format... 17 8.1.5. Communication Format... 18 8.1.6. Handshaking ... 18 8.2. USB Interface Specification ... 23 Opticon OPR 3001 Specifications Manual... - Page 4 13.6. Cable Strength ... 36 13.6.1. Cable Pull Strength ... 36 13.6.2. Cable Bend Strength... 36 14. Reliability ... 36 15. Auto Trigger (Option)... 37 15.1.1. Auto Trigger Settings ... 38 16. Regulatory Compliance ... 38 Opticon OPR 3001 Specifications Manual...
- Page 5 Figure 22: Serial number diagram ... 31 Figure 23: Individual packaging ... 32 Figure 24: Collective packing... 33 Figure 25: Product drop test ... 35 Figure 26: Cable bend strength ...36 Figure 27: Auto trigger ... 37 Figure 28: Mechanical drawing...40 Opticon OPR 3001 Specifications Manual...
-
Page 6: Abstract

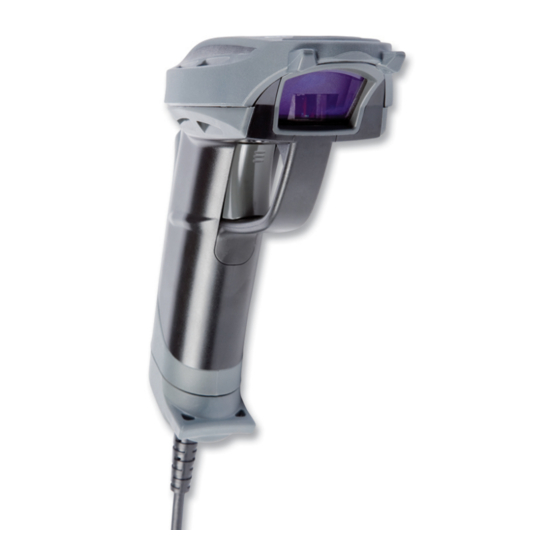

This manual provides specifications for the OPR 3001 handheld laser barcode scanner. 2. Overview The OPR 3001 is a rugged handheld laser barcode scanner with protection against dust and splashing water to ensure reliable operation in harsh environments. The OPR 3001 is enclosed in a rugged housing sealed to IP-54 standards that withstands repeated drops of up to two meters onto concrete. -
Page 7: Physical Features
Decoding performance is guaranteed when the range of illumination on a barcode surface is between zero and the following values: Incandescent light Fluorescent light Sunlight to 4,000 lx to 4,000 lx to 80,000 lx Figure 1: Ambient light immunity Opticon OPR 3001 Specifications Manual... -
Page 8: Electrical Specifications
100 mm from the edge of scanner α = 0° β = 15° γ = 0° R = ∞ 6.0 V Symbol Unit PEEK Opticon OPR 3001 Specifications Manual Remarks RS-232C USB and Wedge RS-232C when emitting USB and Wedge when emitting laser RS-232C... -
Page 9: Optical Specifications
Specification Red laser diode 650 ±10 (25° C) 1.0 or less Bi-directional scanning 100 ±20 Scan angle: 54 ±5 Effective scan angle: 44 (Min) Figure 2: Laser scanning tilt and curvature Opticon OPR 3001 Specifications Manual Unit scans/s ° °... -
Page 10: Technical Specifications
Background of label = black 6.0 V (RS-232C) / 5.0 V (USB and Wedge) Approve the performance when decoding is successful in all ten tests. (Decoding is deemed successful when completed in 0.5 second or less.) Opticon OPR 3001 Specifications Manual... -
Page 11: Scan Area And Resolution
7.2. Scan Area and Resolution The depth of field is measured from the edge of the scanner. The scanning range is within the circular arc centered on the scan origin. Resolution Symbology 1.0 mm CODE-39 0.5 mm CODE-39 0.25 mm CODE-39 0.15 mm... -
Page 12: Pitch, Skew, And Tilt
Opticon OPR 3001 Specifications Manual 7.3. Pitch, Skew, and Tilt Pitch Angle 7.3.1. α = ±35° Figure 4: Pitch... -
Page 13: Skew Angle And Dead Zone
Opticon OPR 3001 Specifications Manual Skew Angle and Dead Zone 7.3.2. Skew angle: β = ±50° (Excluding dead zone) Dead zone: β = ±8° (There are some areas in which decoding fails due to specular reflection) Figure 5: Skew angle and dead zone... -
Page 14: Tilt Angle
γ = ±20° Conditions Barcode Sample: OPTOELECTRONICS Test Sample Distance: 60 mm from the edge of the scanner Label: Pitch Angle, Skew Angle, Dead Zone PCS = 0.9, Resolution = 0.25 mm, Symbology = 9-digit Code-39, Quiet Zone = 10 mm N/W Ratio = 1:2.5... -
Page 15: Curvature
With 13-digit JAN/UPC/EAN barcodes, decoding performance is guaranteed when R≥20 Conditions Barcode Sample: OPTOELECTRONICS Test Sample PCS = 0.9, Resolution = 0.26 mm, Quiet Zone = 10 mm Distance: 60 mm from the edge of the scanner Angle: Skew Angle β = +15° Figure 7: Curvature Opticon... -
Page 16: Interface Specifications
8 bits No parity No handshake Indefinitely RS-232C Level (V) Mark/OFF Space/ON -5 to -15 +5 to +15 -3 to -15 +3 to +15 -5 to -15 +5 to +15 -3 to -15 +3 to +15 Opticon OPR 3001 Specifications Manual... -
Page 17: Interface Circuit
Interface Circuit 8.1.3. Character Format 8.1.4. Figure 9:Character format (same for both sending and receiving) Figure 8: Interface circuit Opticon OPR 3001 Specifications Manual... -
Page 18: Communication Format
Figure 11: No handshaking b) BUSY/READY The scanner and the host computer notify each other of their state and whether they can receive data with BUSY/READY through an RTS line. They can communicate state to each other through a CTS line when connected as in the following figure. -
Page 19: Figure 13: Cannot Receive Command
400 ms CTS, TxD signal timing When the CTS line is turned OFF while sending a TxD signal, the scanner transmits one character and waits. When the RTS signal is turned ON while transmitting a character, the character will be transmitted. -
Page 20: Figure 15: Modem Transmit Data
Opticon OPR 3001 Specifications Manual c) MODEM The scanner turns CS line ON before transmitting data. Other processes are the same as BUSY/READY. Figure 15: Modem transmit data... -
Page 21: Figure 16: Ack/Nak
ACK/NAK After data has been transmitted, the scanner expects to receive one of the following responses from the host: • ACK response—Action: The scanner completes transmission with the good-read buzzer and returns to the initial state. • NAC response—Action: The scanner sends the data again and waits for the response from the host. -
Page 22: Figure 17: Ack/Nak-No Response
ACK/NAK NO RESPONSE When no response from the host is received within the setting time, the scanner assumes an ACK response, and returns to the initial state without the error buzzer. The other actions are the same as ACK/NAK. -
Page 23: Usb Interface Specification
Settings and Communication 8.2.1. Reading menu barcodes [ZZ] + [SU] + [ZZ] can set the USB interface default. The OPR 3001 USB model uses a full-speed USB interface. Interface Circuit 8.2.2. Do not operate the keyboard while the scanner is transmitting the data to the host;... -
Page 24: Cable And Connector
1500 ±50 , -0 mm 8 insulated wires, 1 conductive wire Approximately 80 g Figure 19: RS-232C cable Signal Name Notes Open (not assigned) Pin no. 6 and jumper Pin no. 4 and jumper Open (not assigned) Opticon OPR 3001 Specifications Manual... -
Page 25: Usb Cable
Type: Straight Diameter: Φ4.8 ±0.5 mm Length: 1500 ±50, -0 mm Cores: 4 insulated wires, 1 conductive wire Weight: Approximately 60 g a) Pin Assignment Pin No Signal Name -DATA +DATA Figure 20: USB cable Opticon OPR 3001 Specifications Manual... -
Page 26: Wedge Cable
8 insulated wires, 1 conductive wire Weight: Approximately 80 g a) Pin Assignment DOS/V Host Side Pin No Signal Name CPU_DATA CPU_CLK Figure 21: Wedge cable DOS/V Keyboard Side Pin No Opticon OPR 3001 Specifications Manual Signal Name KEY_DATA KEY_CLK... -
Page 27: Scanner Connector Specification
9.2. Scanner Connector Specification CN801 (13-pin) Pin Number RS-232C 10. Readable Barcodes 10.1. Menu Barcodes: Default Settings Default menu barcodes set the scanner to factory defaults. RS-232C Default Functions RS-232C Single tone buzzer: 3 kHz* Buzzer duration: 50 ms* Read mode... - Page 28 AT Wedge _UB_ default Keyboard layout: _KM_ with keyboard _ZZ_ Wedge Default (without external keyboard) Functions Menu labels _ZZ_ AT Wedge _UB_ default Keyboard layout: _KL_ without keyboard _ZZ_ Menu codes Menu codes Menu codes Opticon OPR 3001 Specifications Manual...
-
Page 29: Default Settings 1: Readable Codes
S-Code MSI/Plessey UK/Plessey Telepen Matrix2of5 Chinese Post Matrix 2of5 IATA RSS-14 RSS-limited RSS-expanded PDF417 MicroPDF417 Code 11 Transmit Transmit Calculate Code Length Opticon OPR 3001 Specifications Manual Prefix Suffix Transmit Other Not transmit ST/SP Not transmit ST/SP Not transmit ST/SP... -
Page 30: Default Settings 2: Read Options, Trigger, Buzzer
Disable multiple columns read Read 1 times, redundancy = 0 Enable trigger Disable trigger repeat Disable auto trigger 2 seconds Margin check normal 50 ms 3 kHz (single tone) Maximum Buzzer before transmission Enable startup buzzer 200 ms Opticon OPR 3001 Specifications Manual... -
Page 31: Serial Number
Opticon OPR 3001 Specifications Manual 11. Serial Number The serial number as shown below is affixed to the scanner. Figure 22: Serial number diagram... -
Page 32: Packaging Specifications
12. Packaging Specifications 12.1. Individual Packaging Specification Put the scanner in a protective foam bag and place it in a single packing box. The scanner shown is an RS-232C unit. Descriptions on an individual packaging box label differ, depending on the interface type. The “RO” mark may be indicated on the upper side of the individual packaging box label. -
Page 33: Collective Packaging Specification
Specifications Manual 12.2. Collective Packaging Specification The scanner shown is an RS-232C unit. Descriptions on a collective packaging box label differ, depending on the interface type. The “RO” mark may be indicated on the upper side of the individual packaging box label. -
Page 34: Durability
6.0 V (RS-232C) / 5.0 V (USB and Wedge) 8 kV max (No malfunction) 15 kV max (No destruction) 6 kV Contact discharge at the hook and the screw Use electrostatic testing device compliant with IEC 61000-4-2 330 Ω 150 pF Opticon OPR 3001 Specifications Manual... -
Page 35: Shock
13.3. Shock Product Drop Test 13.3.1. No malfunction should occur after the following drop test. As shown below, drop the scanner from 200 centimeters above the concrete floor (three times from each of 6 angles). Shock: Individual Package Drop Test 13.3.2. -
Page 36: Cable Strength
13.6. Cable Strength Cable Pull Strength 13.6.1. Affixed the scanner to an immovable object and pulled it using a force of 49N (5.0 kgf) for 1 minute. Observed no abnormality in either structure or performance. Cable Bend Strength 13.6.2. As shown below, added a load of 4.9N (500 g) to a cable then bent it at an angle of 90 degrees to both right and left. -
Page 37: Auto Trigger (Option)
15. Auto Trigger (Option) The OPR 3001 has an optional auto trigger setting, which starts barcode reading automatically by using sensor detection. When auto trigger is enabled, a laser beam is emitted and points to the auto trigger area. The scanner starts barcode reading after detecting reflection from the surface when the auto trigger is used. -
Page 38: Auto Trigger Settings
16.4. RoHS The restriction of the use of certain hazardous substances in electrical and electronic equipment, 2002/95 EC Menu labels Menu codes _ZZ_ _+F_ _+I_ _ZZ_ Opticon OPR 3001 Specifications Manual... -
Page 39: Safety
Do not plug/unplug the connectors before disconnecting the power. • Do not disassemble this product. • Do not use the scanner near a radio or a TV receiver. It may cause reception problems. • The scanner may be damaged by voltage drops. -
Page 40: Mechanical Drawing
Opticon OPR 3001 Specifications Manual 18. Mechanical Drawing Dimensions: 3 W 68 X D 150 X H 155 (mm) (except protruding portion) Figure 28: Mechanical drawing...
