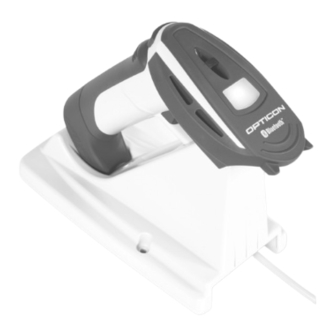

Opticon OPR 3101 Brief Setup
Hide thumbs Also See for OPR 3101:

Advertisement

Quick Links

CAUTION: This information is subject to
change without prior notice.
Copyright 2007, Opticon Sensors Europe
B.V. All rights reserved.
This manual may not, in whole or in part, be
copied, photocopied, reproduced, translated or
converted to any electronic or machine
readable form without prior written consent of
Opticon Sensors Europe.
THE GENERAL USE AND FUNCTIONING OF
THE BAR CODE SCANNER IS DESCRIBED
IN THIS DOCUMENT. ALSO GENERAL
SETUP INSTRUCTIONS TO GET STARTED
ARE DESCRIBED IN THIS DOCUMENT. FOR
FURTHER INSTRUCTIONS CONSULT
OPTICON OR YOUR LOCAL DEALER.
Version1 - printedJuly, 2007
BRIEF SETUP
OPR 3101 CONFIGURATION
INSTRUCTIONS
The reader is configured to default factory settings
and is supplied with information that gives you a
quick understanding of the product. More product
details, additional support, or configuration options
to your own preferences (by Universal menu book)
will be updated at www.opticon.com
To enable the reader to communicate to another
device, different steps can be taken, depending on
the situation.
Overview of situations
• The address of the device must be configured in
the reader. Possibly the address of the device
needs to be retrieved first.
• To connect an Opticon reader to an USB-HID
cradle, the reader must be configured.
• To connect an Opticon reader to a third party
dongle, the reader must be configured.
• In case a third party dongle is used, the address
and pin code need to be configured manually.
Consult your dongle's manual how to obtain the
address and configure the pin code. You need
this information to configure the bar code reader.
The dongle's driver installs a serial port on the
computer, which is used by the bar code reader
to transmit the data.
• The reader can connect by scanning the other
device's address label.
• To stop the connection manually use the special
disconnection label.
The necessary steps and instructions are
explained on the next pages:
OPTICON - 1
