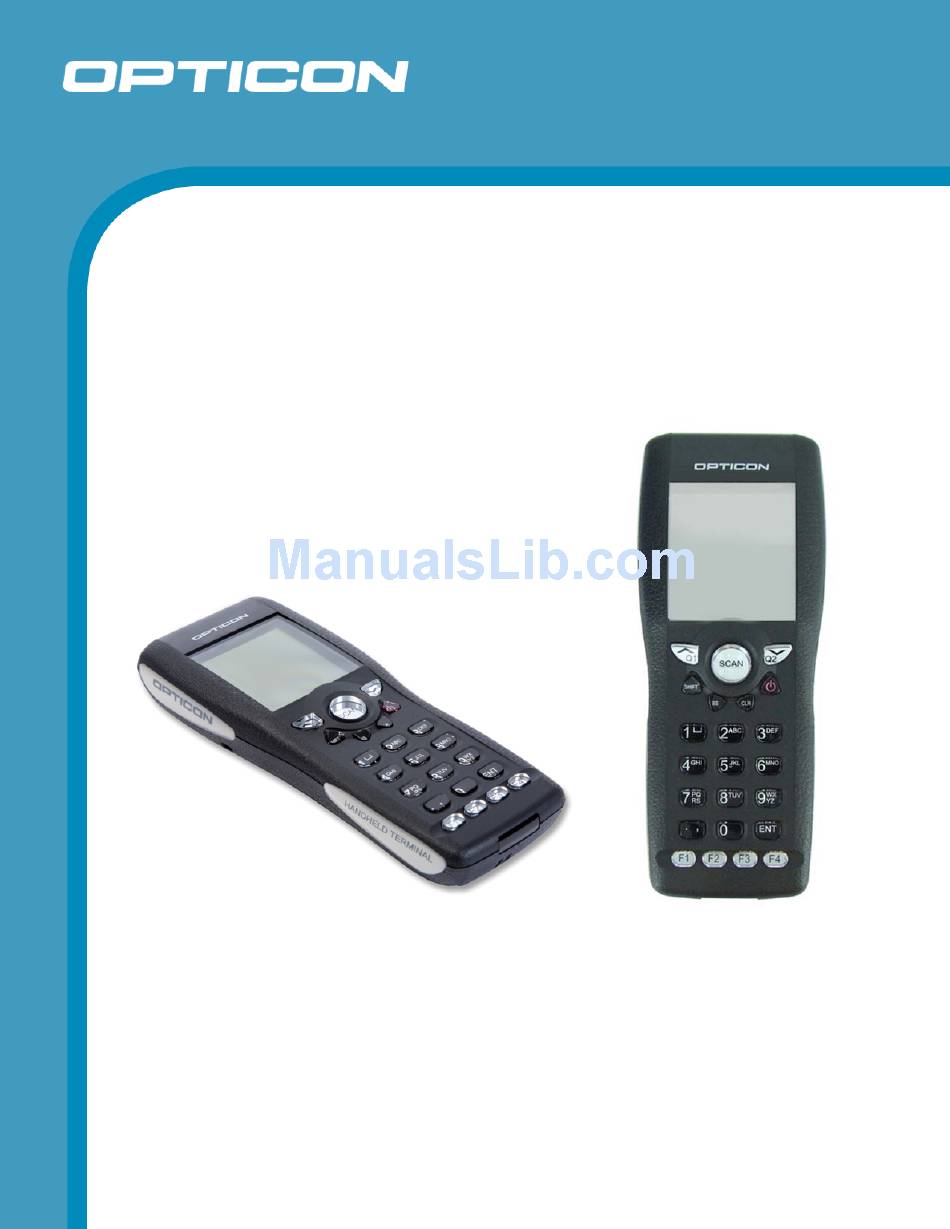

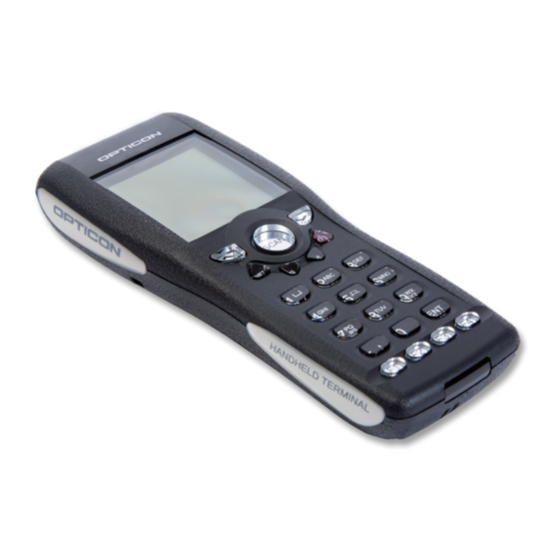

- Page 1 Portable Terminal OPH 1004 The OPH 1004 is a portable terminal with a built-in Specifications Manual laser scan engine.
- Page 2 Opticon assumes no liability for any direct, indirect, consequential or incidental damages arising out of use or inability to use both the hardware and software, even if Opticon has been informed about the possibility of such damages.
-
Page 3: Table Of Contents
Opticon OPH 1004 Specifications Manual Contents 1. Abstract ............................5 2. Overview............................5 3. Physical Features ........................6 3.1. Dimensions ......................... 6 3.2. Weight ..........................6 4. Environmental Specifications ....................7 4.1. Operating Temperature and Humidity ................. 7 4.2. Charging Temperature ......................7 4.3. - Page 4 Opticon OPH 1004 Specifications Manual 10. Serial Number ........................... 17 11. Packaging Specifications ......................18 11.1. Individual Packaging Specification..................18 11.2. Collective Packaging Specification ................... 19 12. Durability ........................... 20 12.1. Static Electricity......................... 20 12.2. Shock ..........................20 12.3. Vibration Strength ......................20 12.4.
-
Page 5: Abstract
“scanner”). 2. Overview The OPH 1004 is a portable terminal with a built-in laser scan engine. Barcodes and data input are stored in the terminal’s internal memory using various keys. Stored data can be sent to a host via infrared transmission (IrDA version 1.2) using the CRD 1001 dedicated cradle or the CRD 1002 analog modem cradle or the CRD 1003 GSM modem cradle. -
Page 6: Physical Features
Opticon OPH 1004 Specifications Manual An application development kit for the development of a customer’s original application is available as an option. Development language: C language. [Contents] • Application Development Specification Manuals • Development Library 3. Physical Features 3.1. Dimensions W 55.0 x D 23.0 x H 136.0 mm... -
Page 7: Environmental Specifications
Opticon OPH 1004 Specifications Manual 4. Environmental Specifications 4.1. Operating Temperature and Humidity Temperature: -10 to 50° C Humidity: 20% to 85% RH 4.2. Charging Temperature Temperature: 0 to 40° C 4.3. Storage Temperature and Humidity Temperature: -20 to 60° C Humidity: 20% to 85% RH 4.4. -
Page 8: Controls
Opticon OPH 1004 Specifications Manual 5. Controls Items Specifications Remarks Type ARM7TDMI 32-bit MCU with Flash STR710F Internal ROM 256 + 16 KB Internal RAM 64 KB Clock frequency 48 MHz FLASH ROM 4 MB Memory SRAM 16 MB NAND Flash... -
Page 9: Electrical Specifications
Opticon OPH 1004 Specifications Manual 6. Electrical Specifications 6.1. Electrical Characteristics Parameter Unit Remarks Operating voltage 3.6–4.2 Lithium-ion battery Operating current When laser emitting Stand-by current <22 Sleep current <5 When the power is OFF 6.2. Main Battery The main battery is a lithium-ion battery: •... -
Page 10: Optical Specifications
Opticon OPH 1004 Specifications Manual 7. Optical Specifications 7.1. Laser Scan Specifications Parameter Specification Unit Light-emitting element Red laser diode — Emission wavelength 650 ±10 (25° C) Light output 1.0 or less Scanning method Bi-directional scanning — Scanning speed 100 ±20... -
Page 11: Technical Specifications
Opticon OPH 1004 Specifications Manual 8. Technical Specifications The conditions for technical specifications are as follows, unless otherwise specified in each section. Conditions Ambient temperature Room temperature (5 to 35º C) and humidity: Room humidity (45% to 85% RH) Ambient light:... -
Page 12: Scan Area And Resolution
Opticon OPH 1004 Specifications Manual 8.3. Scan Area and Resolution Depth of Field 8.3.1. The depth of field is measured from the edge of the scanner. The scanning range is within the circular arc centered on the scan origin. Figure 2: Depth of field... -
Page 13: Pitch, Skew, And Tilt
Opticon OPH 1004 Specifications Manual Resolution (mm) Symbology Quiet Zone Digits Code 39 25 mm Code 39 18 mm 0.25 Code 39 10 mm 0.15 Code 39 7 mm 8.4. Pitch, Skew, and Tilt Pitch Angle 8.4.1. α = ±35°... -
Page 14: Skew Angle And Dead Zone
Opticon OPH 1004 Specifications Manual Conditions Barcode Sample: OPTOELECTRONICS Test Sample Distance 96 mm from the edge of the scanner Label Pitch Angle, Skew Angle, Dead Zone PCS = 0.9, Resolution = 0.25mm, Symbology = 9-digit Code 39, Quiet Zone = 10 mm, N/W Ratio = 1:2.5 Tilt Angle PCS = 0.9, Resolution = 0.26mm, Symbology = 13-digit JAN,... -
Page 15: Tilt Angle
Opticon OPH 1004 Specifications Manual Conditions Barcode Sample: OPTOELECTRONICS Test Sample Distance 96 mm from the edge of the scanner Label Pitch Angle, Skew Angle, Dead Zone PCS = 0.9, Resolution = 0.25mm, Symbology = 9-digit Code 39, Quiet Zone = 10 mm, N/W Ratio = 1:2.5 Tilt Angle PCS = 0.9, Resolution = 0.26mm, Symbology = 13-digit JAN,... -
Page 16: Curvature
Opticon OPH 1004 Specifications Manual 8.5. Curvature With 8-digit JAN/UPC/EAN barcodes, decoding performance is guaranteed when R≥15 mm. With 13-digit JAN/UPC/EAN barcodes, decoding performance is guaranteed when R≥20 mm. Figure 6: Curvature Conditions Barcode Sample: OPTOELECTRONICS Test Sample PCS = 0.9, Resolution = 0.26 mm, Quiet Zone = 10 mm... -
Page 17: Interface Specifications
Opticon OPH 1004 Specifications Manual 9. Interface Specifications 9.1. Infrared Transmission (IrDA) Specifications 9.1.1. IrDA version 1.2 standard (physical layer only). Transmission speed 9.1.2. Transmission speeds: 115.2 kbps, 38.4 kbps, 19.2 kbps, 9600 bps, 4800 bps, or 2400 bps. 10. Serial Number The serial number as shown below is affixed to the scanner. -
Page 18: Packaging Specifications
Opticon OPH 1004 Specifications Manual 11. Packaging Specifications 11.1. Individual Packaging Specification After putting a scanner in a plastic bag, pack it in a separate box with the accessories. Put a label on the side of the individual packing box. -
Page 19: Collective Packaging Specification
Opticon OPH 1004 Specifications Manual 11.2. Collective Packaging Specification Put 50 individual boxes with scanners inside a box. Figure 9: Collective packaging Note: The “RO” mark labeled on the package tray or package box guarantees that the applicable product has passed our test of RoHS restrictions compliance (the restriction of the use of certain hazardous substances in electrical and electronic equipment, 2002/95 EC). -
Page 20: Durability
Opticon OPH 1004 Specifications Manual 12. Durability 12.1. Static Electricity Air discharge: ± 8 kV MAX (No malfunction) ± 15 kV MAX (No destruction) Contact discharge: ± 4 kV MAX (No malfunction) ± 8 kV MAX (No destruction) 12.2. Shock There was no sign of malfunction with the scanner’s structural performance after the... -
Page 21: Regulatory Compliance
Opticon OPH 1004 Specifications Manual 13. Regulatory Compliance 13.1. Laser Safety The scanner emits laser beams. JIS C6802: 2005: Laser Class 2 IEC 60825-1+A2:2001 Laser Class 2 CDRH Laser Class 2 FDA CDRH Laser class II. Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to laser notice No. -
Page 22: Safety
Opticon OPH 1004 Specifications Manual 14. Safety Handle this product carefully. Do not deliberately subject it to any of the following. 14.1. Shock Do not throw or drop the scanner. Do not place heavy objects on the cables. 14.2. Temperature Conditions Do not use the scanner at temperatures outside the specified range. -
Page 23: Mechanical Drawing
Opticon OPH 1004 Specifications Manual 15. Mechanical Drawing Figure 10: Mechanical drawing...
