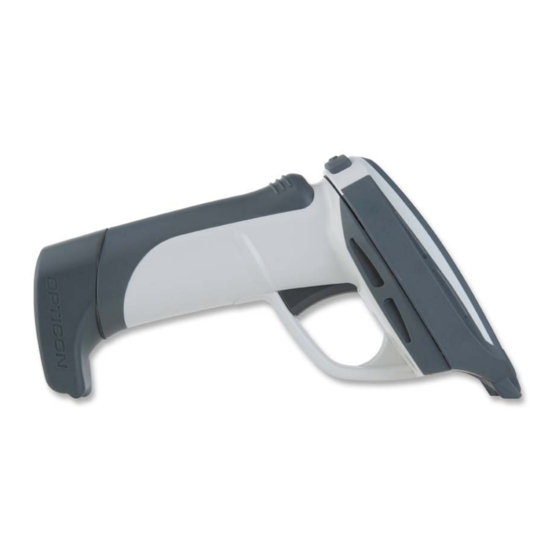

Rugged wireless laser barcode scanner opr 3101
Hide thumbs
Also See for OPR 3101:
- Specifications (2 pages) ,
- Brief setup (4 pages) ,
- Quick start manual (4 pages)
Related Manuals for Opticon OPR 3101
Summary of Contents for Opticon OPR 3101
- Page 1 Rugged Wireless Laser Barcode Scanner OPR 3101 The OPR 3101 scanner uses Bluetooth technology Specifications Manual for wireless transmission of scanned barcode data.
-
Page 2: Document History
Opticon assumes no liability for any direct, indirect, consequential or incidental damages arising out of use or inability to use both the hardware and software, even if Opticon has been informed about the possibility of such damages. -
Page 3: Table Of Contents
Opticon OPR 3101 Specifications Manual Contents 1. Abstract ............................6 2. Overview............................6 3. Physical Features ........................7 3.1. Dimensions ......................... 7 3.2. Weight ..........................7 4. Environmental Specifications ....................8 4.1. Operating Temperature and Humidity ................. 8 4.2. Charging Temperature ......................8 4.3. - Page 4 Opticon OPR 3101 Specifications Manual 7.5. Curvature .......................... 19 8. Interface Specifications ......................20 8.1. Wireless Interface ......................20 8.2. Radio Equipment....................... 21 8.3. Frequency Band........................ 21 9. Default Settings ........................22 9.1. Set Default Interface ......................22 9.2. Default Settings 1: Readable Codes ................. 22 9.3.
- Page 5 17. Mechanical Drawing ......................... 35 Table of Figures Figure 1: Ambient light immunity ....................9 Figure 2: Configuration of OPR 3101..................10 Figure 3: Laser scan tilt and curvature ..................14 Figure 4: Depth of field....................... 15 Figure 5: Pitch ..........................16 Figure 6: Skew and dead zone....................
-
Page 6: Abstract
• Rechargeable in the designated cradles: It takes only about 5 hours to fully recharge the OPR 3101 in the designated cradle CHG-3101 or CRD-3101. The CHG- 3101 recharges the scanner while the CRD-3101 offers both recharging and communication features. (It takes about 10 hours to recharge the battery using USB bus power.) -
Page 7: Physical Features
Opticon OPR 3101 Specifications Manual Supported symbologies: Linear (1D) Postal JAN/UPC/EAN, incl. add-on Chinese Post Composite codes Codabar/NW-7 Korean Postal MicroPDF417 Authority Code Code 11 PDF417 Code 39 Code 93 Code 128 GS1-128 (EAN-128) GS1 Databar (RSS) IATA Industrial 2of5... -
Page 8: Environmental Specifications
Opticon OPR 3101 Specifications Manual 4. Environmental Specifications 4.1. Operating Temperature and Humidity Temperature: -10 to 60° C Humidity: 5 to 95% 4.2. Charging Temperature Temperature: 0 to 40° C Note: Battery charging may stop when the scanner is charged at a temperature higher than 40°... -
Page 9: Ambient Light Immunity
Opticon OPR 3101 Specifications Manual 4.4. Ambient Light Immunity Decoding performance is guaranteed when the range of illumination on a barcode surface is between zero and the following values: Incandescent light 4,000 lx Fluorescent light 4,000 lx Sunlight 80,000 lx... -
Page 10: Electrical Specifications
5. Electrical Specifications 5.1. Configuration The OPR 3101 consists of three subsections: a laser scan engine, which converts scanned data into analog signals and outputs the data; a decoding and communication section, which decodes the data and controls the system; and a power supply and interface section. -
Page 11: Charging Current
3 to 6 V. Note: Model names of AC adaptors dedicated to CHG-3101 and CRD-3101. - Model for OSE and OPTICON: GP-ACGN13T-K4-2 - Model for Japan and North American Market: GP-ACGN13U-K4-2 5.5. -
Page 12: Operating Indicators
Opticon OPR 3101 Specifications Manual 5.6. Operating Indicators LED Indicators 5.6.1. The OPR 3101 signals its operating status with LEDs. Status Color Display Operating Status Lighting Shows that the scanner is being charged. Charging Green Lighting The light changes to green from red when charging is completed. -
Page 13: Optical Specifications
Opticon OPR 3101 Specifications Manual 6. Optical Specifications 6.1. Laser Scan Specifications Parameter Specification Unit Light-emitting element Red laser diode — Emission wavelength 650 ±10 (25° C) Light output 1.0 or less Scanning method Bi-directional scanning — Scanning speed 100 ±20... -
Page 14: Technical Specifications
Opticon OPR 3101 Specifications Manual Figure 3: Laser scan tilt and curvature 7. Technical Specifications The conditions for technical specifications are as follows, unless otherwise specified in each section. Conditions Ambient temperature Room temperature (5 to 35º C) and humidity:... -
Page 15: Scan Area And Resolution
Opticon OPR 3101 Specifications Manual 7.3. Scan Area and Resolution Depth of Field 7.3.1. The depth of field is measured from the edge of the scanner. The scanning range is within the circular arc centered on the scan origin. Figure 4: Depth of field. -
Page 16: Pitch, Skew, And Tilt
Opticon OPR 3101 Specifications Manual Conditions: Barcode Sample: OPTOELECTRONICS Test Sample N/W Ratio: 1:2.5 Angle: α = 0°, β = 15°, γ = 0° Curvature: R = ∞ Resolution Symbology Quiet Zone Digit 1.0 mm Code 39 25 mm 0.5 mm... -
Page 17: Skew Angle And Dead Zone
Opticon OPR 3101 Specifications Manual Skew Angle and Dead Zone 7.4.2. Skew angle: β = ±50° (Excluding dead zone) Dead zone: β = ±8° (There are some areas in which decoding fails due to specular reflection) Figure 6: Skew and dead zone... -
Page 18: Tilt Angle
Opticon OPR 3101 Specifications Manual Tilt Angle 7.4.3. γ = ±20° Figure 7: Tilt angle Conditions Barcode Sample: OPTOELECTRONICS Test Sample Distance: 60 mm from the edge of the scanner Label: Pitch, Skew Angle, Dead Zone PCS = 0.9, Resolution = 0.25 mm, Symbology = 9-digit Code 39, Quiet Zone = 10 mm, N/W Ratio = 1:2.5... -
Page 19: Curvature
Opticon OPR 3101 Specifications Manual 7.5. Curvature With 8-digit JAN/UPC/EAN barcodes, decoding performance is guaranteed when R≥15 mm. With 13-digit JAN/UPC/EAN barcodes, decoding performance is guaranteed when R≥20 mm. Figure 8: Curvature Conditions Barcode Sample: OPTOELECTRONICS Test Sample Distance: 60 mm from the edge of the scanner Label: PCS = 0.9, Resolution = 0.26 mm, Quiet Zone = 10 mm... -
Page 20: Interface Specifications
OPTOELECTRONICS Co., Ltd. under license. The OPR 3101 supports Bluetooth wireless communication with other Bluetooth devices that have the same profile. The OPR 3101 complies with Bluetooth version. 2.0; however, its communication performance with equipment other than cradles or devices stated in this manual is not guaranteed. -
Page 21: Radio Equipment
Opticon OPR 3101 Specifications Manual Notes 1. This product complies with Bluetooth standards. The device that communicates with this product must support the same SPP. For other Bluetooth devices with other profiles we cannot guarantee a connection before the products have been tested. -
Page 22: Default Settings
Opticon OPR 3101 Specifications Manual 9. Default Settings 9.1. Set Default Interface Scan the following menu barcodes to return to the default settings. Bluetooth Functions Menu labels Menu codes _ZZ_ _UB_ Bluetooth _ZZ_ 9.2. Default Settings 1: Readable Codes Symbology... - Page 23 Opticon OPR 3101 Specifications Manual Symbology Read Transmit Transmit Calculate Other Code Prefix Suffix Length Interleaved2of5 — Korean Postal — Code (Code 3of5) Matrix2of5 — MicroPDF417 — — — MSI/Plessey — PDF417 — — — S-Code — Telepen — Trioptic —...
-
Page 24: Default Settings 2: Read Options, Trigger, Buzzer
Opticon OPR 3101 Specifications Manual 9.3. Default Settings 2: Read Options, Trigger, Buzzer Item Default Setting Setting the number of characters Fixed length OFF all codes Read mode Single read Multiple read reset time 500 ms Add-on wait mode 500 ms... -
Page 25: Default Settings 3: Wireless
When using a USB connection between the CRD 3101 and the host, the connection must be made to the USB-HID of the cradle. • Do not connect to [CNPC] when using the OPR 3101 and the CRD 3101. Default Settings 3.2: Settings to Connect to Host via RS-232C 9.4.2. -
Page 26: Default Settings 3.3: Settings To Connect To Host Via Usb
Opticon OPR 3101 Specifications Manual Default Settings 3.3: Settings to Connect to Host via USB 9.4.3. (When cabled with the cradle) Item Setting Keyboard language Key code output Full key code Caps Lock control No Caps Lock Intercharacter delay No delay 10. -
Page 27: Packaging Specifications
Specifications Manual 11. Packaging Specifications 11.1. Individual Packaging Specification Put the OPR 3101 and the battery pack in separate protective plastic bags and put them into an individual packing box. Twenty individual boxes can be contained in a collective packing box. -
Page 28: Collective Packaging Specification
Opticon OPR 3101 Specifications Manual 11.2. Collective Packaging Specification Dimensions: 507 x 324 x 435 (mm) Internal Dimensions: 497 x 317 x 417 (mm) Figure 11: Collective packaging Note: The “RO” mark labeled on the package tray or package box guarantees that the... -
Page 29: Durability
Opticon OPR 3101 Specifications Manual 12. Durability 12.1. Electrical Characteristics Withstand voltage AC 1500 V per 60 seconds, 10 mA or less Insulation resistance DC 500 V, 2 MΩ or higher Current leakage 250 μA or less / AC 250 V 60 Hz Power line noise immunity ±... -
Page 30: Dust And Drip Proof
14. Trigger and Read Options The OPR 3101 has an optional auto trigger setting, which starts barcode reading automatically by using sensor detection. When auto trigger is enabled, a laser beam is emitted and points to the auto trigger area. The scanner starts barcode reading after detecting reflection from the surface when the auto trigger is used. -
Page 31: Read Modes
Opticon OPR 3101 Specifications Manual 14.2. Read modes • Single read mode: When a symbol has been decoded, the reader will be turned off. The reader must be triggered again to read another symbol. This option and 'Disable trigger' cannot be programmed at the same time. -
Page 32: Auto Trigger Settings
Opticon OPR 3101 Specifications Manual 14.3. Auto Trigger Settings Functions Menu labels Menu codes _ZZ_ Disable auto trigger _+F_ _+I_ Enable auto trigger _ZZ_ 15. Regulatory Compliance 15.1. Laser Safety The scanner emits laser beams. JIS C6802: 2005: Laser class 2 IEC 825-1/EN 60825-1: Laser class 2 FDA CDRH Laser class II. -
Page 33: R&Tte
Peeling off the certificate label 15.7. State of California: Perchlorate Best Management Practices The batteries on some Opticon products may contain Perchlorate. To comply with California Perchlorate Best Practice Regulations and the Law for the Promotion of Utilization of Recyclable Resources (Japan), products that may contain Perchlorate materials should be properly labeled on the exterior of all outer shipping packages and/or in locations that otherwise satisfy the California Perchlorate Best Management Practices. -
Page 34: Safety
Opticon OPR 3101 Specifications Manual 16. Safety Handle this product carefully. Do not deliberately subject it to any of the following. 16.1. Shock Do not throw or drop the scanner. Do not place heavy objects on the cables. 16.2. Temperature Conditions Do not use the scanner at temperatures outside the specified range. -
Page 35: Mechanical Drawing
Opticon OPR 3101 Specifications Manual 17. Mechanical Drawing Dimensions: 165 (H) x 68 (W) x 155 (D) (Excluding protruding portion) Figure 14: Mechanical drawing...
