5. Controls

Item
ASIC
SDRAM
Flash ROM

6. Electrical Specifications

6.1. Configuration

The OPR 3201 consists of a laser module (which includes a scan mirror, a coil, and a
photo diode), a decode and communication section (which decodes scanned data and
carries out signal processing), a 3.3 V power supply, an interface (which outputs decoded
data), a buzzer, LEDs, and a trigger key.
The OPR 3201 RS-232C model operates on a DC 6.0 V power supply fed from the
dedicated adapter. USB and Wedge models operate on bus power, so those models do
not use an adapter.
Specifications
ARM7TDMI
64 KB
8 MBits (512 K × 16 bits)

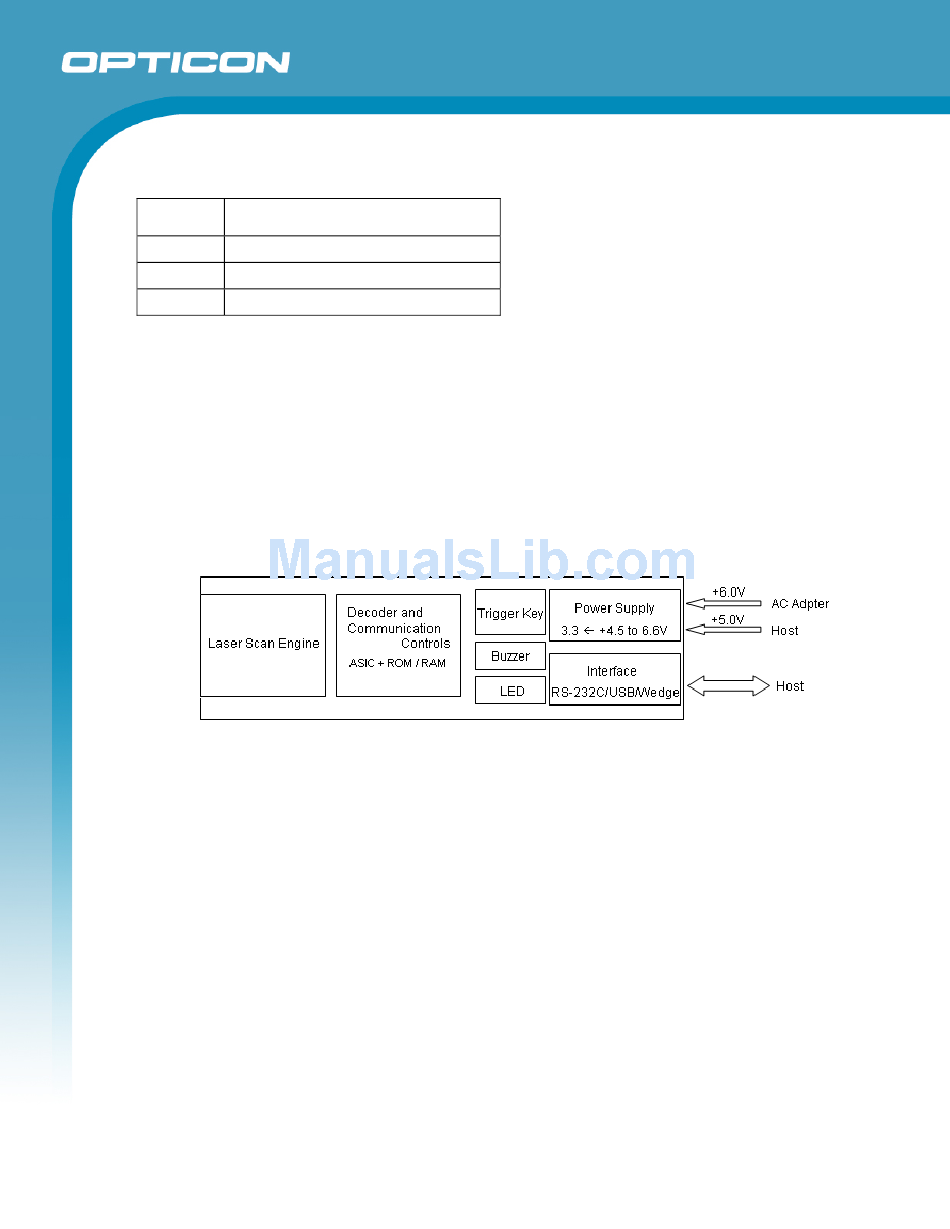

Figure 2: OPR 3201 configuration
