LifeSpan Equalizer User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

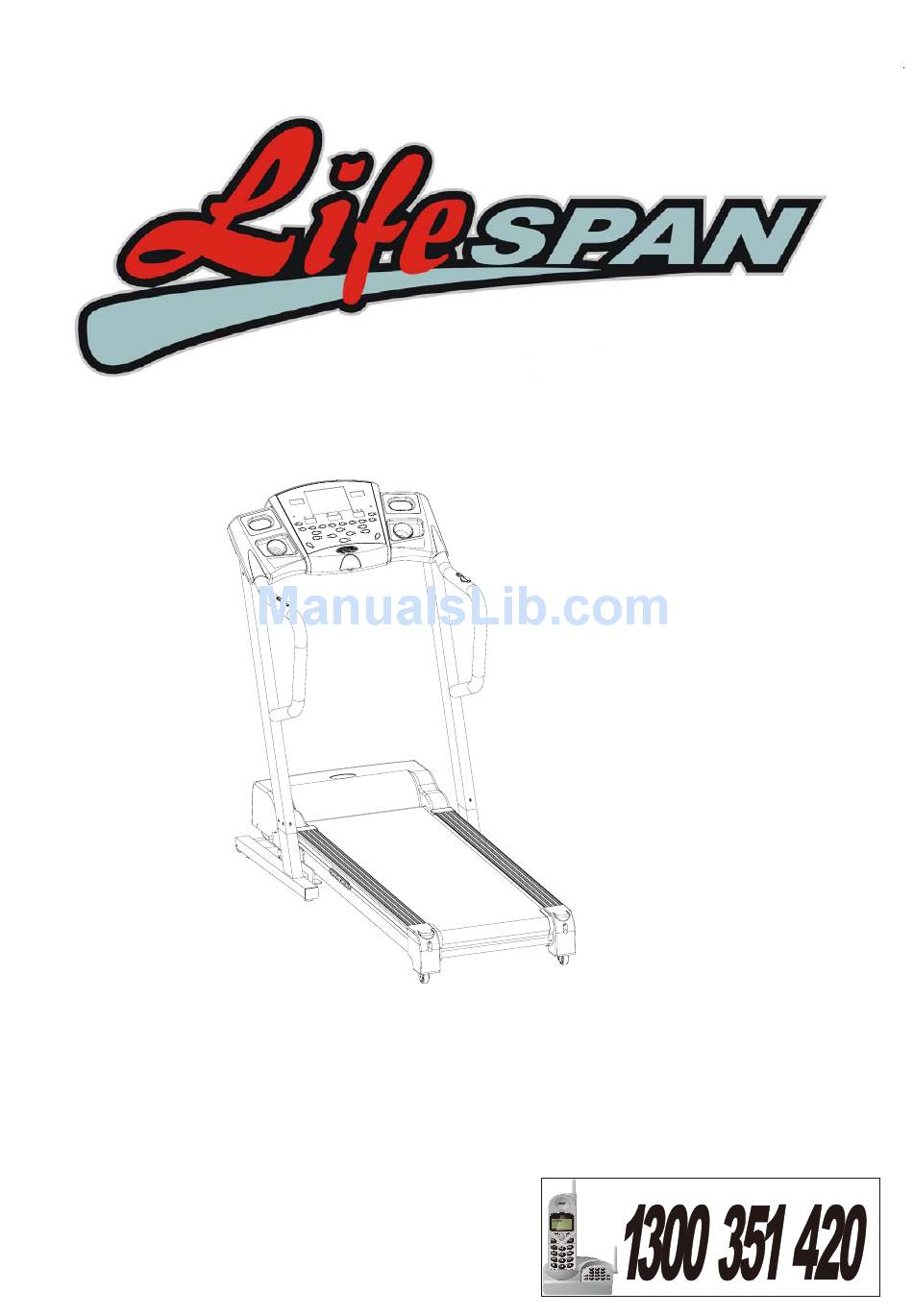

EQUALIZER
USER'S
MANUAL
Product may vary slightly from the item pictured due to model upgrades

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Equalizer and is the answer not in the manual?

Questions and answers

Related Manuals for LifeSpan Equalizer

Summary of Contents for LifeSpan Equalizer

  • Page 1 EQUALIZER USER’S MANUAL Product may vary slightly from the item pictured due to model upgrades...

  • Page 2: Table Of Contents

    HOW TO CHECK THE RUNNING MAT FOR PROPER ……………………………………………….. LUBRICATION ……………………………………………….. BELT ADJUSTMENT ……………………………………………….. BELT TRACKING ADJUSTMENT TROUBLESHOOTING ……………………………………………….. ……………………………………………….. TROUBLESHOOTING TABLE EXERCISE GUIDE ……………………………………………….. ……………………………………………….. WORKOUT GUIDELINES WARRANTY REGISTRATION ……………………………………………….. EXPLODED DIAGRAM ……………………………………………….. PARTS LIST ……………………………………………….. LIFESPAN EQUALIZER Page 1...

  • Page 3: Important Safety Instructions

    The treadmill is intended for in-home use only and not suitable for long time running. To disconnect, turn all controls to the off position, remove the safety key, and then remove the plug from the outlet. LIFESPAN EQUALIZER Page 2...

  • Page 4: Important Electrical Information

    Speed display scope: 1.0-22 (KM/h) ♦ Time display scope: 0：00-99：59 (minute: second) ♦ Distance display scope: 0.01-99.9 (Km) ♦ Heart rate display scope: 60-200 (times/min) ♦ Energy display scope: 0-999 (Cal) ♦ Gradient display scope: 0-20% LIFESPAN EQUALIZER Page 3...

  • Page 5: Important Operation Instructions

    Then the handles will appear automatically. Finally screw down the handles firmly to release yourself from being worried about the safety during exercise. LIFESPAN EQUALIZER Page 4...

  • Page 6: Assembly Instructions

    Right pillar handrail Ⅲ combination Electronic meter frame Ⅳ Combination of left and Ⅴ right handrails Electronic meter Ⅵ Seat tube of electronic Ⅶ meter Ⅷ Crossed solid wrench S13 S14 S15 Inner hexagon spanner S5 S6 Ⅸ LIFESPAN EQUALIZER Page 5...
  • Page 7 4. Children should not be allowed to play on the treadmill or move the treadmill deck up and down. WE RECOMMEND YOU HAVE SOMEONE TO ASSIST YOU IN LIFTING AND ASSEMBLING YOUR LIFESPAN TREADMILL. FOLLOW THESE INSTRUCTIONS CAREFULLY AND IT WILL MAKE IT EASIER TO ASSEMBLE YOUR LIFESPAN TREADMILL Assembly Steps: Take all parts of the running machine out from the packing case.
  • Page 8 3. As shown in Figure 4: (1) Firstly, cut over hole of electronic meter frame 88 into the double-screw bolt of electronic meter 66; (2) And then lock inner hexagon socket screw 13 into the screw of electronic meter 66 respectively; and finally use S6 inner hexagon wrench for tightening. Figure 5 LIFESPAN EQUALIZER Page 7...
  • Page 9 And then churn up the external foam of pull tube 86, conduct a locking by cross recessed screw 18 and a tightening with a crossed solid wrench; (3) And finally knead the foam. 7. Check whether or not all parts have already been firmly locked. The assembly is now completed. LIFESPAN EQUALIZER Page 8...

  • Page 10: Display Panel Operations

    Ensure all fixings are tightly secured and the treadmill is well constructed. 3 DISPLAY PANEL OPERATIONS 3.1 Safety Key IMPORTANT: The treadmill will not operate if the safety key is not in place. LIFESPAN EQUALIZER Page 9...

  • Page 11: Getting Started

    Mode motion mode: it is a motion mode set with given amount of exercise. A. Time motion mode: it is used to set exercise time, such as 30min. B. Distance motion mode: it is used to set motion distance, such as 3km. LIFESPAN EQUALIZER Page 10...
  • Page 12 6. 1 Stop stop/clearing key 7. SELECT mode/program selection key 8. 1 ‘INCLINE +’ key 9. 1 ‘INCLINE -’ key 10. 1 ‘SPEED +’ key 11. 1 ‘SPEED -’ key IV. Parameters 1. Mains voltage: 240V 2. Lowest speed: 1.0Km/h LIFESPAN EQUALIZER Page 11...
  • Page 13 B. Adjustment of Running Machine Speed may be adjusted through ‘SPEED +’ and ‘SPEED-’, and the incline value may be adjusted through ‘INCLINE +’ and ‘INCLINE -’. LIFESPAN EQUALIZER Page 12...
  • Page 14 E. Once the amount of exercise exceeds the set value, the system will shut down. At this time, press ‘STOP’ once, and the system will return to the standby state. 3. Mode With a scientific arrangement, the system is internally set with 24 exercise modes (see attached list 1). A. Entry LIFESPAN EQUALIZER Page 13...

  • Page 15: Pulse Grip Feature

    Note: This is only a rough guide used for comparison of different exercise Sessions, which cannot be used for medical purposes. 3.6 Programs: Time time/16 time period = the operation time of former and later time period Slice Program Speed Gradient 2 Speed Gradient 1 LIFESPAN EQUALIZER Page 14...
  • Page 16 Speed Gradient 2 Speed Gradient 2 Speed Gradient 2 Speed Gradient 1 Speed Gradient 1 Speed Gradient 1 Speed Gradient 2 Speed Gradient 2 Speed Gradient 2 Speed Gradient 4 Speed Gradient 5 Speed Gradient 5 LIFESPAN EQUALIZER Page 15...

  • Page 17: Maintenance

    Pay particular attention to the fixing knobs and make sure they are tight. • Always replace the mat if worn and any other defective parts. • If in doubt do not use the treadmill and contact our helpline. LIFESPAN EQUALIZER Page 16...

  • Page 18: Belt/Deck/Roller Lubrication

    2. Fold the treadmill up into the storage position. 3. Feel the back surface of the running mat. If the surface is slick when touched, then no further lubrication is needed. If the surface is dry to the touch, apply a suitable silicone lubricant. LIFESPAN EQUALIZER Page 17...

  • Page 19: Belt Adjustment

    We recommend you use a silicone based spray to lubricate your Lifespan Treadmill. This Can be purchased from your local sports Retailer or a local hardware store. 4.5 Belt Adjustment Belt Tension Adjustment -It is very important for joggers and runners in order to provide a smooth, steady running surface.

  • Page 20: Belt Tracking Adjustment

    6 mm Allen Key, it is important to adjust the belt in half turn increments. Over adjusting the belt can cause damage to the mat. If the belts has drifted to the RIGHT If the belts has drifted to the LEFT LIFESPAN EQUALIZER Page 19...

  • Page 21: Troubleshooting

    1. Change to miles per hour. seems slower than displayed 2. Out of calibration. 2. Recalibrate electronics speed. (professional operation only) 5. Treadmill squeaks when 1. Pivot points need 1. Lubricate pivot points. walked on. lubrication. LIFESPAN EQUALIZER Page 20...
  • Page 22 3. E03: explosion-proofing protection Possible reason: the electric motor wire is pulled off when the electromotor runs at a high speed. LIFESPAN EQUALIZER Page 21...

  • Page 23: Exercise Guide

    The condition of your heart and lungs and how efficient they are in delivering oxygen via your blood to your muscles is an important factor to your fitness. Your muscles use this oxygen to provide enough energy for daily activity. This is called aerobic activity. When LIFESPAN EQUALIZER Page 22...

  • Page 24: Workout Guidelines

    Warming-up is a necessary link before an exercise, because it lets your heart has a gradually increasing load and your circulatory system a gradual speeding up. Furthermore, it can also let your muscular temperature rise gradually, and such LIFESPAN EQUALIZER Page 23...
  • Page 25 Finish each workout with a light jog or walk for at least 1 minute. Then complete 5 to 10 minutes of stretching to cool down. This will increase the flexibility of your muscles and will help prevent post-exercise problems. LIFESPAN EQUALIZER Page 24...

  • Page 26: Warranty Registration

    PLEASE NOTE: YOUR WARRANTY IS ONLY VALID IF YOU CAN PROVE YOU ARE THE ORIGINAL PURCHASER ON THIS ITEM (i.e. A copy of the receipt, invoice, delivery date or internet confirmation). 8 EXPLODED DIAGRAM LIFESPAN EQUALIZER Page 25...

  • Page 27: Parts List

    Crisscross slotted Base buffering pad 4, countersunk (flat) head ST4.2*20 lifting frame buffering pad self-drilling screw with 2, control panel 2 washer Crisscross slotted Transformer 2, filter 2, ST4.2*13 countersunk (flat) head earthing 2, back tail LIFESPAN EQUALIZER Page 26...
  • Page 28 ￠20*￠10*690, length Black Gas spring 225, 200N 3.0HP, voltage subjected Electric motor to the order Electric motor base Poly-V strap Strip 210J-7 Black Installation hole spacing: 1/15HP, voltage subjected Lift motor 190; adjustment length: to the order LIFESPAN EQUALIZER Page 27...
  • Page 29 Combined type 1080*90*20 Black Back tail adjuster 1 pair Main frame 175*110*105 Alloy cover ￠16*9 (inner hole ￠10) Main and lifting frame Length: 40; diameter: 9.5; line Black Safety hook Spring diameter: 1.5; valid rings: 13 LIFESPAN EQUALIZER Page 28...
  • Page 30 Lifting frame junction Set Main frame junction Left handrail Right handrail Left upright pole Right upright pole Pull tube Length Safety hook Electronic meter fixing frame Lifting frame and base Bushing ￠13*￠10*10 combination Silica gel buffering Main frame LIFESPAN EQUALIZER Page 29...
