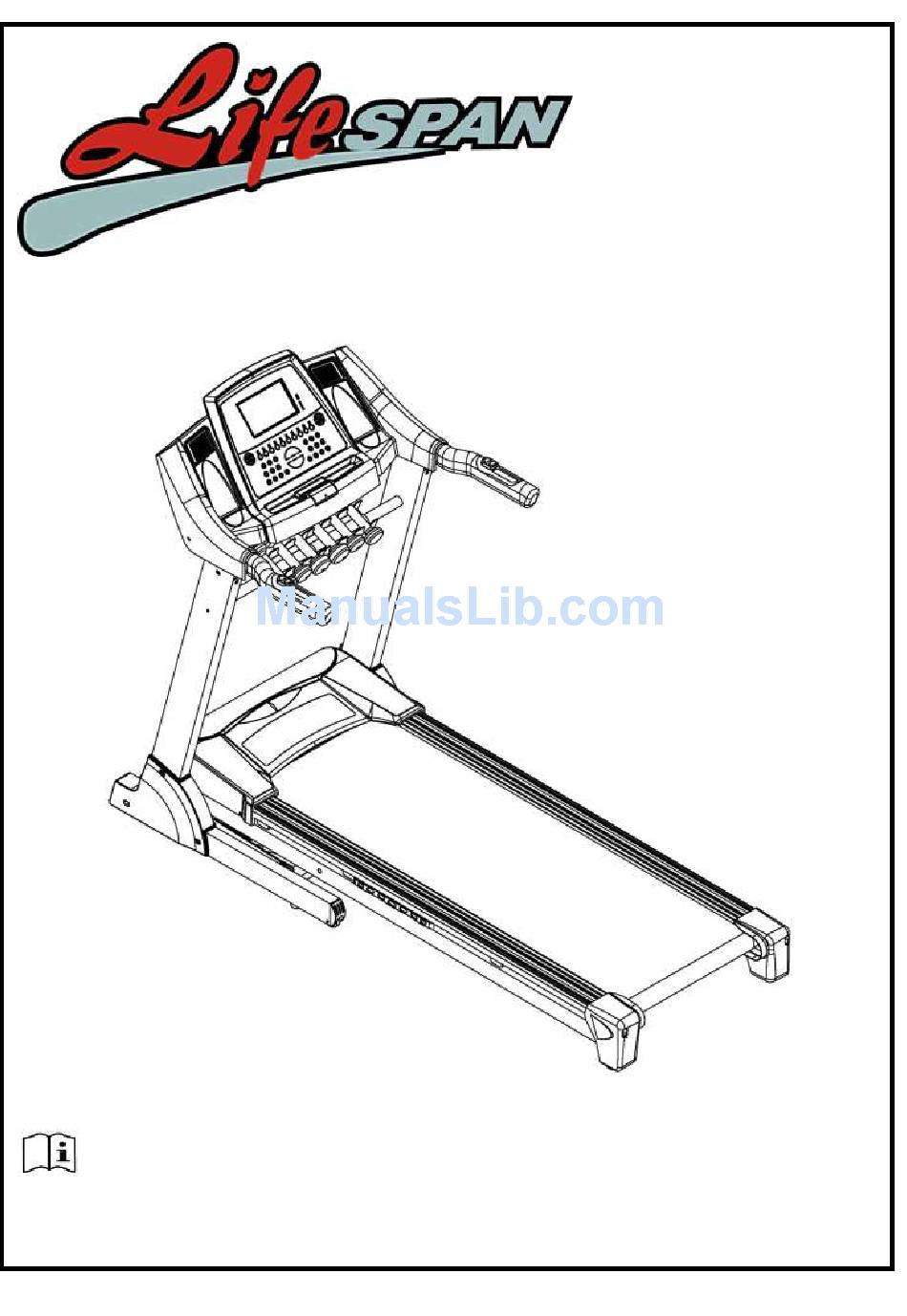

DIAMOND OWNER'S MANUAL
Product may vary slightly from the item pictured due to model upgrades
Read all instructions carefully before using this product. Retain this owner's manual for
future reference.
NOTE: This manual may be subject to updates or changes. Up to date manuals are available through our website at www.lifespanonline.com.au

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Diamond and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LifeSpan Diamond

Summary of Contents for LifeSpan Diamond

  • Page 1 DIAMOND OWNER’S MANUAL Product may vary slightly from the item pictured due to model upgrades Read all instructions carefully before using this product. Retain this owner’s manual for future reference. NOTE: This manual may be subject to updates or changes. Up to date manuals are available through our website at www.lifespanonline.com.au...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS IMPORTANT ELECTRICAL INFORMATION IMPORTANT OPERATING INSTRUCTIONS ASSEMBLY INSTRUCTIONS FOLDING INSTRUCTIONS OPERATION GUIDE PROGRAM EXERCISE CHART EXERCISE GUIDE MAINTENANCE INSTRUCTIONS EXPLODED DIAGRAM PARTS LIST TROUBLE SHOOTING GUIDE WARRANTY DIAMOND...

  • Page 3: Important Safety Instructions

    Do not operate where aerosol spray products are being used or where oxygen is being administered. Sparks from the motor may ignite a highly gaseous environment.  Never drop or insert any object into any openings.  The treadmill is intended for in-home use only and not suitable for long time running. DIAMOND...

  • Page 4: Important Electrical Information

     This is high-power item; please do not share the same outlet with other high power machines such as, fridges, air conditioning etc. Please choose an outlet exclusively for the machine and make sure the fuse is 10A. DIAMOND...

  • Page 5: Important Operating Instructions

    A safety key is provided with this machine. Remove the safety key will stop the walking belt immediately; the treadmill will shut off automatically. Inserting the safety key will reset the display.  Do not use excessive pressure on console control keys. They are precision set to function properly with little finger pressure. DIAMOND...

  • Page 6: Assembly Instructions

    36 Right Upright Tube Cover Bolt M5*8 5# Allen Wrench Arc Washer 6# Allen Wrench Left Handle Bar Right Handle Bar 116 Wrench w/screw Driver S=13,14,15 5# Allen Wrench 5# Allen Wrench Dumbbell frame Dumbbell Dumbbell Bolt M8*50 Dumbbell Lock Washer DIAMOND...
  • Page 7 1. Using the 6# Allen wrench, screw through STEP 3: the bolt (75) M10*15 to the Lock washer (93), then lock the Left upright tube onto MAIN FRAME. Note: Support the Uprights with your hands to prevent them falling down and causing injury. DIAMOND...
  • Page 8 COMPUTER onto the main frame. STEP 6: 1. Using the 5# Allen Wrench, drill the Bolt ( 81) M8*15 through the Arc Washer (119), then lock the Left and Right Handle bar onto the Computer. DIAMOND...
  • Page 9 (77), the washer 8(92) to fasten the dumbbell frame (120) onto the upright tubes. Make sure the dumbbell frame is firmly fastened onto the upright tubes, and then place the dumbbells of 2LB (121), 3LB (122) and 4LB (123) onto the frame. DIAMOND...

  • Page 10: Folding Instructions

    (10) locking into the round tube. Unfolding: Supporting position A with your hand, pull out the pin at B on the air pressure bar, then the base frame will descend automatically DIAMOND...

  • Page 11: Operation Guide

    USB disk, SD card, and supports the file display of MP3, MP4, WMV formats. After the machine is connected onto the power supply, the screen will display initial image and screen adjust image: DIAMOND...
  • Page 12 Initial image: The screen will display following image once the machine in on power on stage, Screen adjust image Touch the indicator of “Day” to adjust the screen, and then the machine will enter standby mode. DIAMOND...
  • Page 13 Multimedia functions shown on the screen from the left to the right are: Music display (AUDIO), Video display (VIDEO), Photo and slide display (PHOTO), Program choice (SPORT) and Tool choice (SET). Motorized treadmill functions shown on the screen are: Incline, Pulse, Time, Distance, Calories, Speed, Incline up/down arrows, Speed up/down arrows, Speed display. DIAMOND...
  • Page 14 Touch the front and back buttons to choose different music. Touch volume “+” and volume “-” button to control the sound. Touch the BACK button to return the previous image stage. DIAMOND...
  • Page 15 The left side of the image shows display routes, from the top down are: Internal storage, USB disk and SD card. Touch the corresponding indicator to choose the files, internal storage is default. Touch the video file DIAMOND...
  • Page 16 If you find the video image is too small, you can touch full screen button to adjust the size of the image. If you want to return to the small size image, you can touch anywhere of screen to adjust. DIAMOND...
  • Page 17 3 seconds before the display of the next one. Touch the front and back buttons to choose different videos. Touch the BACK button to return the previous image stage. DIAMOND...
  • Page 18 If you find the picture image is too small, you can touch full screen button to adjust the size of the picture. If you want to return to the small size image, you can touch anywhere of screen to adjust. 4. PROGRAM CHOICE Touch the indicator of to enter program choice. DIAMOND...
  • Page 19 24 programs for your choice. Touch “START” button to start the program. Touch “BACK” button to return back to the previous image. Each program is divided into 16 time sections and each time sect has the speed and incline set accordingly. DIAMOND...

  • Page 20: Program Exercise Chart

    INCLINE SPEED INCLINE SPEED INCLINE SPEED 10 12 10 12 INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE 11 11 11 11 SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE DIAMOND...
  • Page 21 3 users for your choice. After choose your favorite user, the screen will show “STEP” ”INCLINE” “SPEED” and ”TIME”, you can touch figure on the right to set the figure you expect and then touch “START” button to start the program. Touch “BACK” button to return back to the previous image. DIAMOND...
  • Page 22 “START” button to start the program. Touch “BACK” button to return back to the previous image. (D) TOOL CHOICE: Touch the indicator of to enter tool choice. Tool choice includes functions of touch calibration and language select. DIAMOND...
  • Page 23 1. Touch the TOUCH CALIBRATION button to enter the function of touch calibration, which is used to adjust the touch point. 2. Touch LANGUAGE SELECT to enter the function of language choice, you can choose SIMPLIFIED CHINESE, TRADITIONAL CHINSE and ENGLISH from here. DIAMOND...
  • Page 24 Touch the “START” at the top of the screen, and the machine will starts after the countdown of 3 seconds. You can adjust “INCLINE” and “SPEED” by touching screen of You can find start-up image should show as follows: This is what you should see when the machine is running at 1km/h: DIAMOND...
  • Page 25 0.5 km/h, holding the button down will continually increase incline until released. 5) “INCLINE: 3, 5, 8, 10, 12, 15” incline shortcut buttons to set the incline quickly. 6) “SPEED: 3, 5, 8, 10, 12, 15” speed shortcut buttons to set the speed quickly. DIAMOND...
  • Page 26 4. The maximum resolution ratio for the system is 1920*1080, and the maximum flow rate is 5M. When you display files, please pay attention to the file size. A file size that is too large may cause slowness and freezing. DIAMOND...

  • Page 27: Exercise Guide

    So as you can see, the fitter you are, the healthier and greater you will feel. Warm-up Start each workout with 5 to 10 minutes of stretching and some light exercises. A proper warm-up increases your body temperature, heart rate and circulation in preparation for exercise. Ease into your exercise. DIAMOND...

  • Page 28: Workout Guidelines

    The most important factor here is the amount of effort you put in. The harder and longer you work, the more calories you will burn. Effectively this is the same as if you were training to improve your fitness, the difference is the goal. DIAMOND...

  • Page 29: Maintenance Instructions

    General Care  Check parts for wear before use.  Pay particular attention to the fixing knobs and make sure they are tight.  Always replace the mat if worn and any other defective parts. DIAMOND...

  • Page 30: Belt/Deck/Roller Lubrication

    3. Periodically lubricate the front and rear rollers to keep them at their peak performance. If the treadmill belt/deck/roller is kept reasonably clean it is possible to expect over 1200 hours before relubricating is necessary. DIAMOND...

  • Page 31: How To Check The Running Mat For Proper Lubrication

    If the surface is slick when touched, then no further lubrication is needed. If the surface is dry to the touch, apply a suitable silicone lubricant. We recommend that you use a silicone based spray to lubricate your Lifespan treadmill. This can be purchased directly from us or any hardware store.

  • Page 32: Adjusting The Running Belt

    Repeat until the belt correctly centers. Picture B To adjust the tightness of the belt: turn both the left and right adjusting bolt 1/4 turn clockwise. Then start the treadmill until belt centers. Repeat until the belt correctly tightens. Picture C DIAMOND...
  • Page 33 2 inches. However this is a rough reference and not all treadmills are the same. Some treadmills that have longer belts may give different measurements for correct belt tightness. Simply, if the belt begins to slip during use, this is an indication that the belt still needs tightening. DIAMOND...

  • Page 34: Exploded Diagram

    10. EXPLODED DIAGRAM DIAMOND...

  • Page 35: Parts List

    Cushion Pad Running Board Components Incline Turning Bushing Ring Wire Plug Computer Top Cover Transport Wheel Computer Bottom Cover Blue Cushion Computer Panel Adjustable Wheel Motor Top cover Lock Nut Motor Bottom Cover Lock Nut Bottom Cover Lock Nut DIAMOND...
  • Page 36 ST4.2*12 Screw ST4.2*12(Φ8) Screw S T2.9*6.5 Lock Washer GB861.2-87 8 Lock Washer GB861.2-87 10 Spring Washer GB/T 93-1987 8 Flat Washer GB/ T 95-2002 8 Flat Washer GB/T 95-2002 5 Big Washer φ8*φ22*2.0 Amplifier Board Computer Board Control Board DIAMOND...

  • Page 37: Trouble Shooting Guide

    2. Check the state of the transformer is good, if broken, change it. Burst clash 1. Ensure power is correct, if not, use correct power to test. 2. Check if the bottom control is burnt out, if burnt out replace it and then reconnect the motor wire. DIAMOND...
  • Page 38 1. The wires from computer and bottom control board are not control board and properly connected, please check each wire. If the wire is computer destroyed replace it. 2. Ensure wires of control board are properly connected, replace any broken parts on the board 3. Replace transformer DIAMOND...

  • Page 39: Warranty

    You are entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. Full details of your consumer rights may be found at www.consumerlaw.gov.au Please visit our website to view our full warranty terms and conditions: http://www.lifespanonline.com.au/Warranty-Policy DIAMOND...
