Server Chassis Features

System Power

Disk Drive Subsystem

007-5843-002
The following sections provide a general outline of the main features of the 1U system chassis.

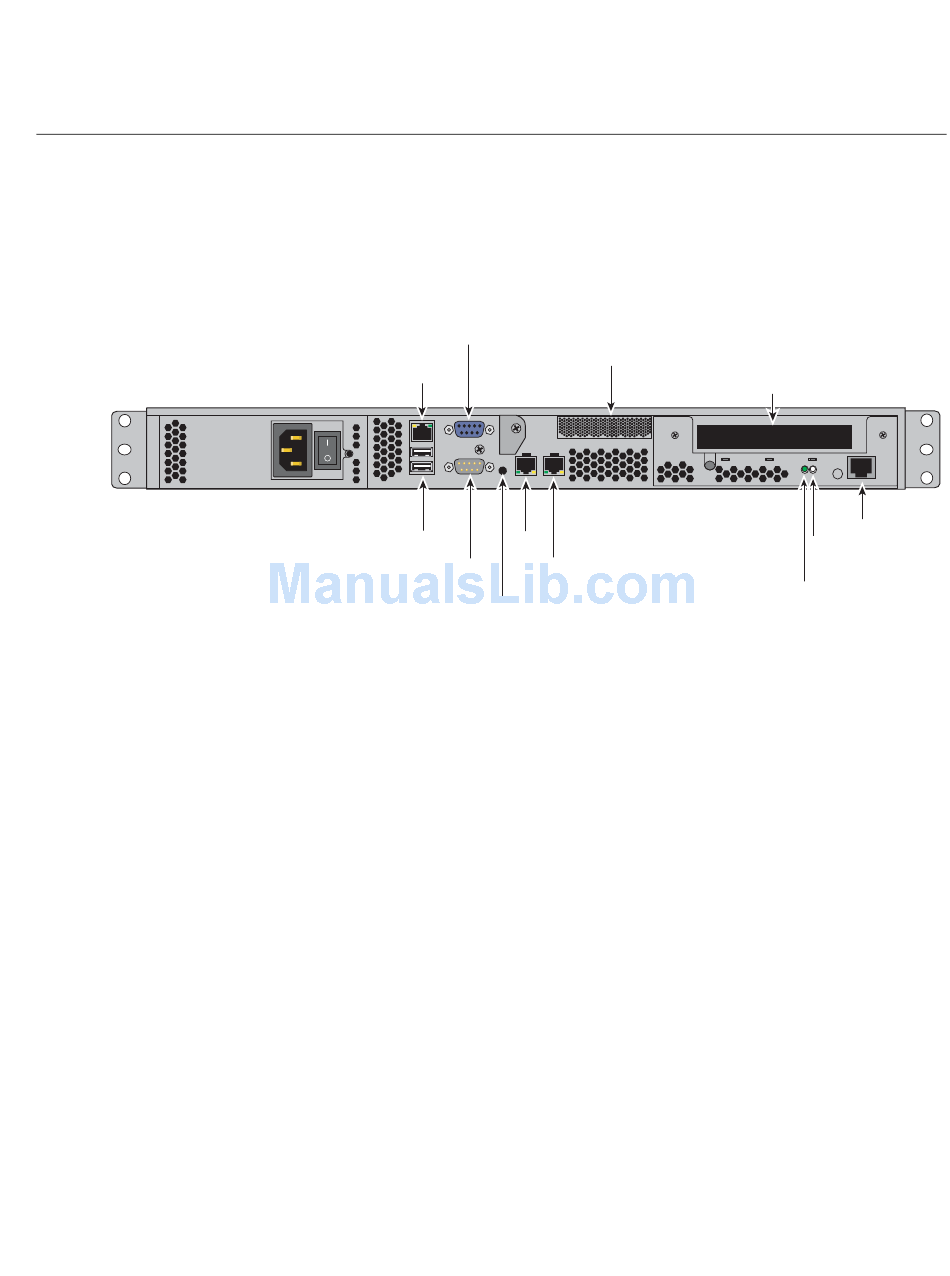

Figure 1-4 shows an example of the rear panel features of the SGI Rackable C1110-RP6 system.
IPMI
LAN/LAN3
USB
Ports
Figure 1-4
SGI Rackable C1110-RP6 System Rear Panel and I/O Ports
Your SGI Rackable C1110-RP6 system uses a single-cord high-efficiency 450-Watt cold-swap
power supply (shown on the left side of Figure 1-4). Optionally, a dual-cord 650-Watt redundant
power supply is available. Both types of supply are 80+ Gold rated.
The AC power supply cord(s) should always be removed from the system before servicing or
replacing the power supply.
The SGI Rackable C1110-RP6 system chassis includes four 3.5-inch drive bays or ten 2.5-inch
drive bays. These drives can be JBOD disks, or software RAID, or BIOS-assisted software RAID,
or optional hardware RAID disks. An optional SAS disk controller is also supported.
RAID support levels are as follows:
VGA Port
Low-profile x16 PCIe Slot
LAN2
COM
LAN1
Port
UID LED
button
Server Chassis Features
Full-height x16 PCIe slot
Serial Port
HDD
activity
Power
