Remove/Replace the Chassis Top Covers

18

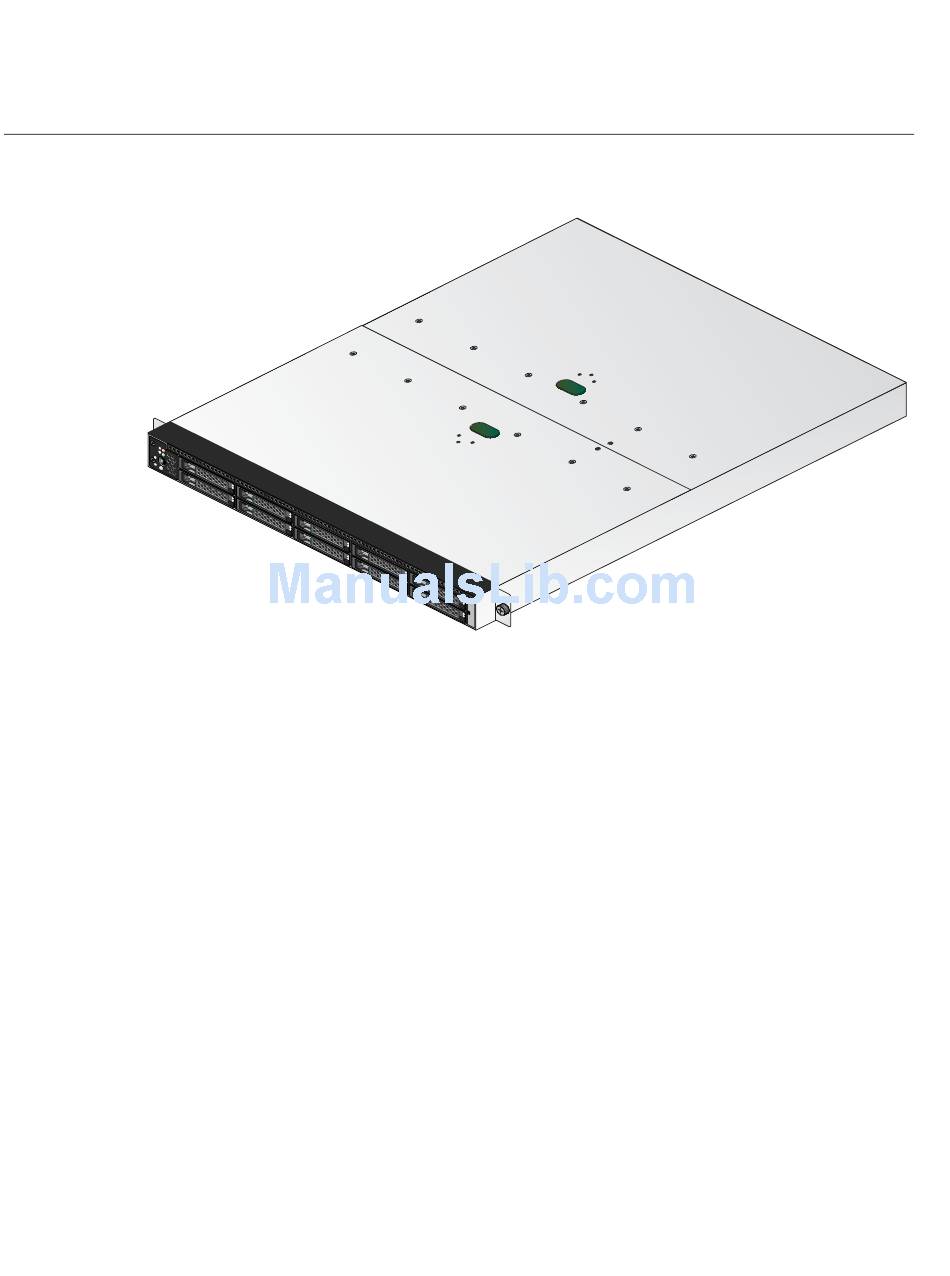

Figure 2-5
Top View of Server
Use the following information to remove the chassis top cover over the serverboard:
1. Using a Phillips-head screwdriver, remove the two screws that secure the motherboard top
covers to the chassis.
2. Place your thumbs in the top-cover recess "button" and push the rear section of the top cover
away from you (toward the rear of the chassis) and lift it upward, see Figure 2-6 on page 19.
3. Lift the top cover from the chassis to gain full access to the serverboard, DIMMs, fans,
power supply and PCIe cards.
4. Reverse the process to reinstall the rear top cover section.
