2: System Operation
Installing the Server into the Rack
16
You should now have rails attached to both the chassis and the rack unit. The next step is to install
the server into the rack. Do this by lining up the rear of the chassis rails with the front of the rack
rails. Slide the chassis rails into the rack rails, keeping the pressure even on both sides (you may
have to depress the locking tabs when inserting the unit). See Figure 2-4 for an example. When
the server has been pushed completely into the rack, you should hear the locking tabs "click" into
place.

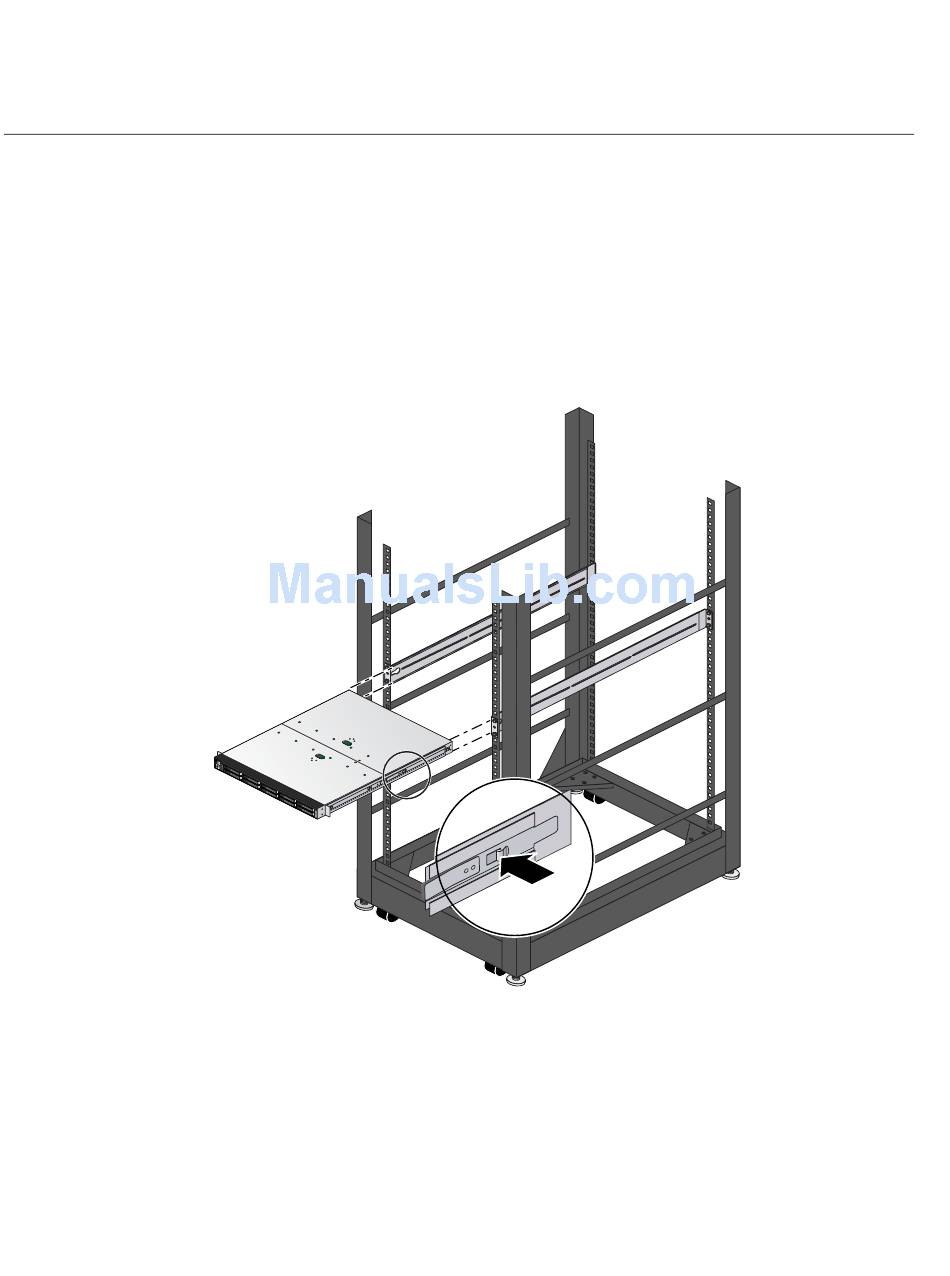

Figure 2-4
Sliding the System into a Rack
007-5843-002
