Installing a New 650-Watt Redundant Power Supply

007-5843-002
Use the following steps to replace a failed power supply in the server:
1. Replace the failed power supply with the exact same model from SGI or another approved
vendor, contact your SGI sales or service representative for more information.
2. Insert the new unit into the chassis and push it in until seated. This may require some
moderate force but you should hear an audible "click" as the power supply is seated.
3. Reconnect the AC power cord to the supply and press the power button on the front of the
chassis to resupply power to the system if you had shut down the server.

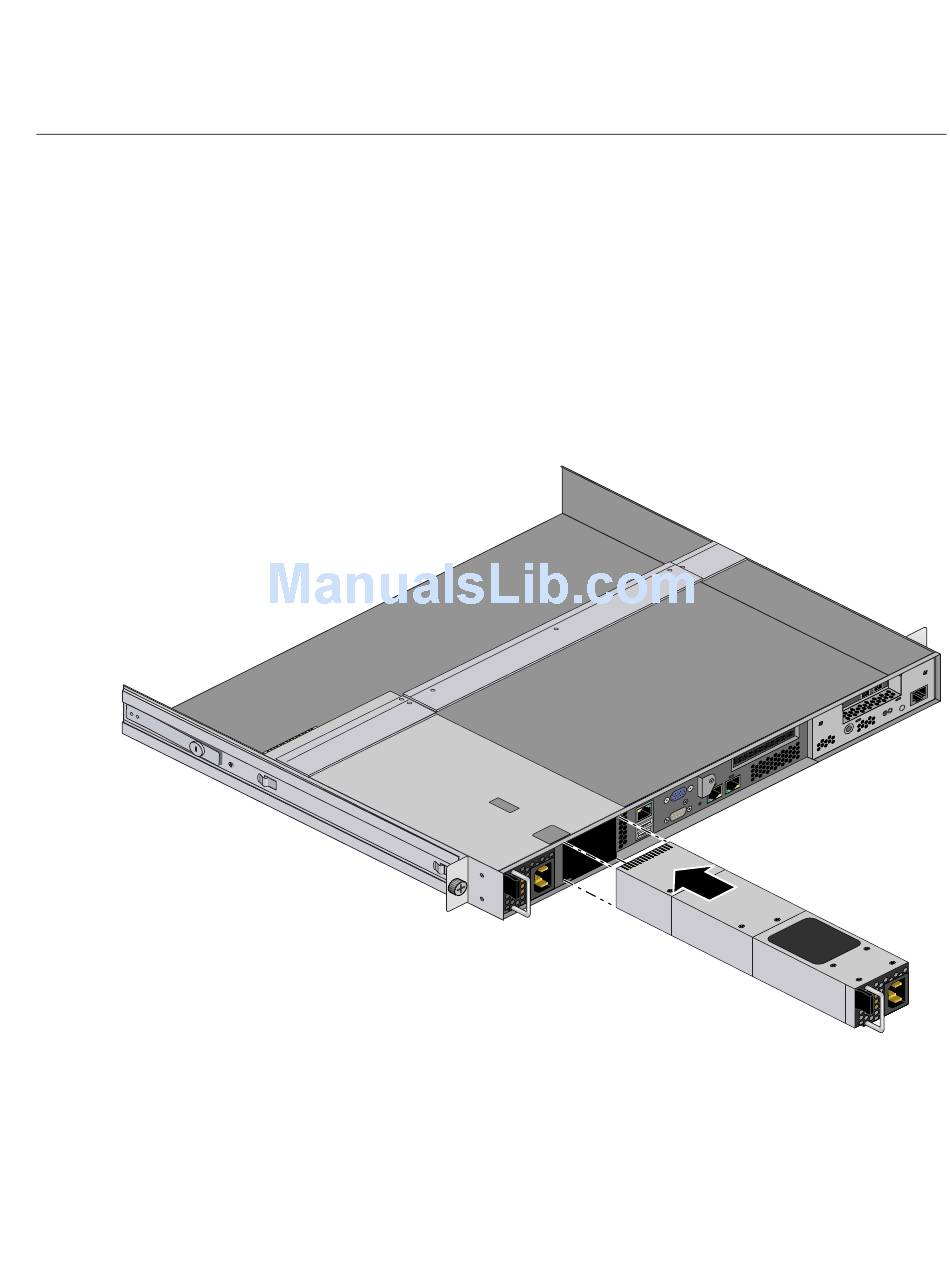

Figure 4-8 650-Watt Redundant Power Supply Replacement Example
Power Supply
