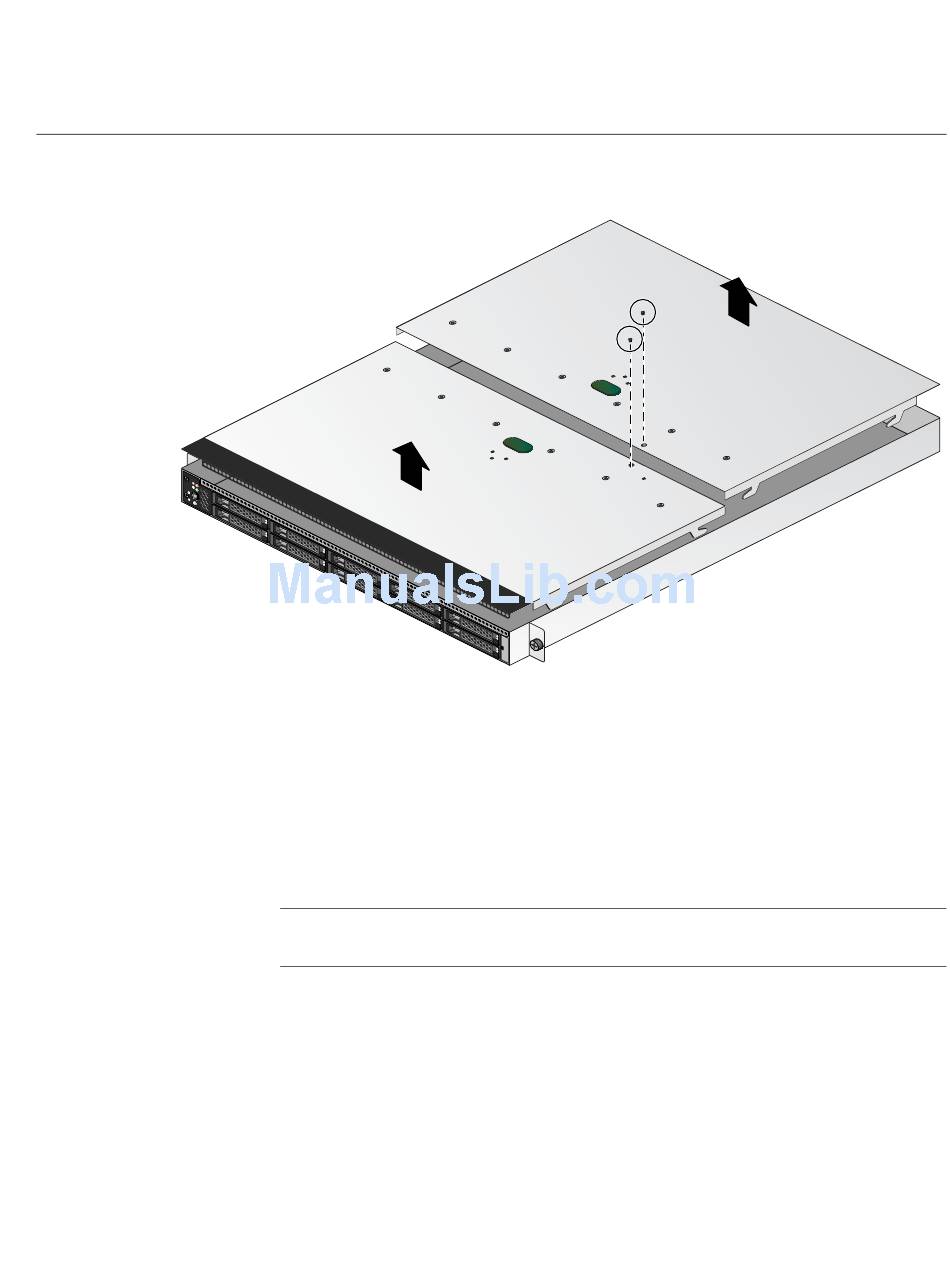

Figure 2-6
Server Top Covers Removal Example
Use the following steps to remove the (front) chassis top cover over the system drives:
1.
Use your thumbs in the top-cover recess "button" to push the front section of the top cover
towards the front of the system and lift upward.
2. Lift the front cover section up and away from the server chassis to access the drive assembly
and backplane interconnects.
3. Reverse the process steps to reinstall the front section of the chassis top cover.
Important: Always replace both top covers when operating the server to ensure thermal
stability.
