4: Internal Component Replacement and Upgrades
Mounting a Drive in a Carrier
Installing/Removing Hot-swap Drives
32
Check with your SGI sales or service representative to obtain new or replacement hard disk drives
for the server.
Install the drive into the carrier with the printed circuit board side facing down so that the
mounting holes align with those in the carrier.
Secure the drive to the carrier with the side screws, similar to the example in Figure 4-3.

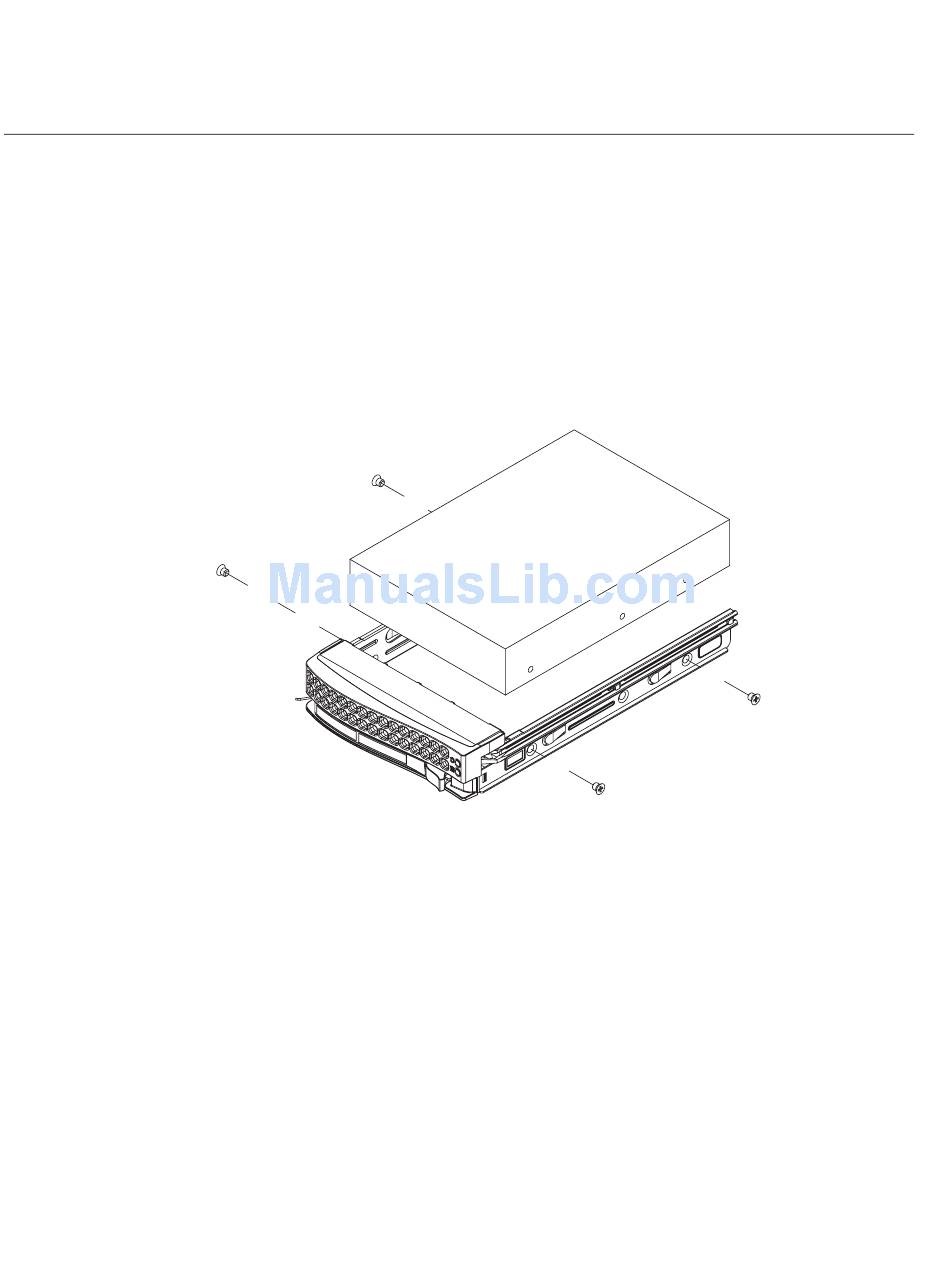

Figure 4-3
Drive Carrier Mounting Example
To remove a carrier, push the release button located beside the drive LEDs.
Swing the handle fully out and use it to pull the disk assembly straight out of the chassis (see
Figure 4-4 on page 33).
