Installing Memory DIMMs

007-5843-002
Note: Check with your SGI sales or service representative for approved replacement or upgrade
DIMM memory modules.
Insert each memory DIMM vertically into a slot using the information and illustrations in this
section. Pay attention to the notch along the bottom of the DIMM to prevent inserting it
incorrectly.
To install a DIMM: Insert the DIMM vertically and gently press down until it snaps into place.
Pay attention to the alignment notch at the bottom.
Repeat for all DIMMs.
To remove a DIMM: Use your thumbs to gently push the release tabs near both ends of the
memory module. This should release it from the slot.

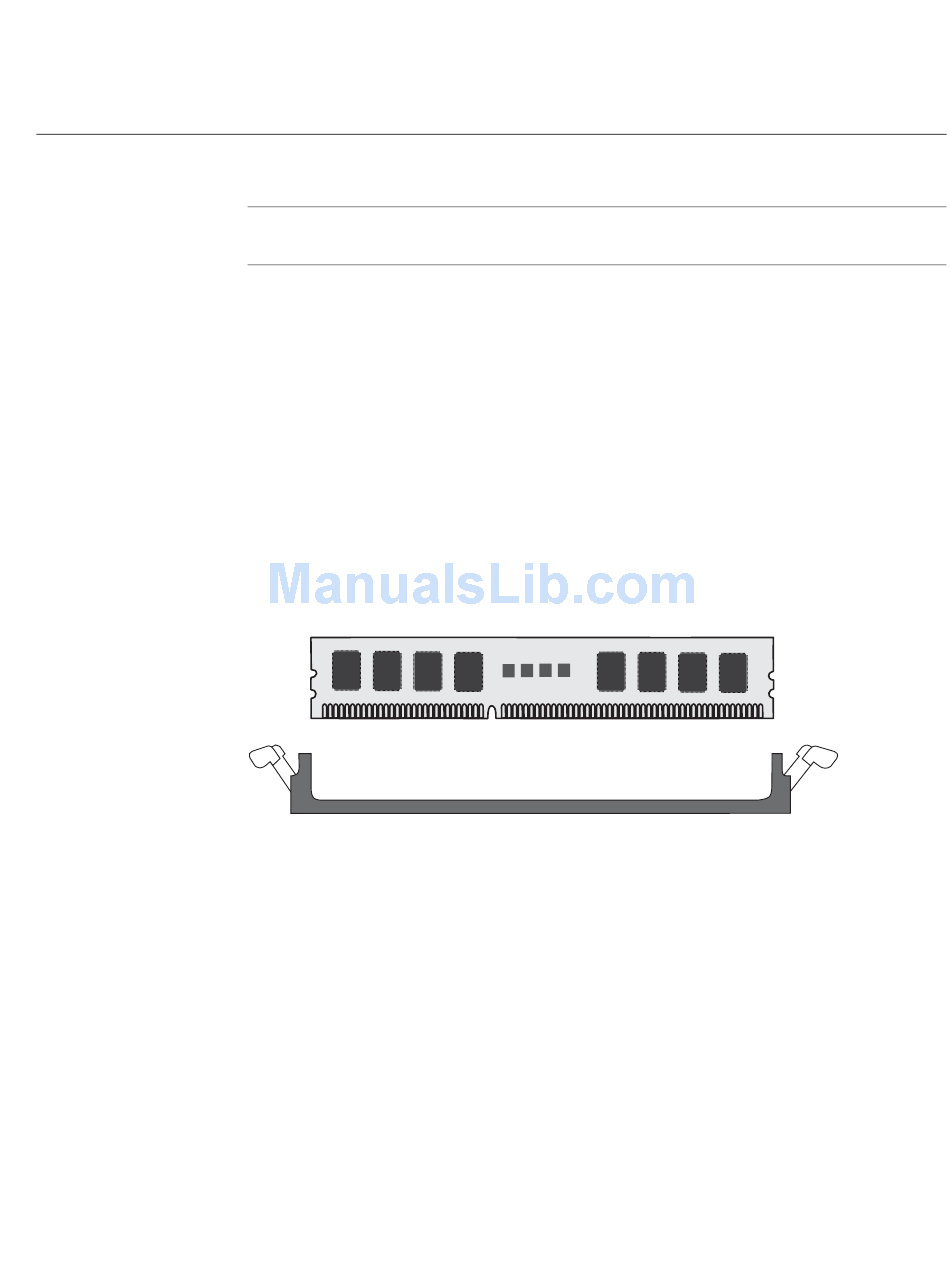

Figure 4-2 DIMM Installation Example
Note the following operational points regarding DIMM usage in the C1110-RP6 server:
• Each processor supports four DDR3 memory channels.
• Each memory channel can support two maximum speed (1600 MT/s) DIMMs per channel.
• Mixing DIMMs with different speeds on a channel causes a default to the lowest speed.
• A 32 GB DIMM is the maximum approved DIMM capacity for the C1110-RP6.
Installing System DIMM Memory
29
