B
RIEF DESCRIPTION
MPR30 is a compact true diversity receiver designed for professional in-ear monitoring
applications. This receiver features a real TRUE DIVERSITY configuration along with a unique
wideband tuning range up to 232 MHz. Audio processing can be Stereo MPX or mono based.
The output audio stage is especially design to have maximum audio peak-dynamic of 200
mWatt.
MPR30-IEM is designed to be:

"easy & quick to use" thanks to
o
automatic setup functions (i.e. frequencies, scan for best channels),
o
remote configuration utilities (thru infrared or micro-USB interface) using
Wisycom ENG RX Manager application
o
OLED display with intuitive context menu navigation

"extremely flexible", with an incredible frequency agility up to 232MHz
o
MPR30-IEM-N: 470/700 MHz (TV ch 21/49)
o
MPR30-IEM-M:566/798 MHz (TV ch 33/61)

"best in class performances", thanks to the latest Wisycom technology the unit has
extreme RF sensitivity and immunity and superb audio quality

"a durable & upgradable investment", thanks to the very robust design (aluminium
housing) and the possibility to upgrade/enhance units performances.

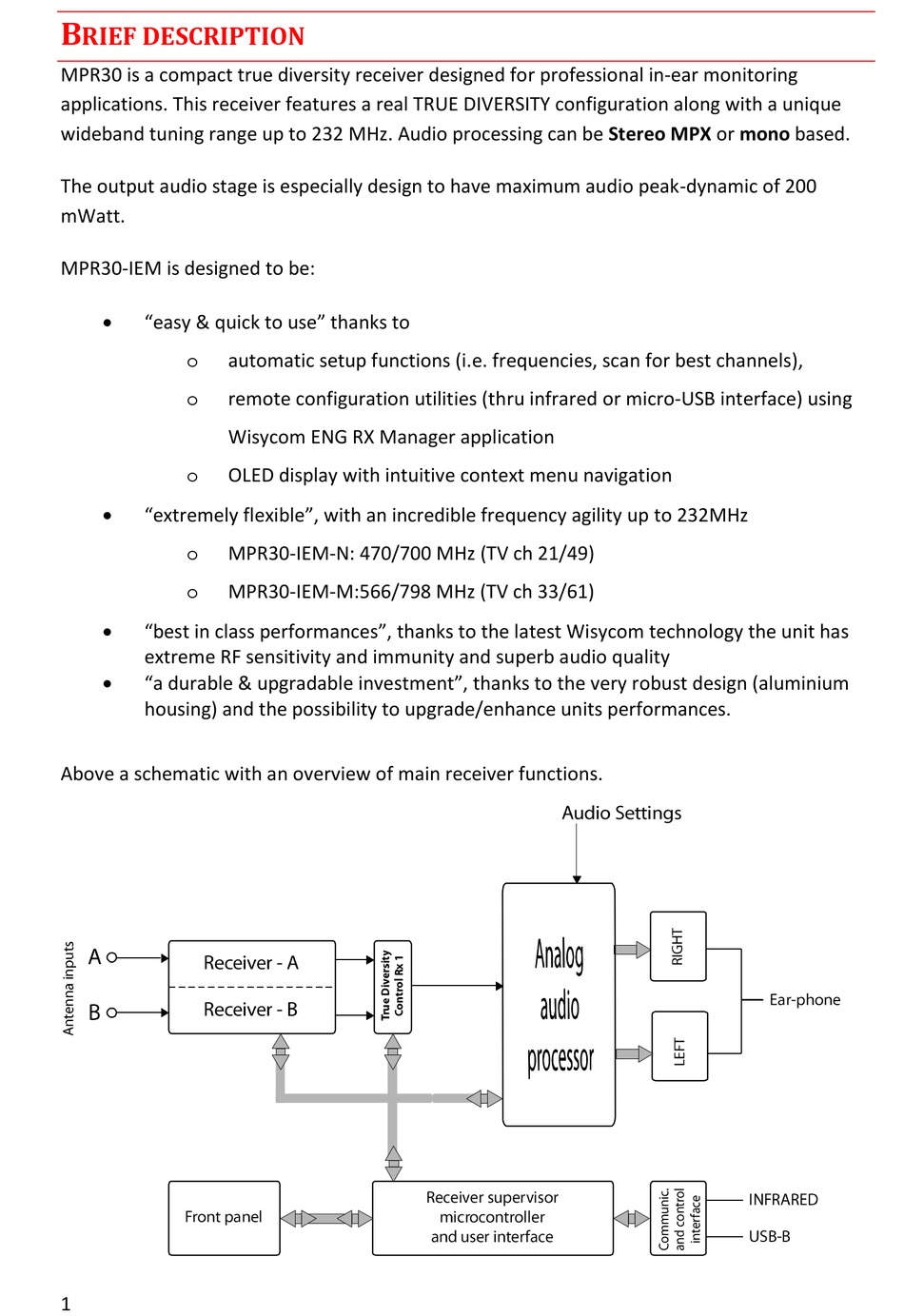

Above a schematic with an overview of main receiver functions.
