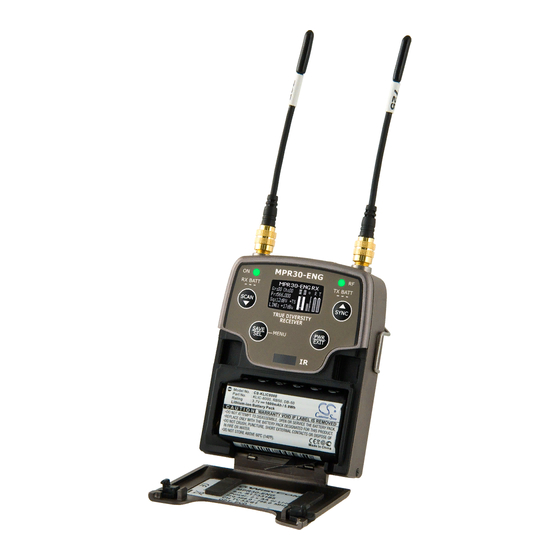

- Page 1 MPR30 Manager Products: MPR30-IEM, MPR30-ENG...
- Page 2 MPR30 RX M OW TO USE ANAGER Wisycom MPR30 RX Manager can be used to load or save the channels memory and upgrade the firmware. Instruction to connect MPR30 using UPK300 / UPK300E Connect to the PC the infrared programming interface (UPK300 or UPK300E) using a USB cable (NOTE: it is not possible to use IR interface of MRK950 or MRK960) Check if the version of ENG RX Manager installed in your PC is the latest version.
- Page 3 MPR30 Manager the UPK300. Then click OK. If the connection is ended well, the Connected icon is showed on the top of the panel and “Connected on USB by UPK” is displayed on the information panel Pag. 2...
- Page 4 MPR30 Manager Instruction to connect MPR30 using USB cable: In order to use the microUSB port to configure the MPR30, it is necessary to install the MPR30 USB driver (see How to install MPR30 USB driver) Connect the MPR30 to the PC thru the micro USB interface using the USB cable Check if the version of ENG RX Manager installed in your PC is the latest version.
- Page 5 MPR30 Manager How to load/save channels memory Write: Push the button Write from WDF file… and select the wdf file to load on the MPR30. Read and save: Push the button Read and save to WDF file… , insert the .wdf file name and the path where to save the wdf file.
-
Page 6: How To Upgrade The Firmware
MPR30 Manager How to upgrade the firmware Select FW upgrade panel Push the Browse button and select the upk file Put the receiver in bootloader mode: power on the MPR30 keep pushing both the arrow bottons). When the receiver is in bootloader mode, all the led in the front panel are turn on. - Page 7 How to install RX Manager Run the executable file (i.e. RX Manager (MPR30) Setup vx.x.x.exe) and follow the installation instructions. WARNING: If it is the first installation and Wisycom USB driver is not already installed in the PC, please see Wisycom Driver section.
- Page 8 check item Controller USB device: if Wisycom Device is present, then the USB Wisycom Driver of UPK300 is installed. Otherwise it is necessary to install the driver. How to install the driver for USB interface of UPK300 ...
- Page 9 COM and LPT ports: if MSP-MPR30ENG – CDC or MSP-MPR30ENG – CDC is present, then the USB Wisycom Driver of MPR30 is installed. Otherwise it is necessary to install the driver. How to install the driver for USB interface of MPR30 ...
- Page 10 Update the Driver: the following windows appears Select Search for the driver on the computer, and select the Wisycom folder where the MRP30 manager is installed C:\Program Files (x86)\Wisycom\ENG RX Manager (MPR30) SERVICE\Driver\MPR30...
- Page 11 Confirm pushing Next button For Windows 8 platform, if you have problem during the installation (ex. the INF file is not correct,….) please see section “How to install Wisycom Driver on Windows 8”. Platforms Supported Microsoft Windows XP SP3 (32-bit and 64-bit )
- Page 12 MPR30 Manager How to install Wisycom Driver on Windows 8 Access to the main Charm Bar moving the cursor to the bottom right corner and win + I press Setting Charm or press The Settings charm menu will appear.
- Page 13 One of the items is to Disable driver signature enforcement. Press number 7 or F7 to continue booting to Windows 8 with digital sign enforcement disabled. Install Wisycom Driver as indicate in the Wisycom driver section. When the Windows security alert appears (see next window), choose “Install this driver...
