WisyCom MCR54 Series User Manual

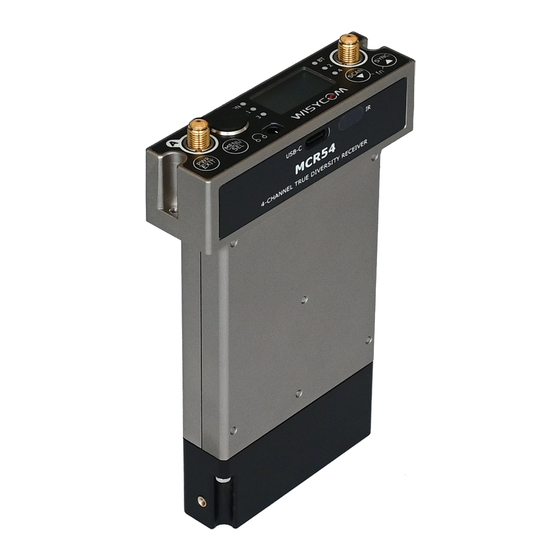

Multi-band quad true diversity camera receiver
Hide thumbs
Also See for MCR54 Series:
- Quick user manual (2 pages) ,
- Quick start manual (2 pages) ,
- User manual (32 pages)
Subscribe to Our Youtube Channel
Related Manuals for WisyCom MCR54 Series
Summary of Contents for WisyCom MCR54 Series
- Page 1 MCR54 User Manual Multi-band Quad True Diversity Camera Receiver rev.6 (reference FW 1.3) Date: 16 September 2020...
- Page 2 MCR54 User Manual AFETY INSTRUCTION Read this safety instruction and the manual first Follow all instructions and information. Do not lose this manual. Do not use this apparatus under the rain or near the water. Do not install the apparatus near heaters or in hot environments, do not use outside the operating temperature range.
- Page 3 Modular configurations for stand-alone or slot-in formats in many Cameras or Audio Devices Monitor & control through USB C or Bluetooth 5 (long range) on Wisycom Manager 2.2 (computer SW) High contrast OLED display and 4 buttons enable quick manual setup ...
- Page 4 MCR54 User Manual One of the milestones in the design of the MCR54 is unprecedented reliability: most of the circuitry of the receiver is independent one from each other. Above a schematic with an overview of main receiver functions. RF layout: For each antenna the RF signal is split in 4 to receiver 1,2,3 and 4 (antenna A and antenna B) with a wide band splitter.
- Page 5 MCR54 User Manual Audio Layout As shown on the above schematic, MCR54 provides the following audio signals: HP [HEADPHONE]: an analog monitor audio output to headphone 3.5mm jack socket. Thanks to the “Setup>Headphone” menu the user can select which of the 4 receivers he wants to listen to and can adjust the volume from 0 to -24 step 1dB.
-
Page 6: Product Overview
During menu navigation push this button to move-down and select the previous item. ⓫ “Arrow up/SYNC” BUTTON Push and keep this button to start a synchronization with a Wisycom transmitter (follow instructions on display). Before starting synchronization IRDA must be enabled on Wisycom transmitter. -
Page 7: Display Menu
MCR54 User Manual Display menu Using navigation buttons it is possible to quick & easy navigate through the menu: - SEL/Exit to enter or exit a level - Arrow up/down to circle on the same level - To save the modified parameters press and hold the SEL /MENU button ❾... - Page 8 MCR54 User Manual Infrared: By activating the infrared, you can connect the MCR54 to other devices (such as Wisycom Transmitter MTP40S/MTP41S/MTH410/MTB40S o the programmer UPKmini) Preset: The preset menu has the following two submenus: Act: that allows to verify the active preset ...
-
Page 9: Setup Menu
MCR54 User Manual Setup Menu Active RXs RX1 RX2 RX3 RX4 Name "8 characters max" Frequency Group / Channel and Frequency selection Ch. Modulation Wide/Narrow (HD) Compander ENR Wis/ENC Wis… Sq. mode OFF/Long Range/Normal/User Edit RX1/RX2/RX3/RX4 LINE level AES3 level Audio Out Sign. - Page 10 MCR54 User Manual Power on Allow to enable/disable each single receivers: Edit RX (same menu for each of the 4 receivers) Edit RX: Name Selecting Name, it’s possible to edit the name of the receiver (12 characters). The number of visible characters depends on the type of characters used (uppercase or lowercase characters).
- Page 11 RF squelch to a much lower level. Tone Squelch MCR54 is able to detect a digital tone squelch generated by a Wisycom transmitters (ex. MTH410/MTH400/MTP40S/ MTP41S/MTB40S/RPU500). Tone squelch ON: when the tone squelch is enabled the audio is muted unless the correct carrier is detected.
- Page 12 MCR54 User Manual Edit RX> Audio Out: Sig. Phase To change audio phase of 0 deg. or 180 deg. Edit RX> Audio Out: Cal. Tone If Cal. tone is enabled, a calibration tone is transmitted from the outputs of the receiver and the audio LED of the relative RX become blue (to turn off the calibration tone, go on the menu Advanced >...
- Page 13 MCR54 User Manual Scan The MCR54 allows the user to scan using the Group/Channel frequency file in the unit or by scanning a manual selection of frequencies. Select which type of scan by going into the scan menu. Once started a channel scan operation the receiver asks for group to be used*.
- Page 14 MCR54 User Manual The Frequency scan allows to select a range of frequency to scan, between a maximum and a minimum value and the step with which to perform the scans. Press and hold the SEL button to confirm. Then it prompts to turn off all transmitters. Press SEL to start the scan! Freq After few seconds, scan results are displayed on a chart in...
- Page 15 MCR54 User Manual Off timeout is the time until the display stays on (after which, the display will automatically turn off). If Off timeout is set to OFF the display never turn off automatically. Advanced audio: This menu allows to decide the type of audio outputs (digital AES3 or analog) and what receivers come out to the connectors.
- Page 16 MCR54 User Manual With SLK54-SX it is possible to enabled AES outputs only on AUX (Top Feed). Analog Base outputs can be configured with any combination of 2 receivers (RX1+RX2, RX2+RX3, …) AUX (on TOP FEED) MAIN (on SLK54-SX) CHANNEL1 CHANNEL2 CHANNEL1+ CHANNEL1-...
-
Page 17: Accessories And Parts
MCR54 User Manual ACCESSORIES AND PARTS BPA54: Stand alone socket Hirose HR10A-F CHANNEL1+ CHANNEL3+ CHANNEL1- CHANNEL3- +VDC CHANNEL2+ CHANNEL4+ CHANNEL2- CHANNEL4- SLK54-SX: Sony slot-in "Slot-in" kit (upper flange +rear-panel) for Sony camera. SUBD-15pin: CH1 Anal (unbalanced) CH2 Anal (unbalanced) NOTE: not all Sony cameras has the internal double pin enable. - Page 18 MCR54 User Manual CABLES AF cable (50 cm), mini XLR-5F / 2 XLR-3M CAM50-3 connectors AF cable (50 cm), mini XLR-5F / 1 XLR-3M connectors CAM50-41 Line 1 feed XL3-M (TO BE USED FOR AES3 CAMERA INPUT) External power feeding cable, hirose/raw wires (50 CDC34 AC/DC Power Supply, Switch Mode with Hirose 4 pin connector (to use one “desktop”...
- Page 19 MCR54 User Manual ANTENNAS Whip antenna UHF 470-608 MHz AWS-BK SMA connector, black cap Whip antenna UHF 572-694 MHz AWS-YL SMA connector, yellow cap Whip antenna UHF 670-870 MHz AWS-GN SMA connector, green cap Whip antenna UHF 820-1160 MHz AWS-BL SMA connector, blue cap Whip antenna UHF 1060-1300 MHz AWS-RD...
-
Page 20: How To Update The Firmware
How to update the firmware: Connect the MCR54 to the PC through the USB-C cable Check if the version of Wisycom Manager installed in your PC is the latest version. If not, upgrade to the new version Run Wisycom Manager... - Page 21 MCR54 User Manual ONFORMITY FCC Conformity This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
- Page 22 MCR54 User Manual RAWING...
-
Page 23: Specifications
Noise Reduction system ENR / ENR-1.2 (Wisycom Extended-NR) , noise optimized ENC / ENC-1.2 (Wisycom Extended-NC), voice optimized & with reduced pre-emphasis ENS (for live application) Others, compatible with most systems, thru an internal DSP emulation of SA572, SA575 and Rms... - Page 24 MCR54 User Manual Wisycom Srl Via Tiepolo, 7/E 35019 Tombolo (PD) – Italy Email:sales@wisycom.com www.wisycom.com...
