WisyCom MPR30-IEM User Manual page 13

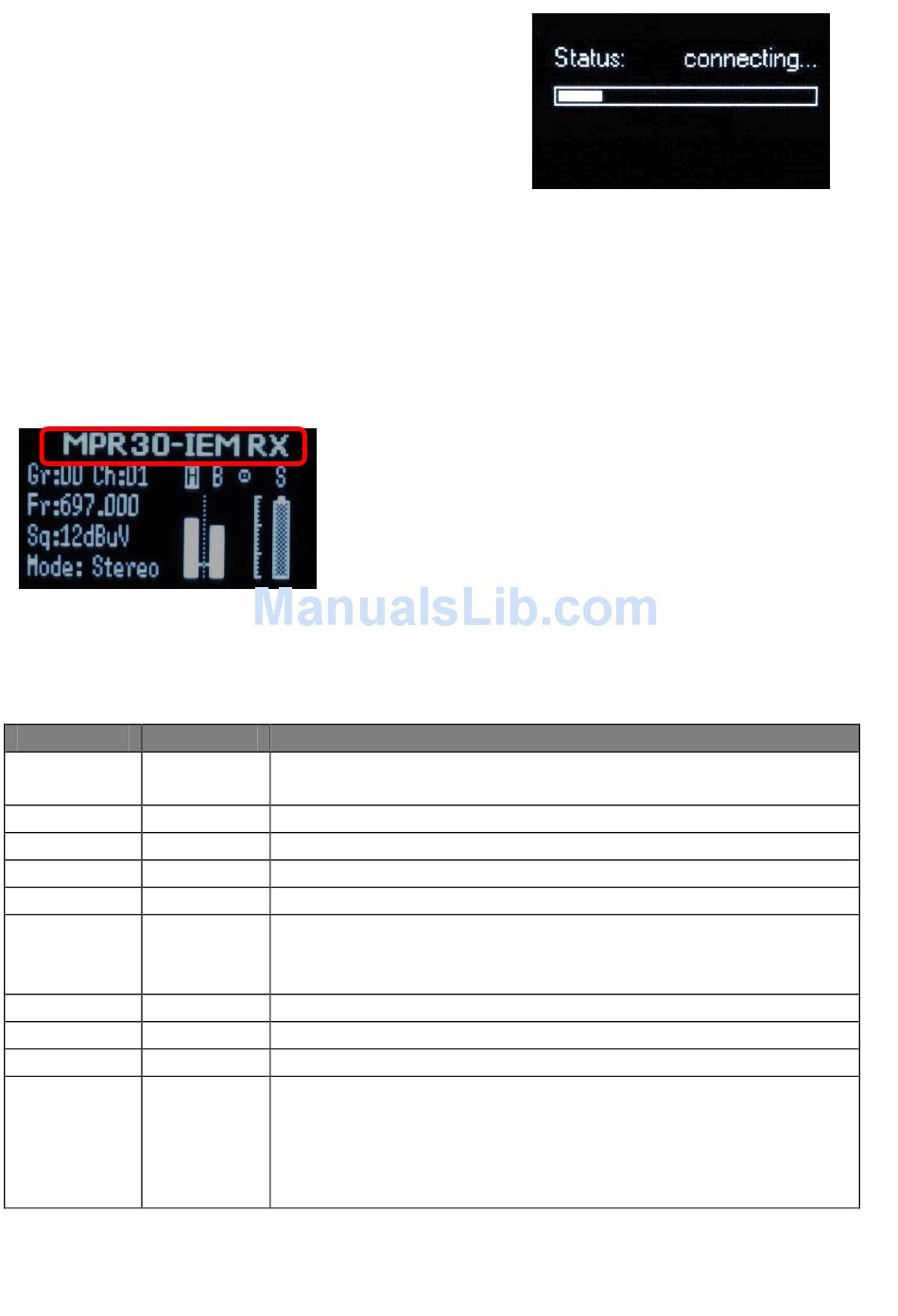

Sync menu
The SYNC function is useful to tune a transmitter
on the same frequency of the receiver via the IR
interface. Before starting the sync function tune the
receiver on desired channel, manually or using the
SCAN utility. After this, enable the IR interface on
the transmitter. Now press UP&EXIT buttons together or
enter in the Sync menu to start the SYNC function. Keep the IR window of the transmitter in
front of the IR window of the receiver and, as soon as the connection is done, the receiver will
send to the transmitter all the information needed.
If the operation is not possible, (i.e. the frequency range of the transmitter is not
compatible with the frequency of the receiver), the display will show an error message.
If the transmitter has the function "NAME" enabled, when the sync function is completed it
will show the same name of the synchronized receiver.
Name menu
character and push SEL button to switch to the next character.
Info menu
the INFO function shows many important features or information of MPR30-IEM receiver:
PARAMETER example
MPR30-
Model
IEM
Range 470-700
FW v0.2
HW V1
Serial Q125635
Option N
Battery 3.70 Volt
BL V0.4d
App V0.77d
Errors 4
* The FW (Firmware version) recaps BL (Bootloader Version) and App (Application version).
The name menu allows to change the name of the
receiver (12 case-sensitive alphanumeric characters).
This is the name displayed in the top of the Status display
and it is the name sent to the transmitter with the sync
function (for the transmitter with this advanced
capability).
Use the UP/DOWN buttons to change the selected
MEANING
Wisycom receiver model
Frequencies range of working
Firmware version*
Hardware version
Serial number
MPR30 Options
N= freq. range 470 ÷ 700 MHz,
M= freq. range 566 ÷ 798 MHz
Batteries voltage
Bootloader version
Application version
Number of errors.
If the number of errors is > 0 push SEL button to enter on the
Errors list. For each error a brief description and the error code
is showed. For more information, please see the Error List
section.
