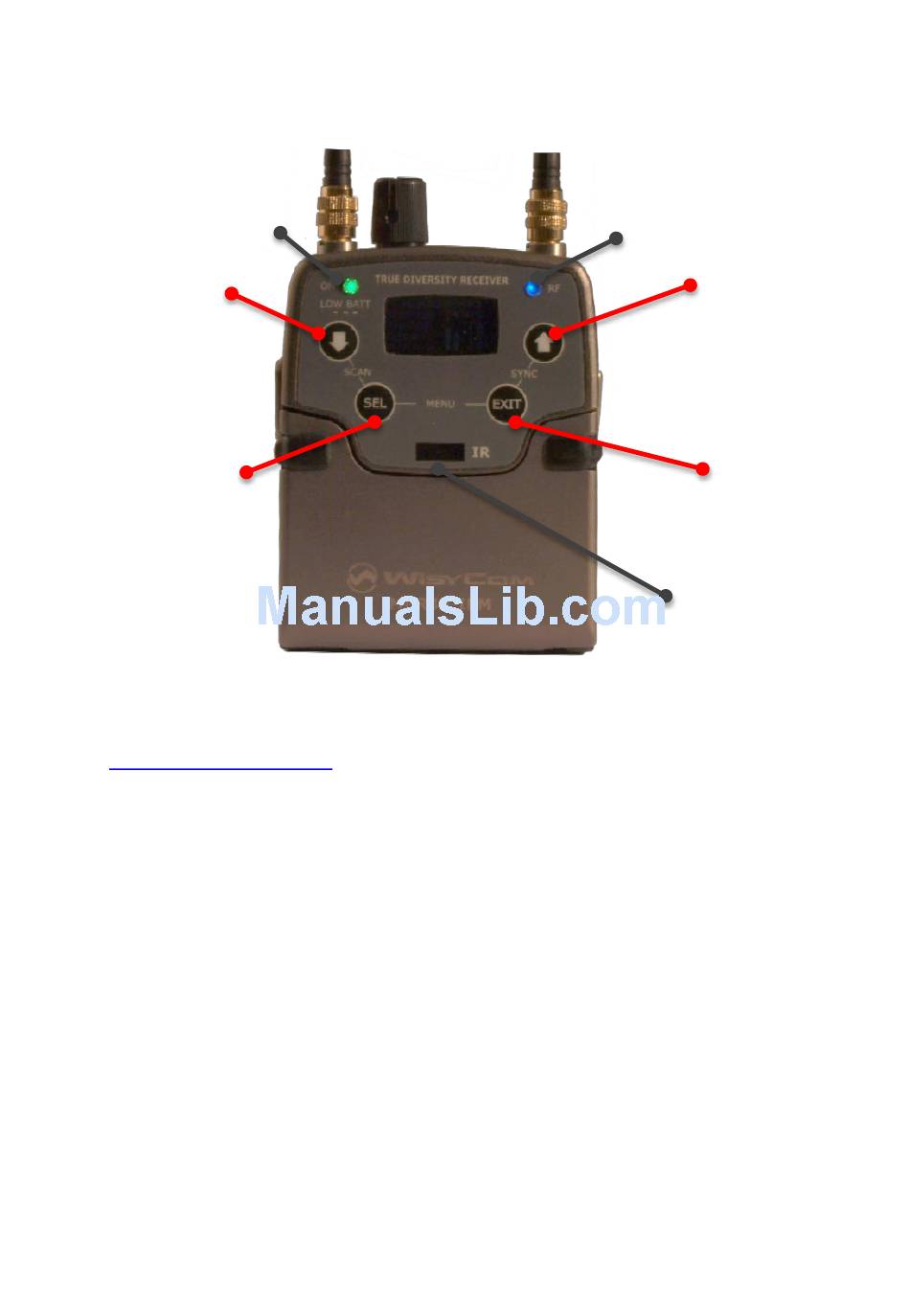

Front panel

MPR30-IEM allows an easy and quick configuration using buttons, RGB LED's and an OLED
display.
ON Led Indicator
SCAN/DOWN
Button
MENU/SELECT
Button
OLED Display
The receiver has a high contrast display. Pushing one of the 4 buttons while the receiver is
active (but the display is off), turn on automatically the display. After a time-out user setting
(see Display>Off timeout
SEL & EXIT Buttons
Push the 2 buttons together to enter on the function menu
SEL Button
Push this button to navigate function menu's and keep pushing to save the chosen setup
EXIT Button
Push this button to turn off the display.
During menu navigation push this button to exit from current menu (escape function).
SYNC/UP Button
Push and keep this button to start a synchronisation with a Wisycom transmitter (follow
instructions on display). Before starting synchronization IRDA must be enabled on Wisycom
transmitter.
During menu navigation push this button to move -up and select the previous item.
SCAN/DOWN Button
Push and keep this button to start the automatic scan.
During menu navigation push this button to move-down and select the previous item
5
menu) the display turns off automatically.
RF Led Indicator
SYNC/UP
MENU/EXIT
Button
Infrared Interface
(IR)
