RIEF DESCRIPTION
MPR30-IFB is a compact true diversity receiver mono, designed for professional in-ear
monitoring applications. This receiver features a real TRUE DIVERSITY configuration along with
a unique wideband tuning range up to 232 MHz. The audio processing is mono based.
The output audio stage is especially design to have maximum audio peak-dynamic of 200 mW.
MPR30-IFB is designed to be:

"easy & quick to use" thanks to
o
automatic setup functions (i.e. frequencies, scan for best channels),
o
remote configuration utilities (thru infrared or micro-USB interface) using
Wisycom MPR30 RX Manager application
o
OLED display with intuitive context menu navigation

"extremely flexible", with an incredible frequency agility up to 232MHz
o
MPR30-IFB-N: 470/700 MHz (TV ch 21/49)
o
MPR30-IFB-M:566/798 MHz (TV ch 33/61)

"best in class performances", thanks to the latest Wisycom technology the unit has
extreme RF sensitivity and immunity and superb audio quality

"a durable & upgradable investment", thanks to the very robust design (aluminium
housing) and the possibility to upgrade/enhance units performances.

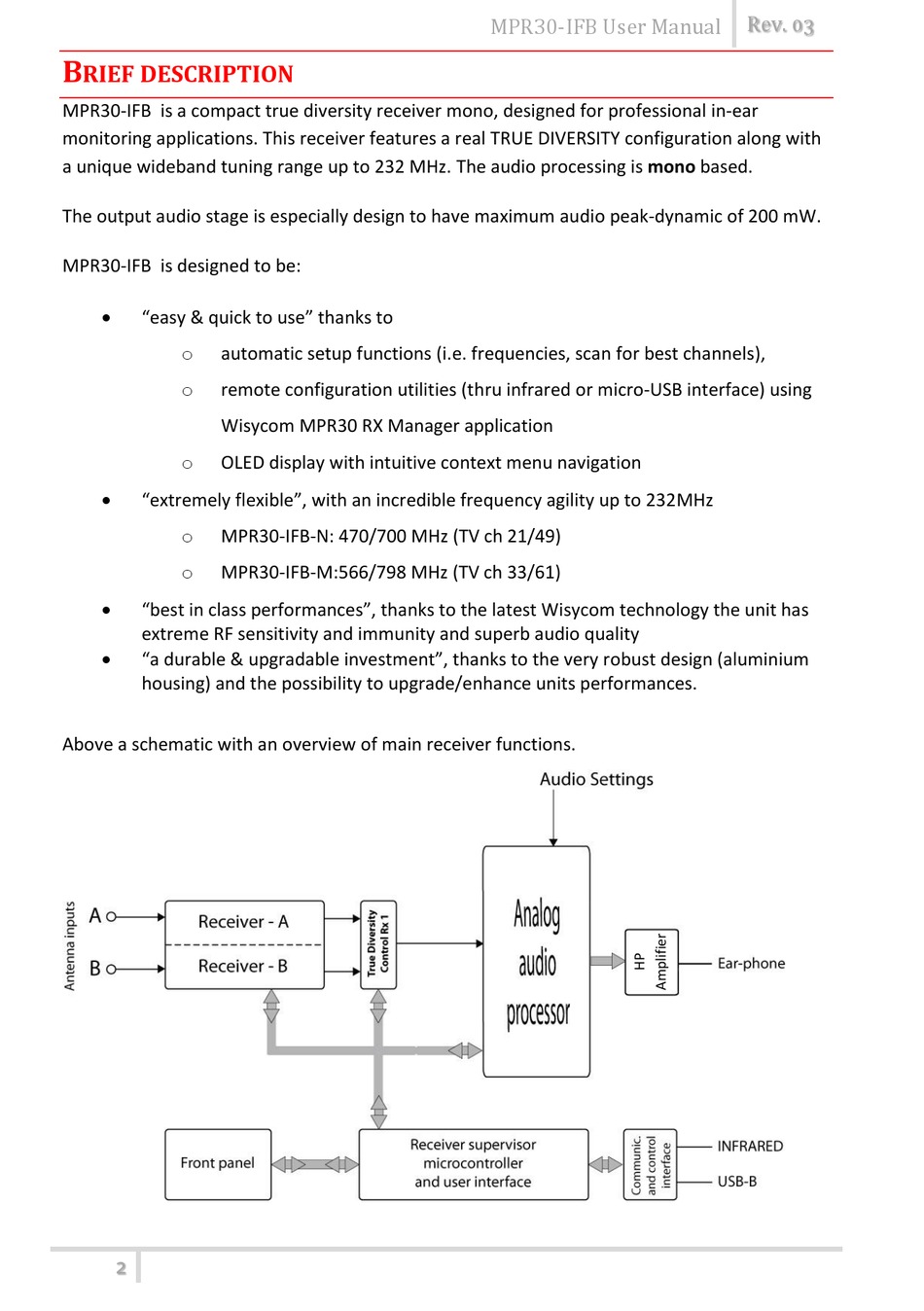

Above a schematic with an overview of main receiver functions.
